Xerox VersaLink B7025 Service Manual

April 2017
5-93
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.40
Parts Lists
Launch Issue

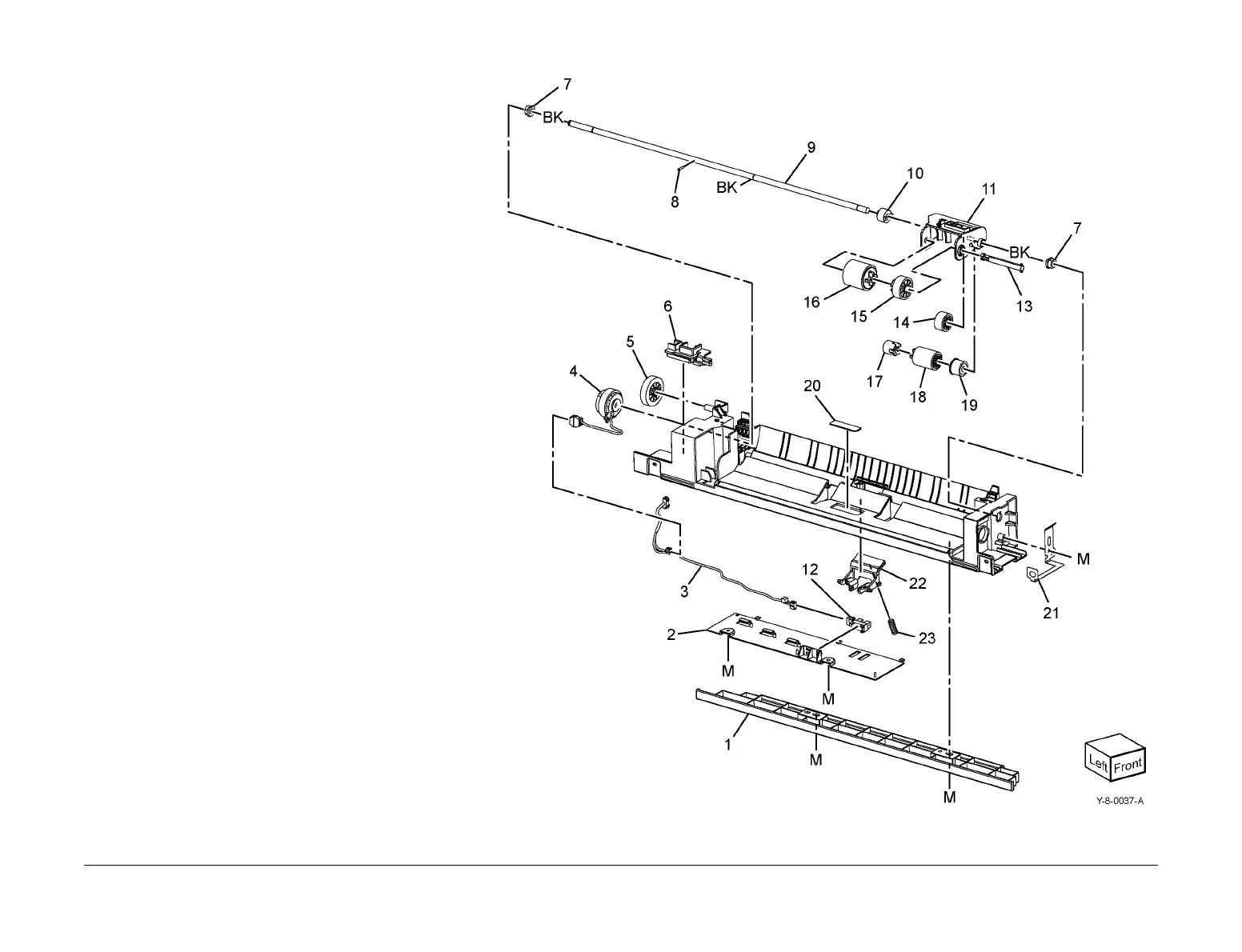

PL 70.40 Bypass Tray Lower Feeder
Item Part Description
1 – Bypass tray low chute (Not Spared)
2 – Lower cover (Not Spared)
3 – Bypass tray harness assembly (Not
Spared)
4 121K56480 Bypass tray feed clutch (CL75-001)
5 – Drive gear 22T (Not Spared)
6 – Connector cover (Not Spared)
7 – Bearing (Not Spared)
8 – Pin (Not Spared)
9 – Shaft (Not Spared)
10 – Friction clutch assembly (Not
Spared)
11 – Nudger holder (Not Spared)
12 930W00123 Bypass tray no paper sensor (Q75-
100)
13 – Shaft (Not Spared)
14 – Idler gear 37T (Not Spared)
15 – Nudger gear 46T (Not Spared)
16 022K78481 Bypass tray nudger roll (See
NOTE) (REP 80.16)
17 – One way clutch (Not Spared)
18 022K77450 Feed roll (REP 80.16)
19 – Feed gear 30T (Not Spared)
20 – Pad (Not Spared)
21 – Earth plate (Not Spared)
22 019K12820 Retard pad (See NOTE) (REP
80.17)
23 – Spring (Not Spared)
NOTE: HFSI. To reset the HFSI counter, refer to dC135.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
