Xerox VersaLink B7025 Service Manual

April 2017
4-52
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 10.2, REP 10.3
Launch Issue
Repairs and Adjustments
14. Remove the exit 2 roll, Figure 8:
a. Move, then release the exit roll in the direction of the arrow (1).
b. Remove the exit roll (2).

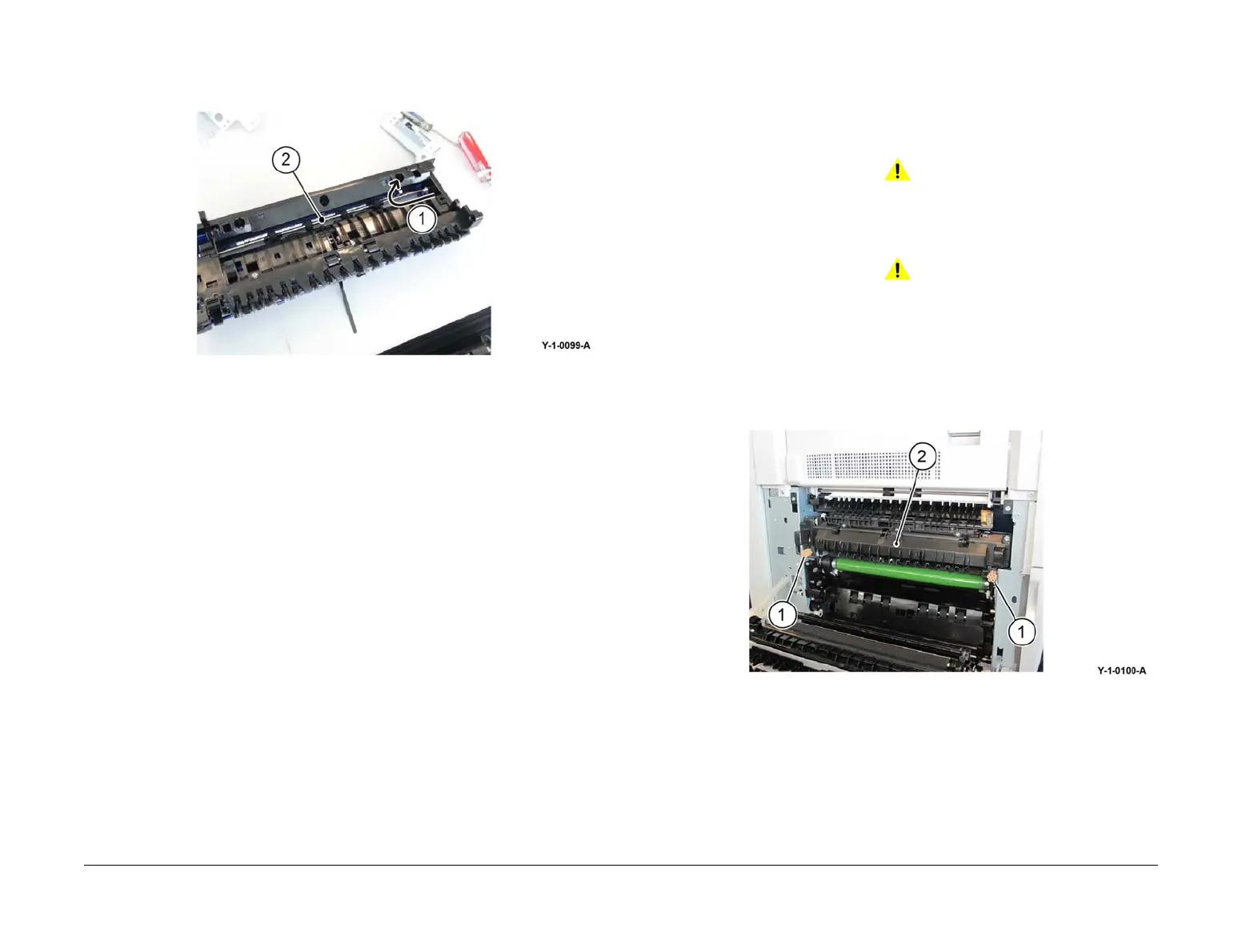

Figure 8 Exit 2 roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the paper guides are orientated correctly, refer to Figure 1.
REP 10.3 Fuser Removal
Parts List on PL 10.05
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Do not touch the fuser while it is hot.
1. Open the LH transport assembly.
2. Remove the fuser, Figure 1:
a. Loosen two screws (1).
b. Remove the fuser(2).
Figure 1 Fuser removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If a new fuser is installed, enter dC135 HFSI Counter. Ensure that the HFSI counters that
follow have been reset:
• Chain Link: 954-850
• Chain Link: 954-851
NOTE: Both counters should be automatically reset when a new fuser is installed.
