Xerox VersaLink B7025 Service Manual

April 2017
5-21
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.65
Parts Lists
Launch Issue

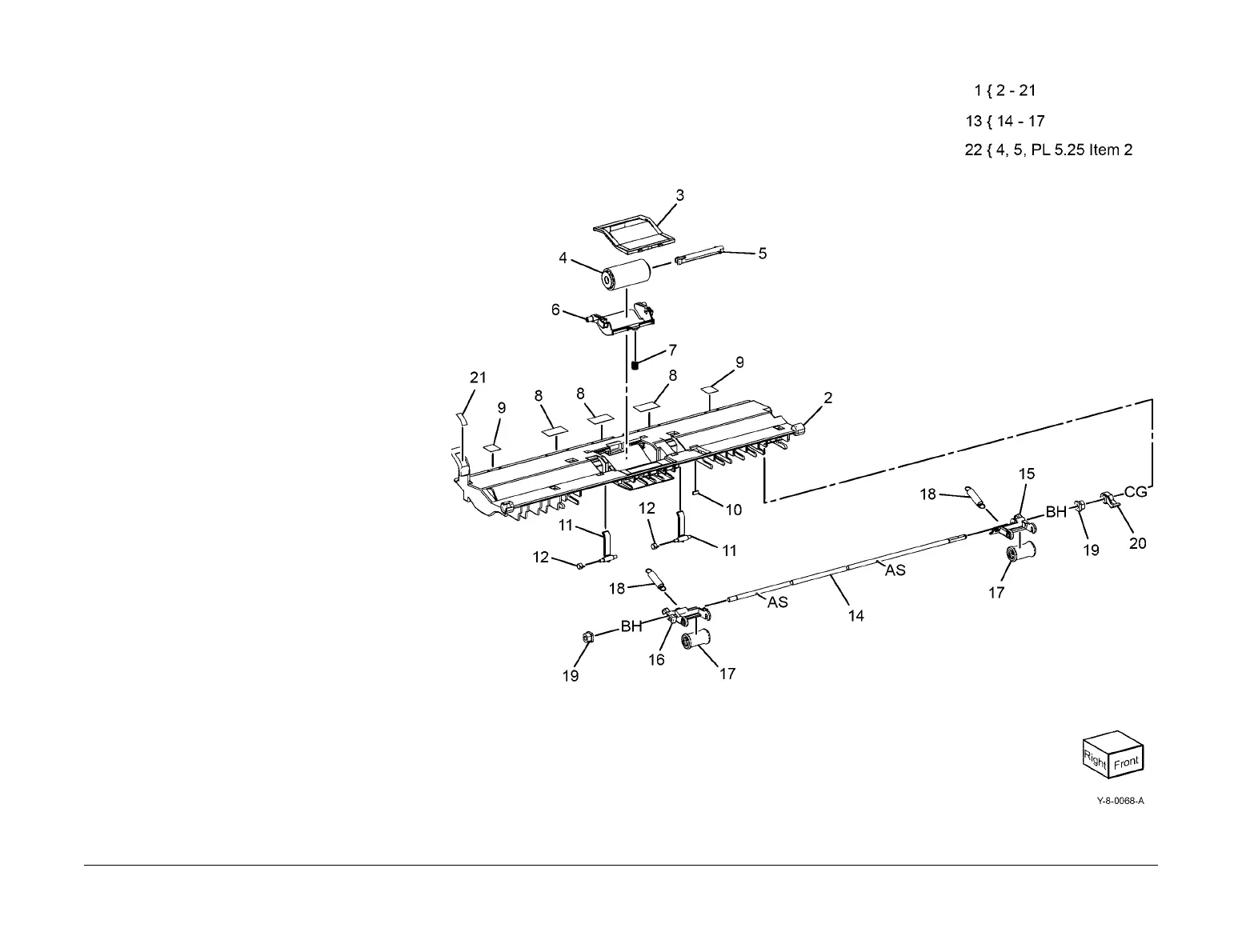

PL 5.65 Retard Chute
Item Part Description
1 – Retard chute assembly (REF: PL
5.45 Item 3)
2 – Retard chute (P/O PL 5.65 Item 1)
3 848K99190 Retard CRU cover assembly (P/O
PL 5.65 Item 1)
4 – Retard roll assembly (P/O PL 5.65
Item 1) (see NOTE) (REP 5.19)
5 – Retard shaft (P/O PL 5.65 Item 1)
6 – Retard housing (P/O PL 5.65 Item
1)
7 – Retard spring (P/O PL 5.65 Item 1)
8 – W seal (P/O PL 5.65 Item 1)
9 – S seal (P/O PL 5.65 Item 1)
10 – Pad (P/O PL 5.65 Item 1)
11 – Set gate (P/O PL 5.65 Item 1)
12 – Torsion set spring (P/O PL 5.65
Item 1)
13 – Exit nip roll (P/O PL 5.65 Item 1)
14 – Exit roll shaft (P/O PL 5.65 Item 13)
15 – Exit R holder (P/O PL 5.65 Item 13)
16 – Exit F holder (P/O PL 5.65 Item 13)
17 – Exit nip roll (P/O PL 5.65 Item 13)
18 – Exit spring (P/O PL 5.65 Item 1)
19 – Bearing (P/O PL 5.65 Item 1)
20 – Exit cam 2 link (P/O PL 5.65 Item 1)
21 – Retard label (P/O PL 5.65 Item 1)
22 604K97930 DADF feeder kit
NOTE: HFSI. To reset the HFSI counter, refer to dC135.
