Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
IQS 1
Imaqe Quality
Launch Issue
IQS 1 Solid Area Density and Tone Reproduction
Documents
Test patterns: 82E2000 (A3 and 11x17) 82E2010 (A4) 82E2020 (8.5x11) and the solid area
density scale, 82E8230 (SIR 542.00) for reference.
Specification
Copy
Compare the copies of one of the above 82E series test patterns, Figure 1, made from the doc-
ument glass, with the solid area density scale, 82E8230 (SIR 542.00):
• The density of the 2.1; 2.3; and 2.5 areas must be as dark or darker than the 1.3 refer-
ence, but less than 1.5.
• The 3.0, 3.3 and 3.4 text areas should all be visible.
• The 4.1 line pair should be visible.
• The 2.0, 2.2 and 2.4 squares should be darker than the original document.
• The bullseye targets should be clearly reproduced.
Print
Compare a print of the internal test pattern 53 with the solid area density scale, 82E8230 (SIR
542.00). The density of the solid areas must be as dark or darker than the 1.3 reference, but
less than 1.5.
Corrective action
If the solid area density specification is not met, perform the IQ2 IOT IQ Defects RAP.

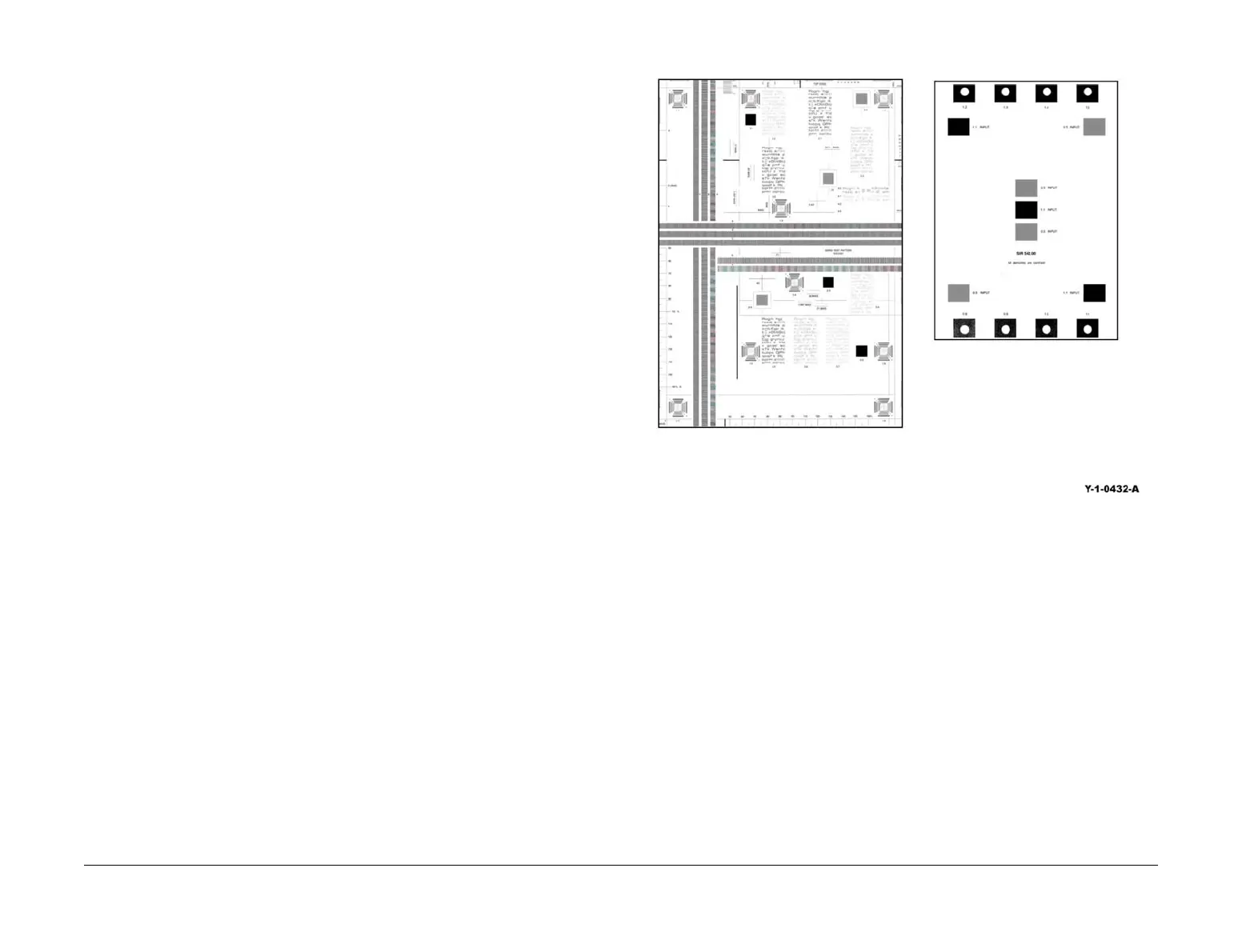

Figure 1 Test patterns
82E2000
SIR 542.00

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
