Xerox VersaLink B7025 Service Manual

April 2017
5-60
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 20.05
Launch Issue
Parts Lists

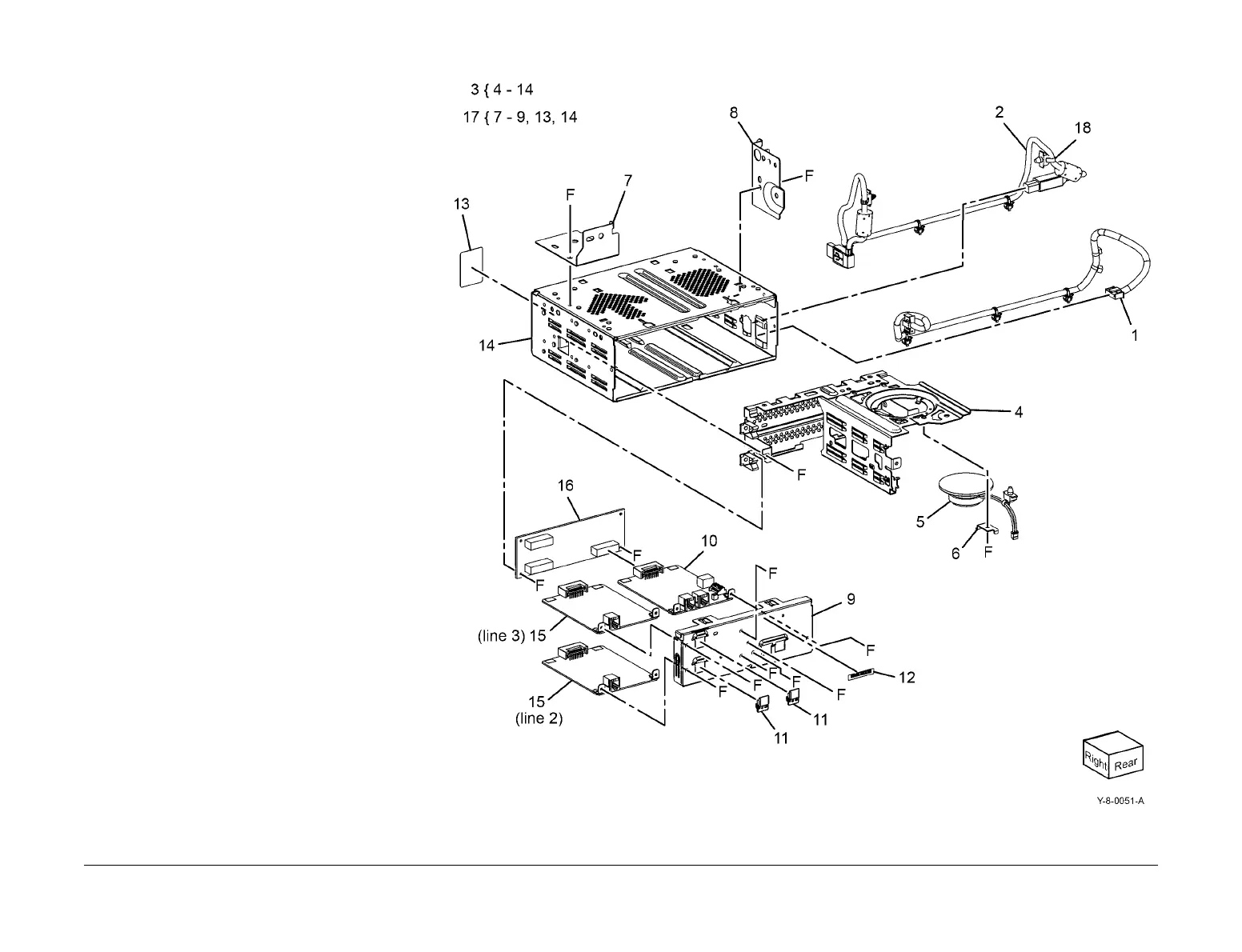

PL 20.05 Fax
Item Part Description
1 952K19380 Fax harness
2 117K48410 USB harness
3 – Fax chassis assembly (Not Spared)
4 – Riser bracket assembly (P/O PL
20.05 Item 3)
5 – Fax speaker (P/O PL 20.05 Item 3)
6 – Speaker bracket (P/O PL 20.05
Item 3)
7 – Fax L1 bracket (P/O PL 20.05 Item
3)
8 – Fax R1 bracket (P/O PL 20.05 Item
3)
9 – Fax panel (P/O PL 20.05 Item 3)
10 960K79260 Line 1 Fax PWB (XC)
– 960K81230 Line 1 Fax PWB (XE)
– 960K87690 Line 1 fax PWB (ARZ)
11 – Snap fax cover (P/O PL 20.05 Item
3)
12 – Traceability label (P/O PL 20.05
Item 3)
13 – FX2A label (P/O PL 20.05 Item 3)
14 – Fax chassis (P/O PL 20.05 Item 3)
15 960K77540 Line 2/3 fax PWB
16 960K77550 Riser PWB
17 – Fax kit (Not Spared)
18 920W01212 Locking clamp
