Xerox VersaLink B7025 Service Manual

April 2017
4-163
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.3, REP 70.4
Repairs and Adjustments
Launch Issue
REP 70.3 HCF Tray
Parts List on PL 70.45
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Open the HCF tray by pulling the tray forward.
2. Remove all paper from the HCF tray.
3. Using a small screwdriver, or other small, blunt instrument, release the stopper on each
rail of the tray by inserting the screwdriver into the hole of the stopper and pulling the tray
toward you.
4. Remove the HCF tray by pulling the tray forward.
Replacement
1. Slide the two rails into the HCF housing.
2. Line up the rails of the tray with the adjoining rails of the HCF and push the tray into place.
3. Reload the paper.
REP 70.4 HCF Undocking
Parts List on PL 70.45
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Disconnect the HCF power cable from the machine.
2. Pull the HCF away from the machine.

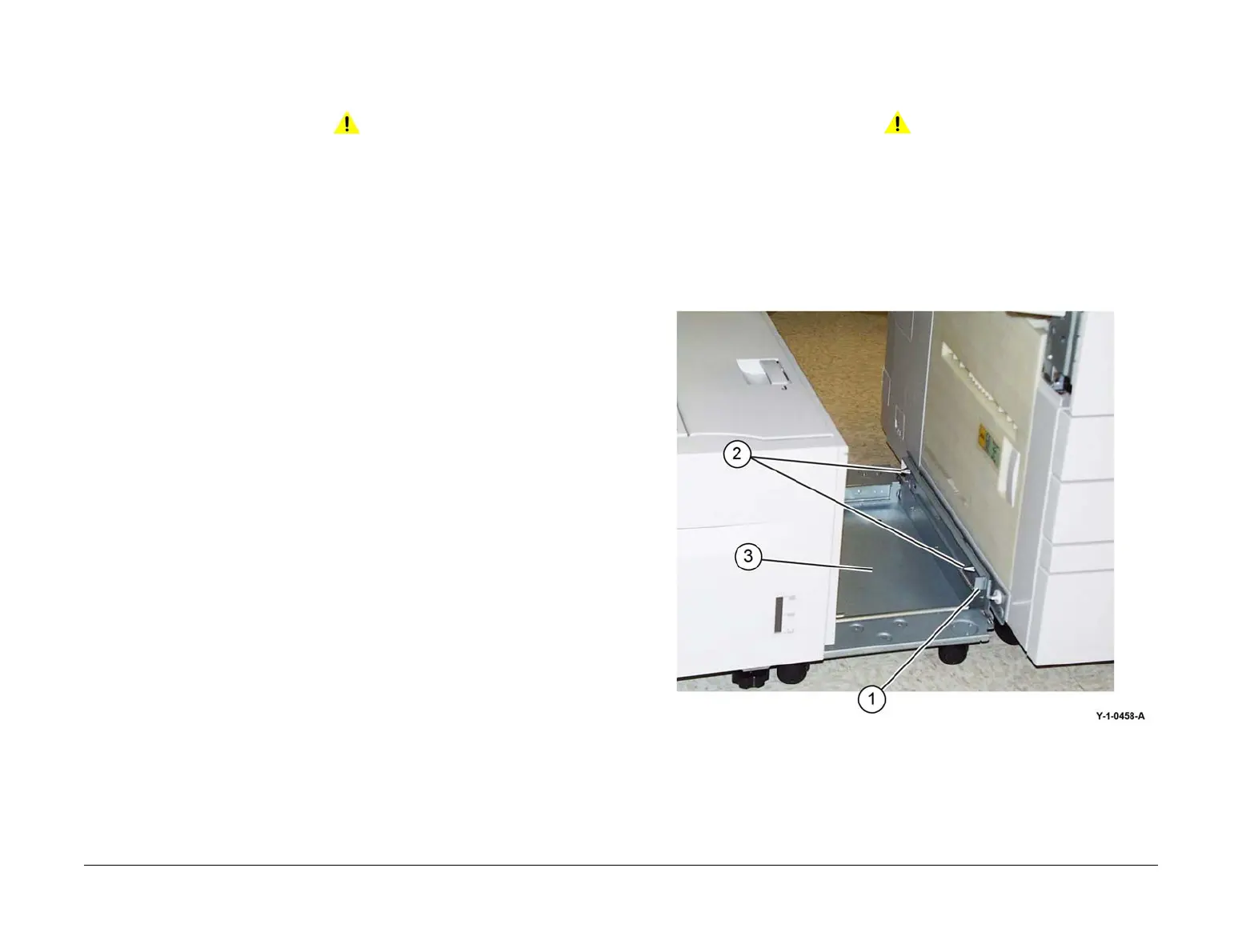

3. Release the docking latch spring lever (1) on the right side of the docking base, Figure 1.
Figure 1 Docking base
4. Undock the HCF from the machine.
