Xerox VersaLink B7025 Service Manual

April 2017
4-212
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.35, REP 80.36
Launch Issue
Repairs and Adjustments
5. Remove the tray 4 feeder assembly, Figure 3:
a. Remove the screw (1).
b. Remove the tray 4 feeder assembly (2).

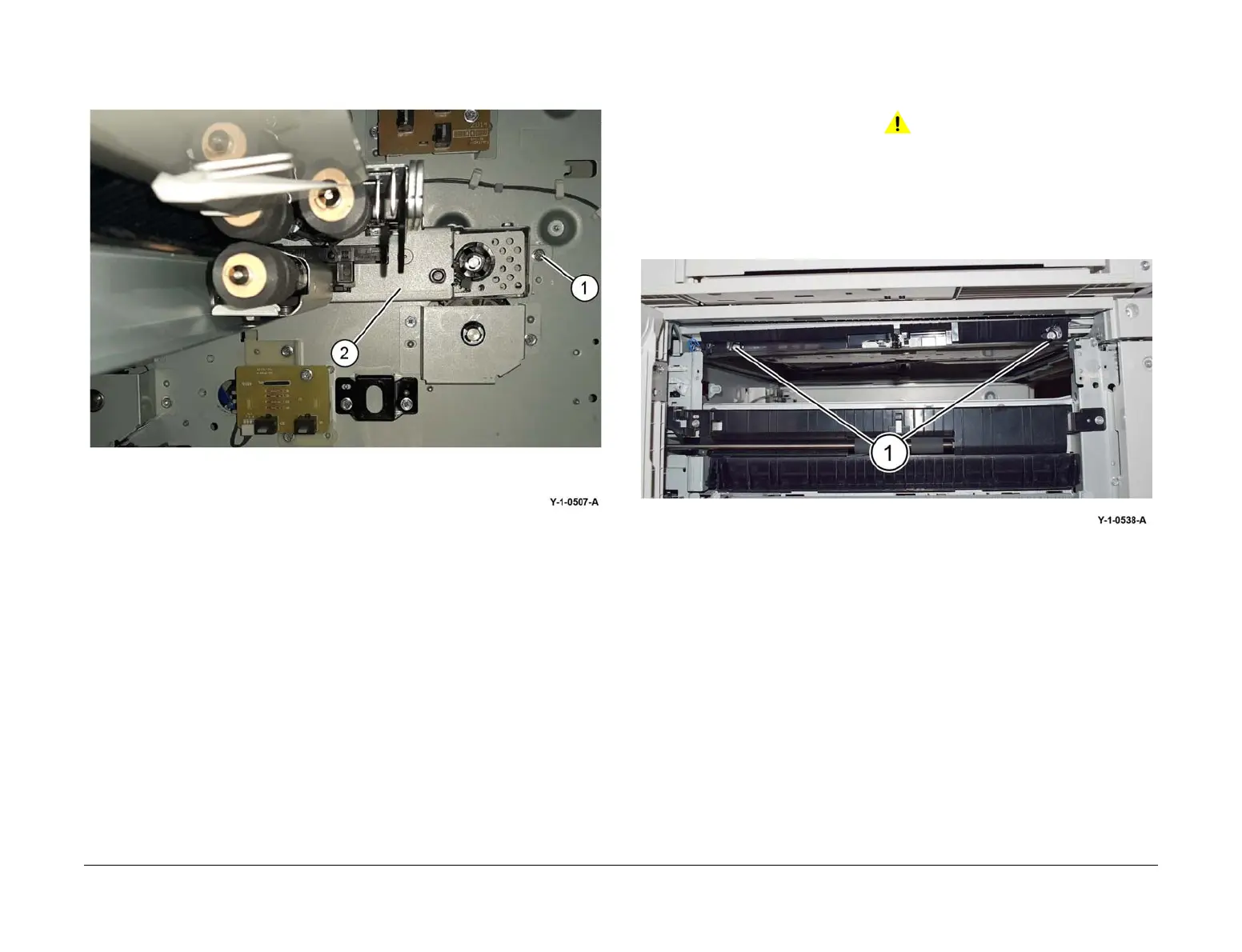

Figure 3 Tray 4 feeder assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new tray 4 feeder assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 954-803.
REP 80.36 Tray 2 Feed Out Sensor (TTM)
Parts List on PL 80.65
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the upper (tray 2) takeaway roll, REP 80.41.
2. Remove two screws (1), Figure 1.
Figure 1 Screw removal
