Xerox VersaLink B7025 Service Manual

April 2017
4-194
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.17
Launch Issue
Repairs and Adjustments
REP 80.17 Bypass Tray Retard Pad
Parts List on PL 70.40
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: A new retard pad and feed and nudger rolls must be installed at the same time. Refer
to REP 80.16.
1. Remove the bypass tray, REP 70.2.
2. Remove the bypass tray low chute, Figure 1:
a. Remove two screws (1).
b. Remove the bypass tray low chute (2).

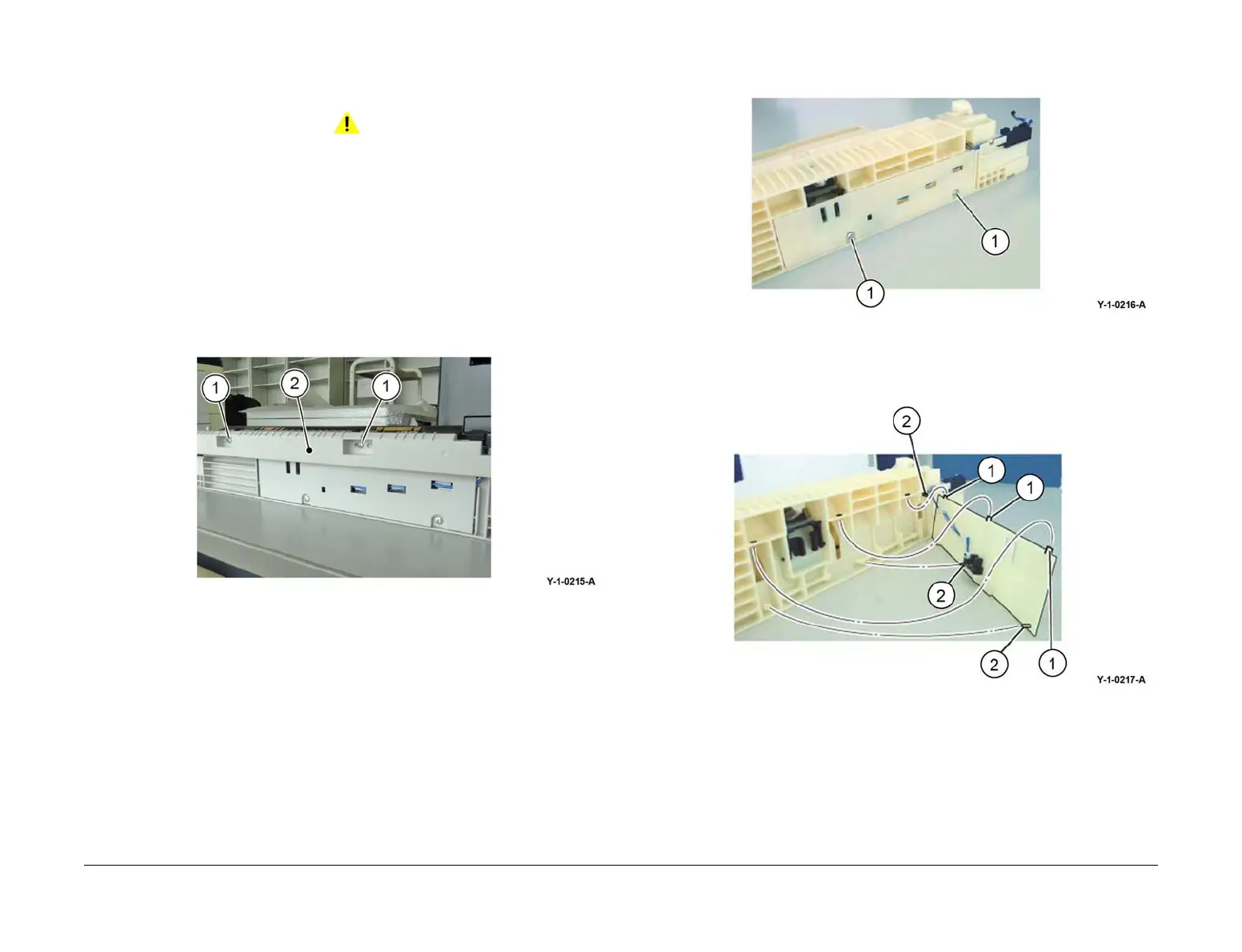

Figure 1 Low chute removal
3. Remove two screws (1) that secure the bypass tray lower cover at the bottom of the
bypass tray, Figure 2.
Figure 2 Bypass tray lower cover
4. Release three hooks (1) and three bosses (2) from the installation holes to open the
bypass tray lower cover, Figure 3.
Figure 3 Bypass tray lower cover removal
