Xerox VersaLink B7025 Service Manual

April 2017
4-193
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.16
Repairs and Adjustments
Launch Issue

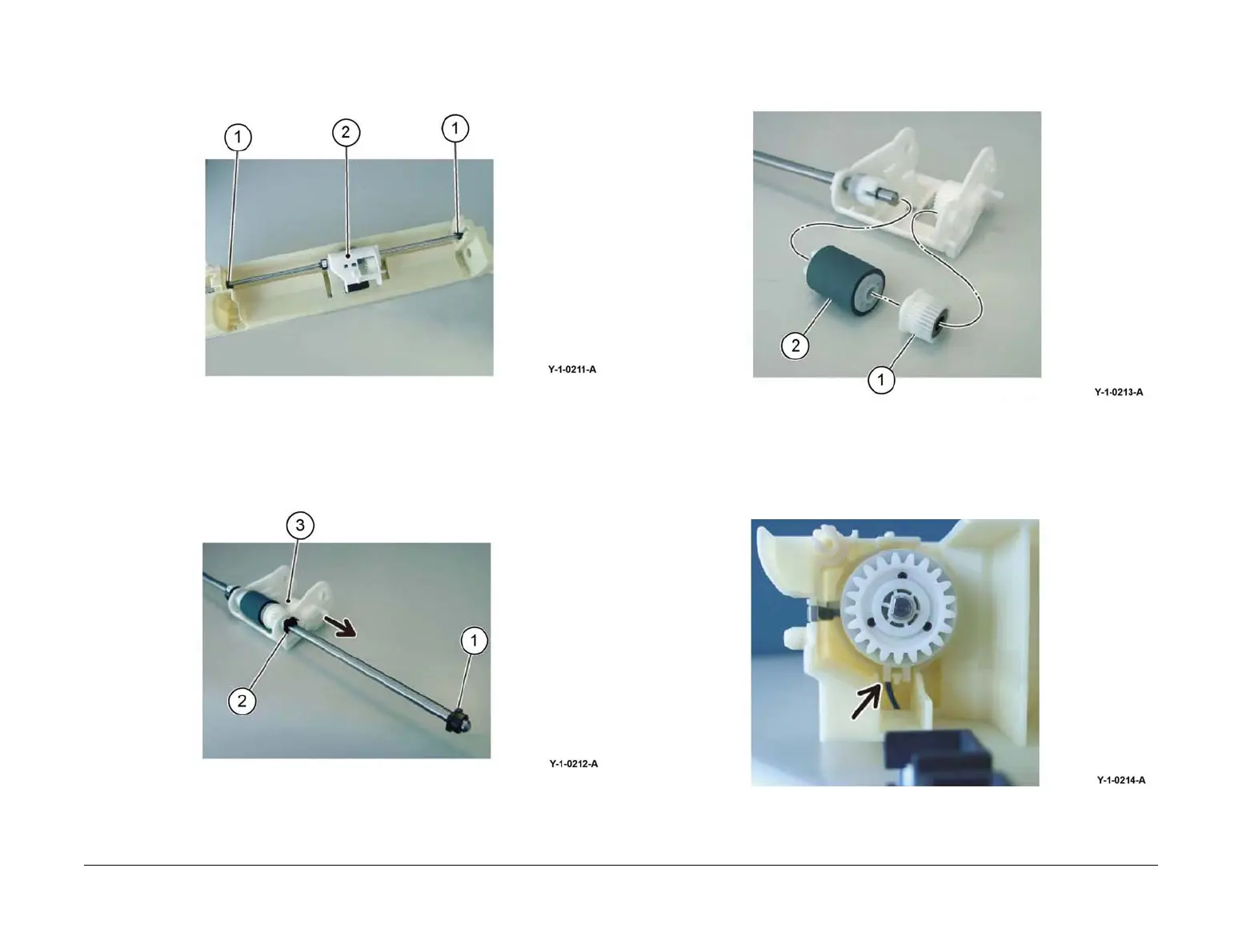

7. Remove the bypass tray feed roll assembly, Figure 6:
a. Remove two E-Clips (1).
b. Remove the bypass tray feed roll assembly (2).
Figure 6 Feed roll assembly removal
8. Move the housing, Figure 7:
a. Remove the bearing (1).
b. Remove the E-clip (2).
c. Move the housing, in the direction of the arrow, to the end of the shaft.
Figure 7 Shaft
9. Remove the bypass tray feed roll, Figure 8:
a. Remove the gear (1).
b. Remove the bypass tray feed roll (2).
Figure 8 Feed roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. When installing the bypass tray feed clutch, align the cutout of the bypass tray feed clutch
with the tab, Figure 9.
Figure 9 Feed clutch alignment
3. If new bypass tray feed and nudger rolls are installed, enter dC135 HFSI Counter. Reset
the HFSI counter 954-805.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
