Xerox VersaLink B7025 Service Manual

April 2017
5-120
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.55
Launch Issue
Parts Lists

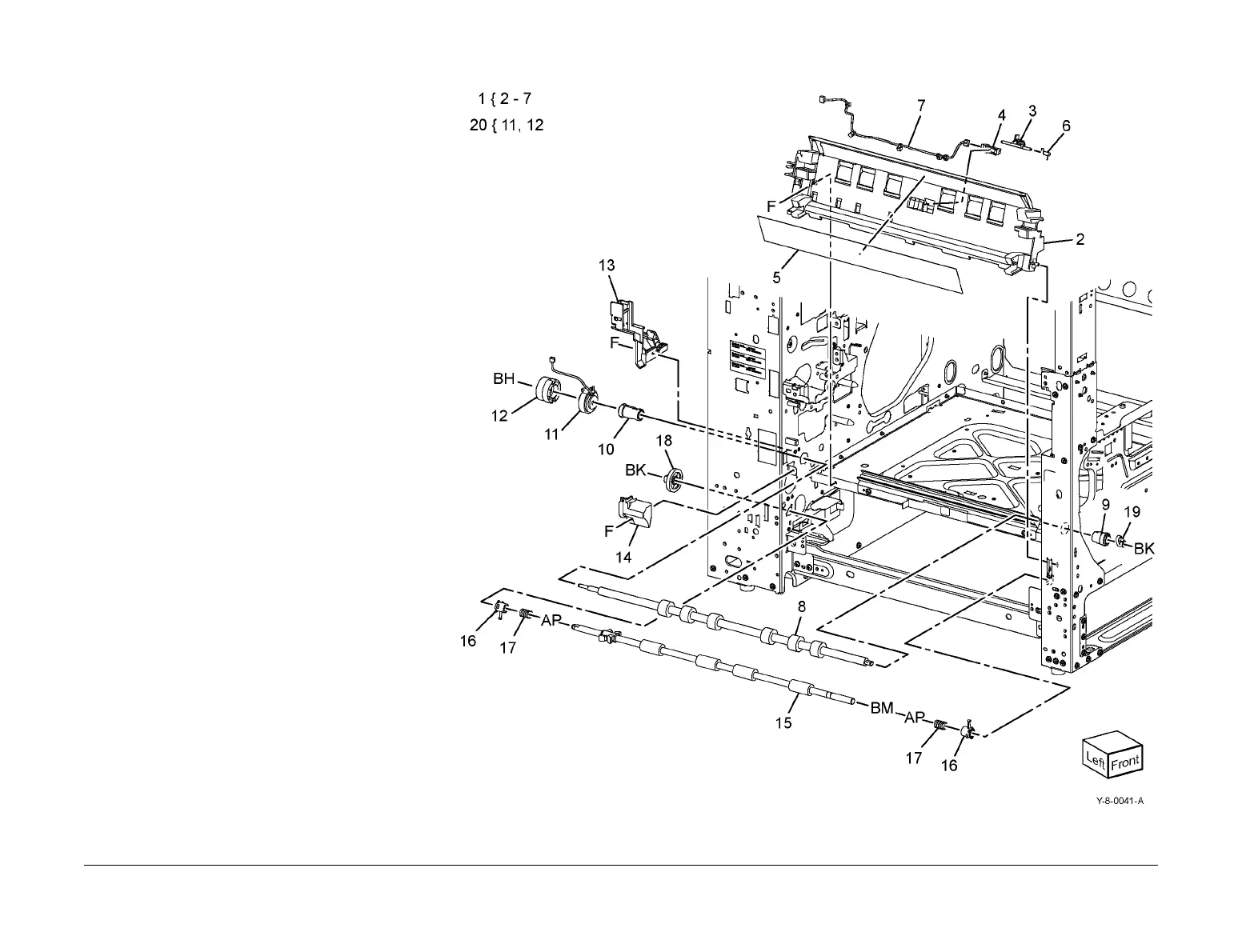

PL 80.55 Registration
Item Part Description
1 859K01541 Registration transport assembly
(REP 80.19)
2 – Registration chute (P/O PL 80.55
Item 1)
3 120E35300 Actuator
4 930W00123 Registration sensor (Q77-104)
5 – Mylar strip (P/O PL 80.55 Item 1)
6 – Actuator spring (P/O PL 80.55 Item
1)
7 – Wire harness (P/O PL 80.55 Item 1)
8 059K87340 Registration roll (REP 80.20)
9 013E45090 Bearing
10 013E45330 Bearing
11 121K55550 Registration clutch (CL77-002)
12 807E45610 Registration clutch gear
13 – Guide harness (Not Spared)
14 – Connect cover (Not Spared)
15 859K01520 Takeaway roll 1
16 013E45340 TA bearing
17 899E10940 TA spring
18 807E48210 Gear 36T
19 005E94861 Registration coupling
20 – Registration clutch assembly (Not
Spared)
