Xerox VersaLink B7025 Service Manual

April 2017
4-63
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.6
Repairs and Adjustments
Launch Issue
REP 12.6 Exit Roll Assembly
Parts List on PL 12.11
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the upper chute assembly, REP 12.13.
2. Remove the exit roll assembly, Figure 1:
a. Remove the E-ring, then the bearing (1).
b. Remove the E-ring, then the bearing (2).
c. Remove the exit roll assembly (3).

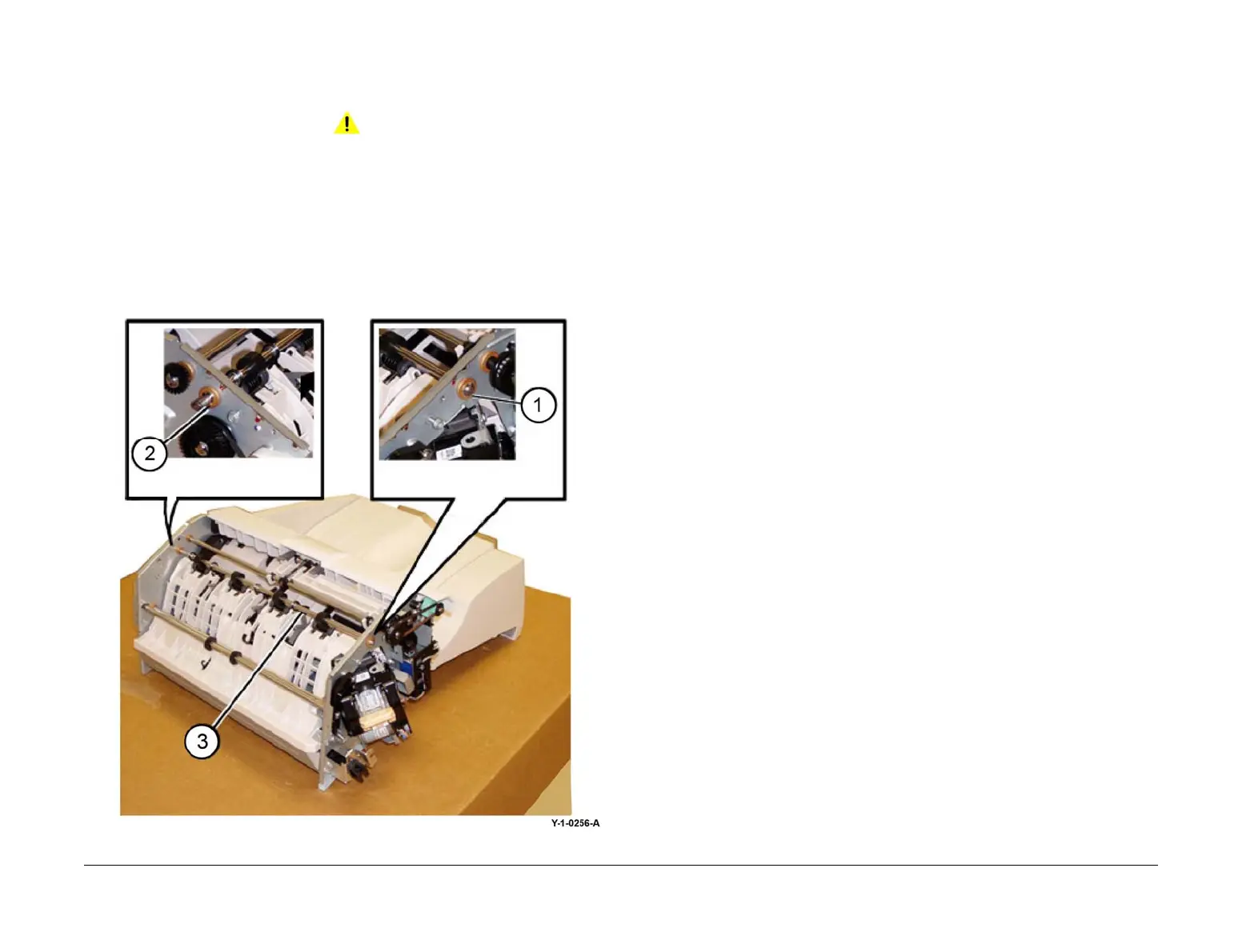

Figure 1 Exit roll assembly removal
Replacement
The replacement is the reverse of the removal procedure.
NOTE: Ensure that the paper guides on the upper chute, PL 12.13 Item 4 are not folded back
on top of the exit roll assembly.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
