Xerox VersaLink B7025 Service Manual

April 2017
5-105
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.85
Parts Lists
Launch Issue

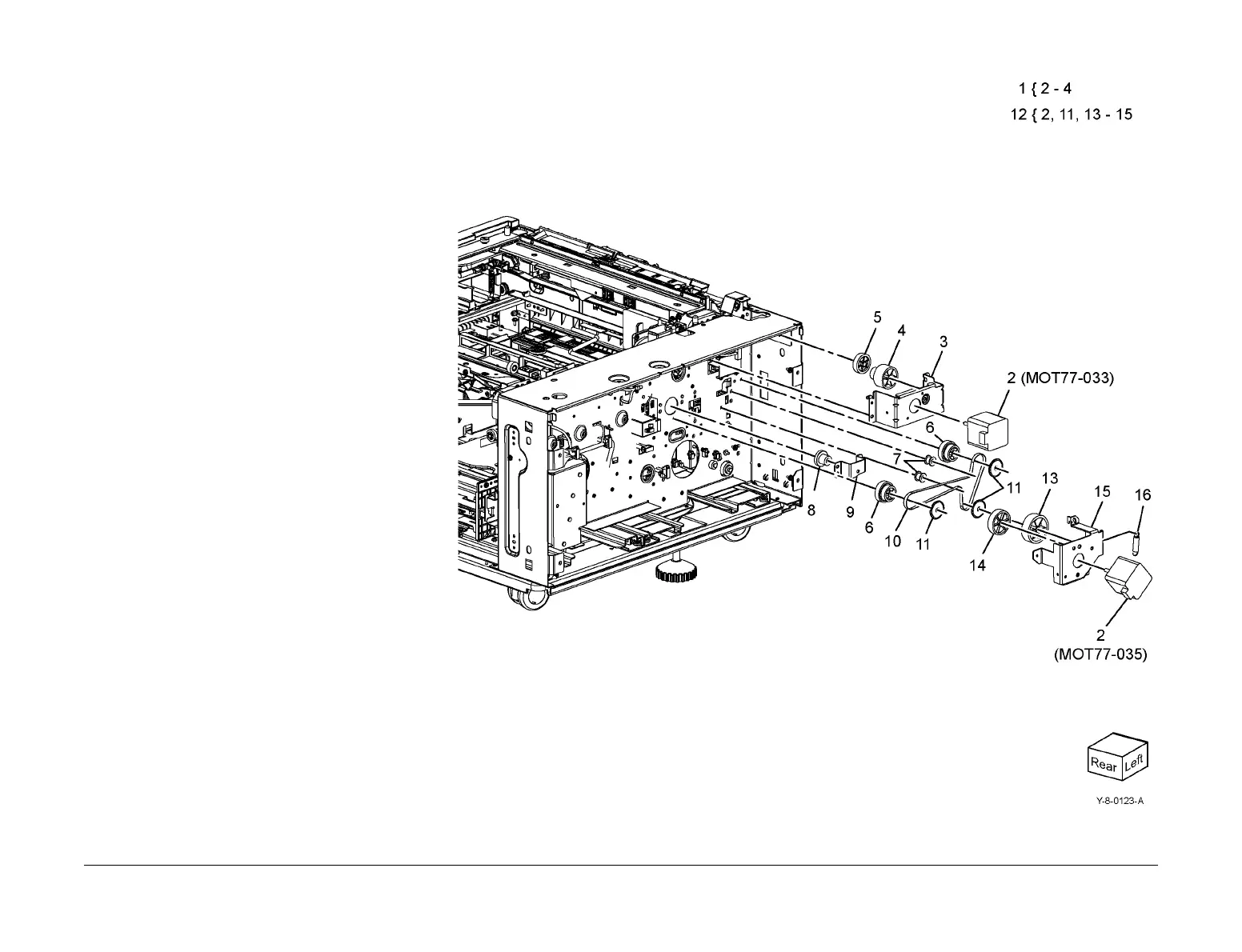

PL 70.85 TTM Drive Components
Item Part Description
1 127K75990 Takeaway motor 1 assembly
2 – Takeaway motor 1 (MOT77-033)
(P/O PL 70.85 Item 1)/takeaway
motor 2 (MOT77-035) (P/O PL
70.85 Item 12)
3 – Motor bracket (P/O PL 70.85 Item
1)
4 – Gear M2 (P/O PL 70.85 Item 1)
5 – Gear 34T (Not Spared)
6 – Gear 26T (Not Spared)
7 – Roller (Not Spared)
8 807E35860 Transfer gear (REP 80.40)
9 – Trans bracket assembly (Not
Spared)
10 023E28900 Drive belt (REP 80.28)
11 – Collar - 2 (P/O PL 70.85 Item 12)
12 127K76000 Takeaway motor 2 assembly (REP
80.37)
13 – Gear 81T (P/O PL 70.85 Item 12)
14 – Gear 70T (P/O PL 70.85 Item 12)
15 – Motor bracket (P/O PL 70.85 Item
12)
16 – Spring (Not Spared)
