Xerox VersaLink B7025 Service Manual

April 2017
4-75
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.15, REP 12.16
Repairs and Adjustments
Launch Issue
10. Remove the stacker tray assembly, Figure 4:
a. Remove five screws (1).
b. Remove the stacker tray assembly (2).

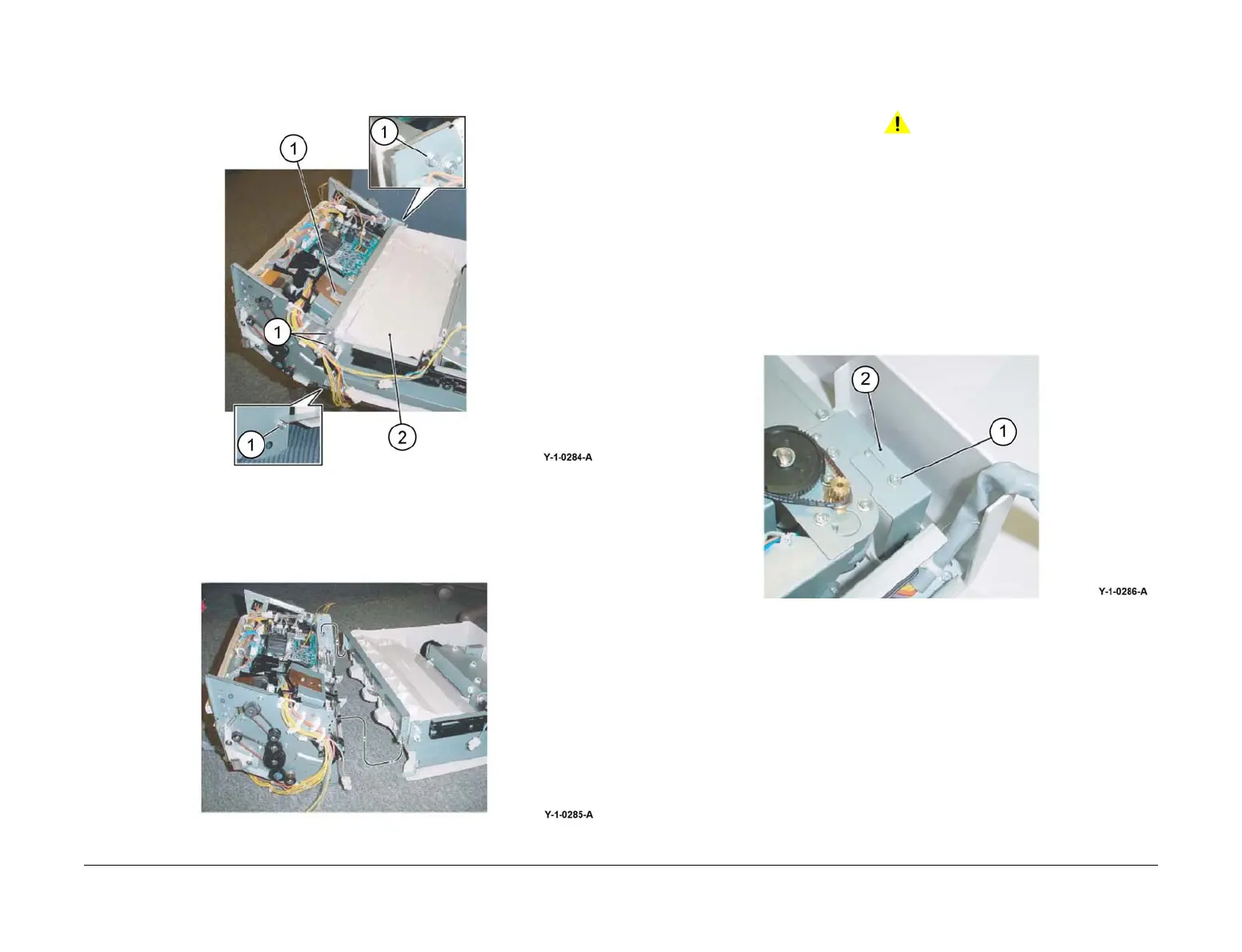

Figure 4 Stacker tray assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Install the stacker tray assembly and integrated office finisher as shown in Figure 5.
Figure 5 Stacker tray assembly installation
REP 12.16 Stacker Shaft Assembly
Parts List on PL 12.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the rear cover, PL 12.05 Item 14.
3. Turn over the integrated office finisher.
4. Remove the tray cover, PL 12.06 Item 3.
5. Remove the rear bracket, Figure 1:
a. Remove the screw (1).
b. Remove the bracket (2).
Figure 1 Rear bracket removal
