April 2017
5-94
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.45
Launch Issue
Parts Lists

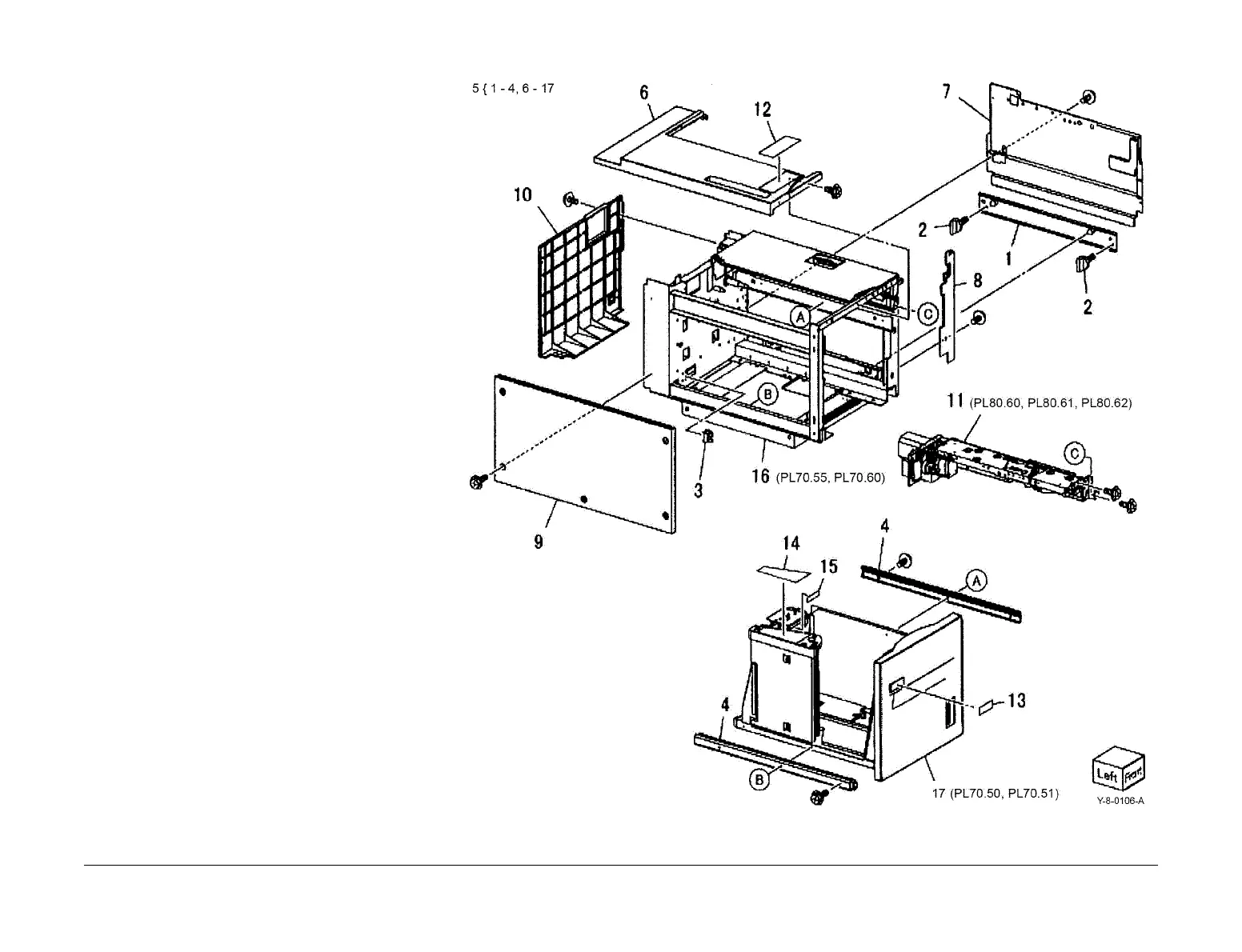

PL 70.45 HCF Assembly
Item Part Description
1 – Docking plate (Not Spared)
2 003K91881 Knob
3 130K55590 HCF tray in sensor (Q78-204)
4 801K15701 Tray rail
5 050K51976 HCF Tray 6 (REP 70.3, REP 70.4)
6 – Left top cover (Not Spared)
7 – Right cover (Not Spared)
8 – Front right cover (Not Spared)
9 – Left cover (Not Spared)
10 – Rear cover (Not Spared)
11 – HCF feeder (Not Spared) (REP
80.21)
12 – Label (top) (Not Spared)
13 – Label (tray number) (Not Spared)
14 – Label (size) (Not Spared)
15 – Label (end) (Not Spared)
16 – Frame assembly (Not Spared)
17 – HCF Tray (P/O PL 70.45 Item 5)
