Xerox VersaLink B7025 Service Manual

April 2017
4-132
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.37, REP 13.38
Launch Issue
Repairs and Adjustments

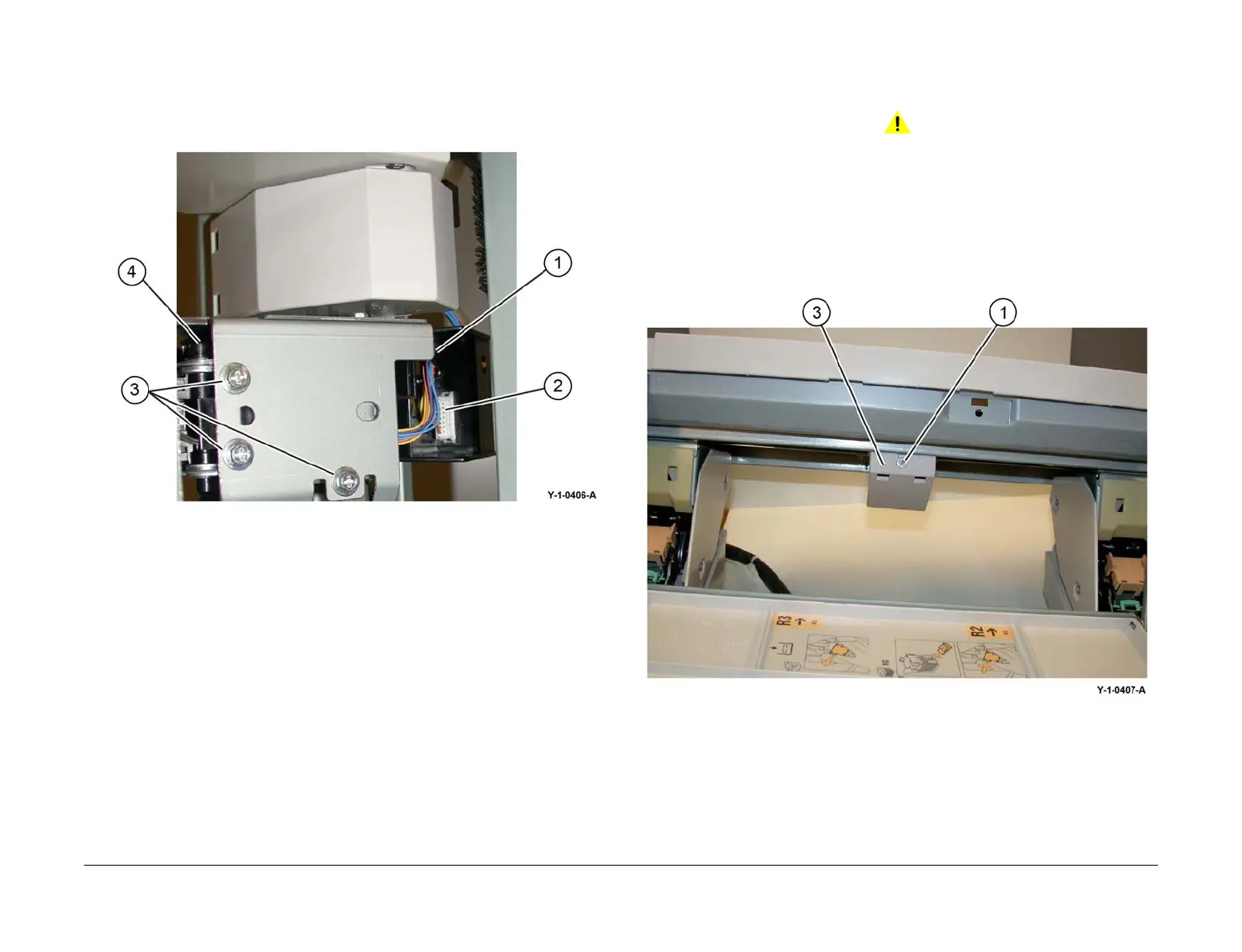

5. Remove the stapler, Figure 4:
a. Release the harness from the clamp (1).
b. Disconnect the connector (2).
c. Remove three screws (3).
d. Remove the stapler (4).
Figure 4 Stapler removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Perform ADJ 13.2 Booklet Folding and Stapling Position.
REP 13.38 Booklet Stapler Move Motor
Parts List on PL 13.55
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet maker assembly, REP 13.31.
2. Remove the cover for the booklet stapler move motor, Figure 1:
a. Remove the screw (1).
b. Remove the cover (2).
Figure 1 Cover removal

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
