Xerox VersaLink B7025 Service Manual

April 2017
4-48
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.19
Launch Issue
Repairs and Adjustments
REP 5.19 Retard Roll Assembly
Parts List on PL 5.65
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: A new retard roll assembly and feed/nudger roll assembly must both be installed at the
same time. Refer to REP 5.10.
1. Open the upper feeder assembly.
2. Release the hook (1), then open the retard CRU cover assembly in the direction of the
arrow, Figure 1.

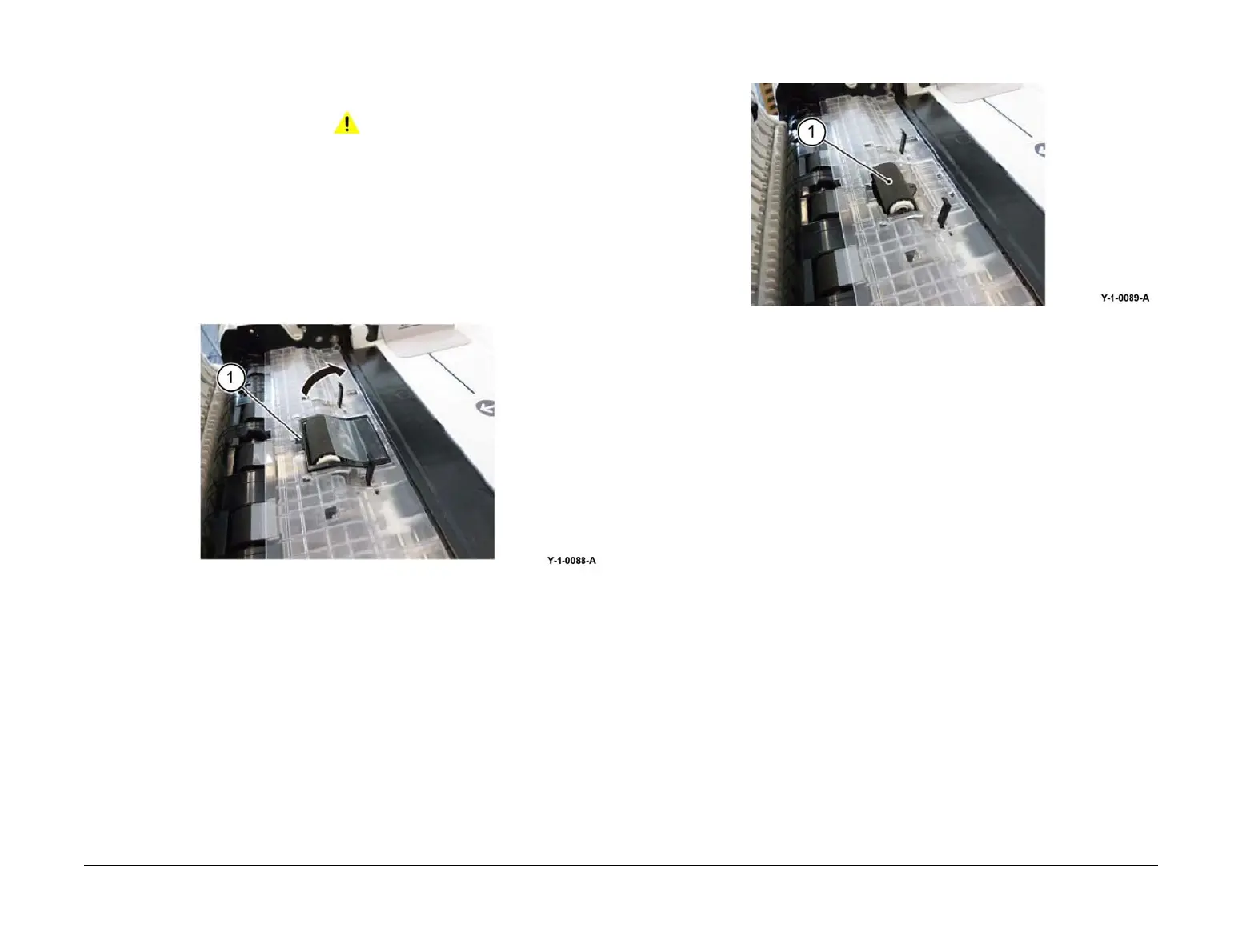

Figure 1 Retard CRU cover assembly
3. Remove the retard roll assembly (1), Figure 2.
Figure 2 Retard roll assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If a new retard roll assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 955-806.
