Xerox VersaLink B7025 Service Manual

April 2017
3-8
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
IQ5, IQ6
Launch Issue
Imaqe Quality
IQ5 Toner Smears RAP

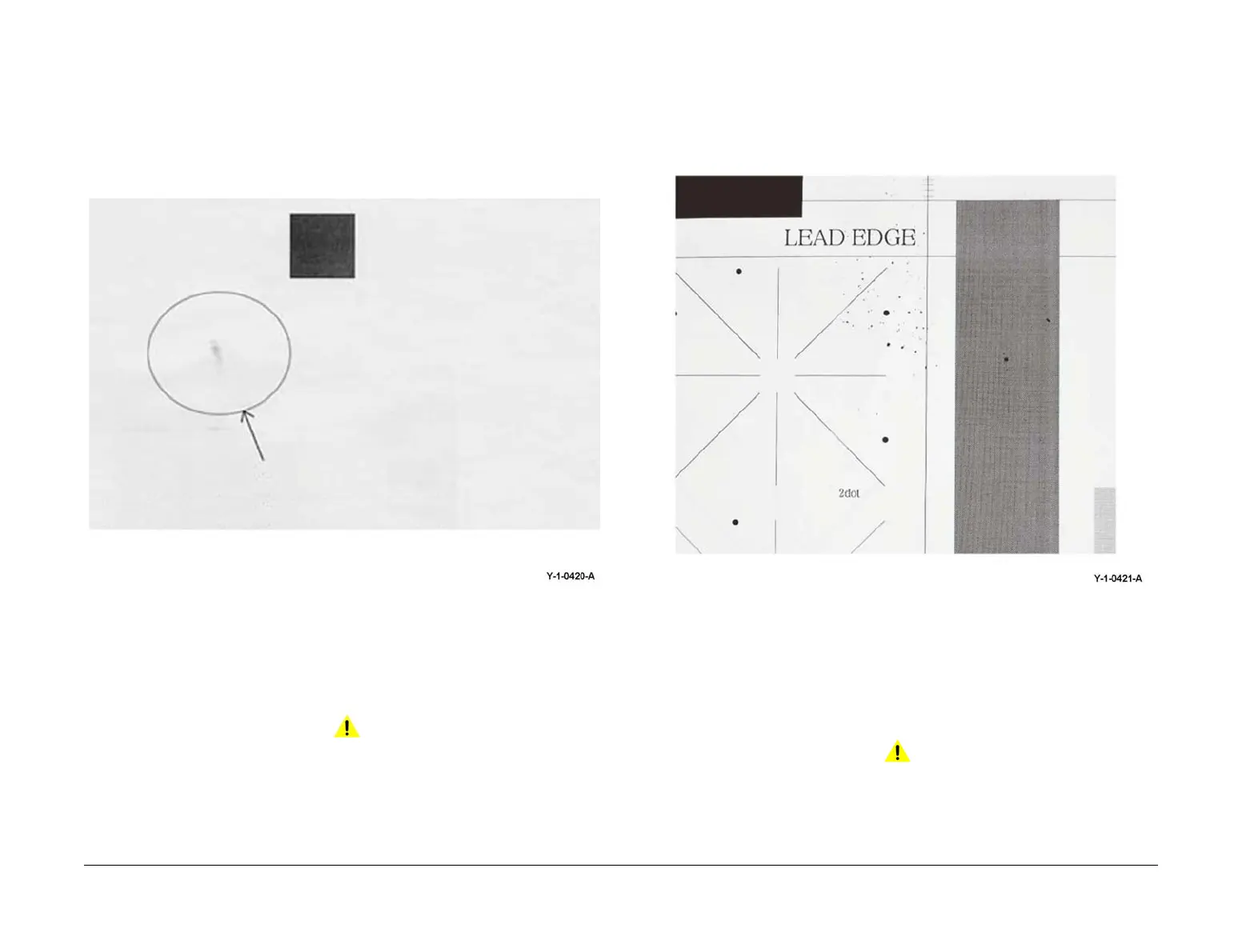

Smeared toner spills that are long and narrow. Refer to Figure 1.
Ensure IQ1 Image Quality Entry RAP is performed before starting this RAP.
Figure 1 Example
Cause
Spilt toner from the drum cartridge.
Procedure
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 10. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
1. Make 20 blank copies.
2. If the image quality defect remains, install a new drum cartridge, PL 90.20 Item 1.
IQ6 Toner Contamination RAP
Many uneven black spots on the paper. Refer to Figure 1.
Ensure IQ1 Image Quality Entry RAP is performed before starting this RAP.
Figure 1 Example
Cause
1. Paper size mismatch occurred (tray and paper size settings are different).
2. The resistance of the paper increased under dry conditions.
3. Toner spill due to the drum cartridge cleaner clogging.
Action
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 10. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
1. Check the tray settings.
