Xerox VersaLink B7025 Service Manual

April 2017
5-95
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.50
Parts Lists
Launch Issue

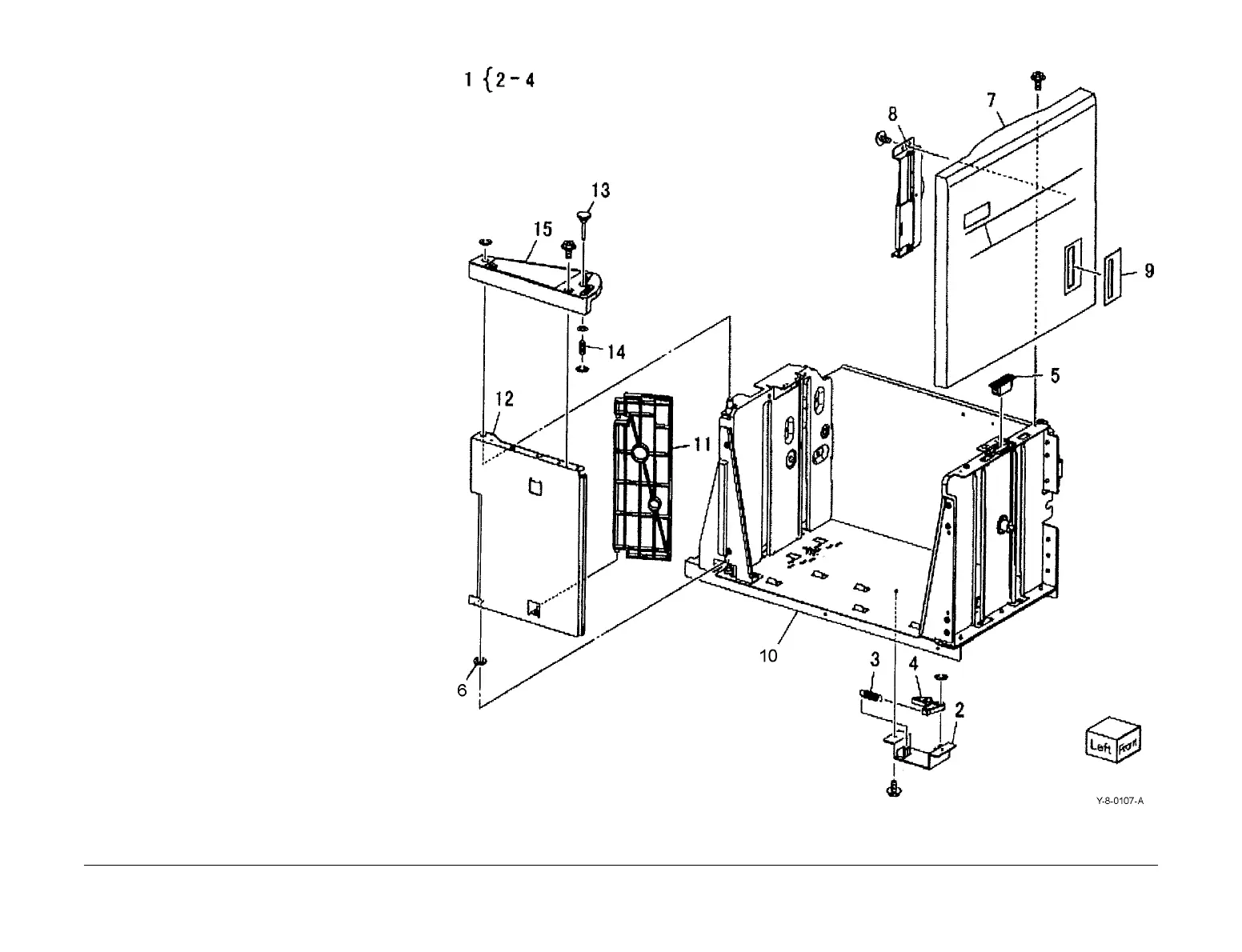

PL 70.50 HCF (1 of 2)
Item Part Description
1 003K13592 Tray latch assembly
2 – Bracket (P/O PL 70.50 Item 1)
3 – Spring (P/O PL 70.50 Item 1)
4 – Latch lever (P/O PL 70.50 Item 1)
5 – Magnet (P/O PL 70.45 Item 5)
6 – Wave washer (P/O PL 70.45 Item
5)
7 – Front cover (P/O PL 70.45 Item 5)
8 – Gear bracket (P/O PL 70.45 Item 5)
9 – Label (Gauge) (P/O PL 70.45 Item
5)
10 – Frame (P/O PL 70.45 Item 5)
11 – Plate (P/O PL 70.45 Item 5)
12 – Bracket (P/O PL 70.45 Item 5)
13 – Pin (P/O PL 70.45 Item 5)
14 – Spring (P/O PL 70.45 Item 5)
15 – Top plate (P/O PL 70.45 Item 5)
