Xerox VersaLink B7025 Service Manual

April 2017
5-37
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.25
Parts Lists
Launch Issue

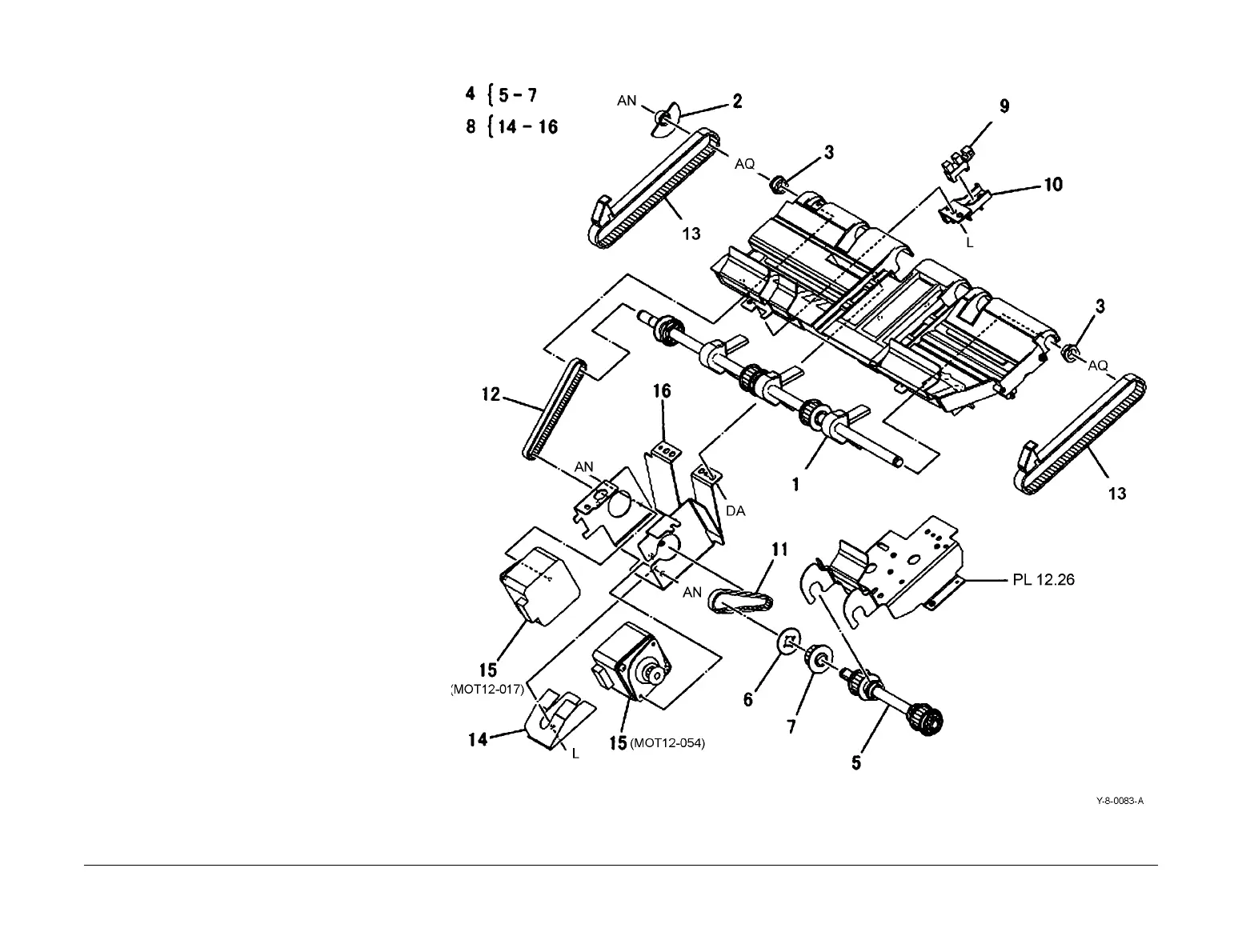

PL 12.25 Integrated Office Finisher
Compile Assembly (1 of 2)
Item Part Description
1 – Set clamp shaft (Not Spared) (REP
12.20)
2 – Actuator (Not Spared)
3 – Bearing (Not Spared)
4 – Eject shaft assembly (Not Spared)
(REP 12.24)
5 – Eject shaft (P/O PL 12.25 Item 4)
6 – Spacer (P/O PL 12.25 Item 4)
7 – Pulley (P/O PL 12.25 Item 4)
8 – Eject/set clamp motor assembly
(Not Spared) (REP 12.22)
9 930W00111 Rear tamper home sensor (Q12-
221) (REP 12.23)
10 – Support (Not Spared)
11 – Belt (Not Spared)
12 – Belt (Not Spared)
13 – Eject belt (Not Spared)
14 – Spring (P/O PL 12.25 Item 8)
15 – Eject motor (MOT12-054)/set
clamp motor (MOT12-017) (P/O PL
12.25 Item 8)
16 – Bracket (P/O PL 12.25 Item 8)
