Xerox VersaLink B7025 Service Manual

April 2017
4-206
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.31, REP 80.32
Launch Issue
Repairs and Adjustments
REP 80.31 Tray 4 Upper Feed Chute (TTM)
Parts List on PL 80.70
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the tray 4 feeder assembly, REP 80.35.
2. Remove the upper feed chute, Figure 1:
a. Remove two screws (1).
b. Remove the lower feed chute (2).

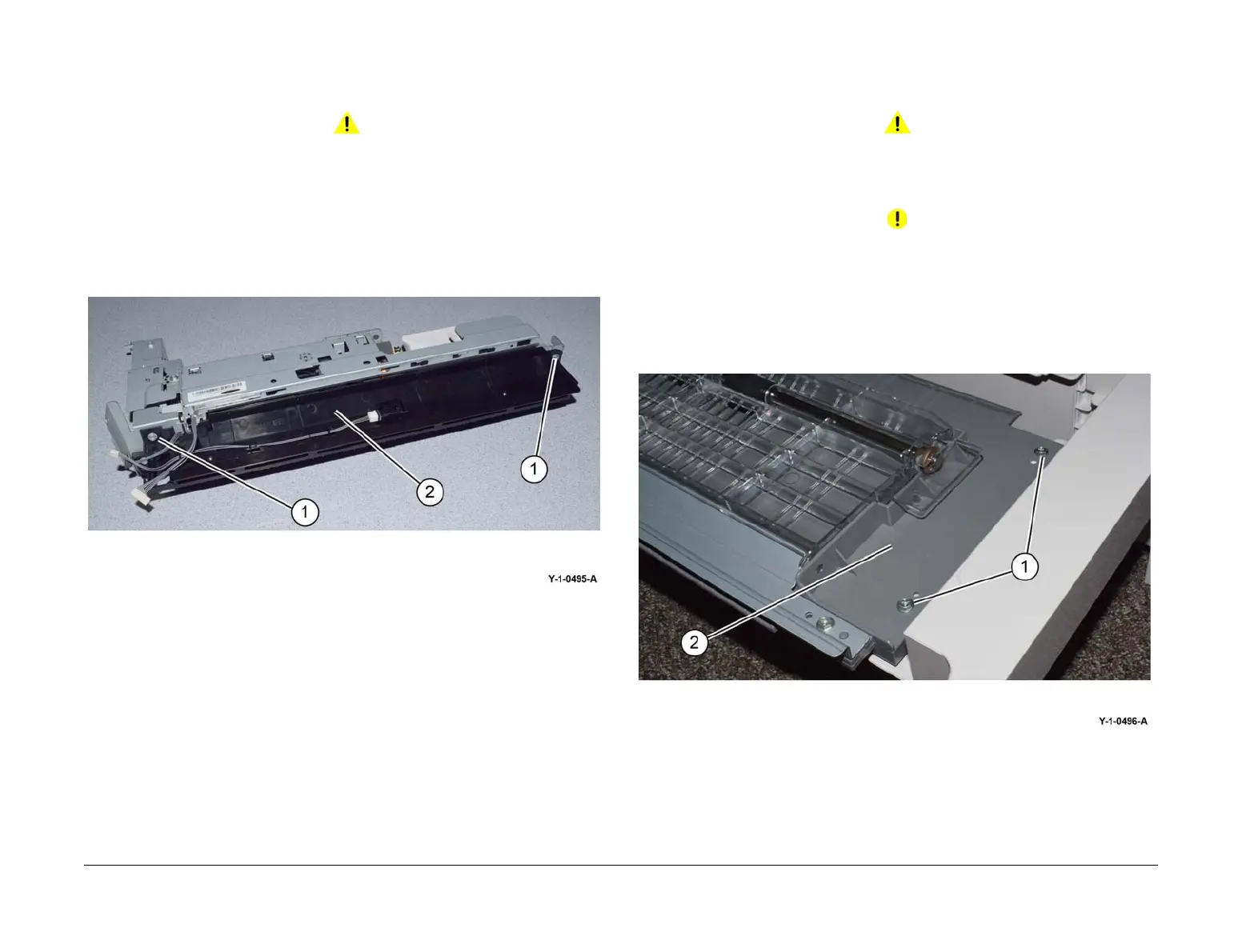

Figure 1 Upper feed chute removal
Replacement
The replacement is the reverse of the removal procedure.
REP 80.32 Tray 4 Transport Assembly Nip Rolls (TTM)
Parts List on PL 80.70
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
Ensure that the tray 4 transport assembly, PL 80.70 Item 11 is supported when removing the
tray 4 assembly.
1. Fully pull out tray 4. Lift out the tray 4 assembly, PL 70.65 Item 1.
2. Remove the tray 4 transport assembly from the tray 4 assembly, Figure 1:
a. Remove two screws (1).
b. Remove the tray 4 transport assembly (2).
Figure 1 Transport assembly removal

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
