Xerox VersaLink B7025 Service Manual

April 2017
5-107
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.95
Parts Lists
Launch Issue

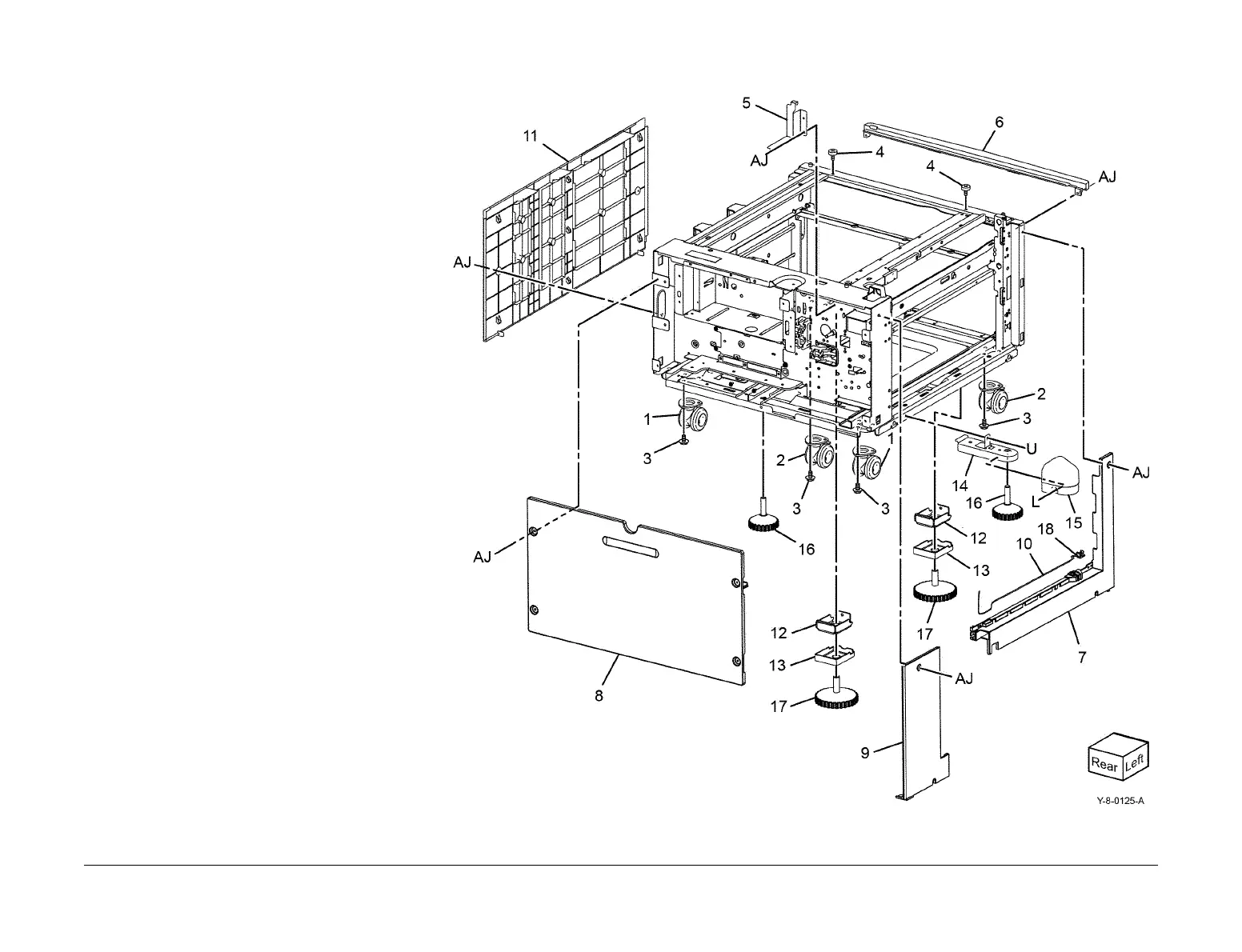

PL 70.95 TTM Castors
Item Part Description
1 417W41449 Caster
2 417W41349 Locking caster
3 – Screw (Not Spared)
4 – Docking screw (Not Spared)
5 – Docking bracket (Not Spared)
6 – Top cover (Not Spared)
7 – Left front cover (Not Spared)
8 – Rear cover (Not Spared)
9 – Left rear cover (Not Spared)
10 – Harness (Not Spared)
11 – Right cover (Not Spared)
12 – Front foot bracket (Not Spared)
13 – Front foot cover (Not Spared)
14 – Left foot bracket (Not Spared)
15 – Foot cover (Not Spared)
16 017K94910 Foot assembly adjuster
17 017K96680 Front foot assembly adjuster
18 110E11580 TM left hand interlock switch (77-
306)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
