Xerox VersaLink B7025 Service Manual

April 2017
5-18
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.50
Launch Issue
Parts Lists

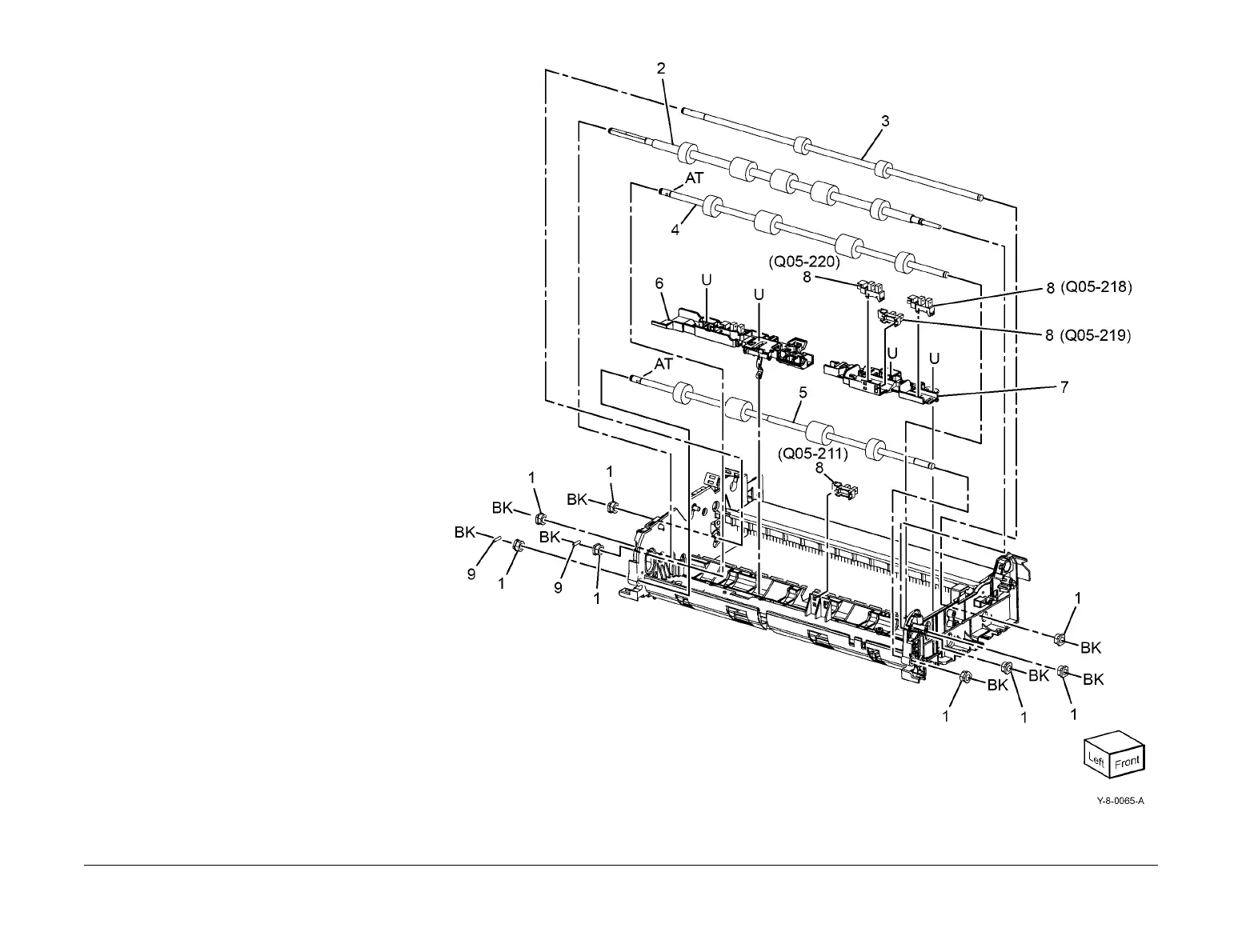

PL 5.50 DADF Roller and Sensor
Bracket
Item Part Description
1 – Plastic bearing sleeve (Not Spared)
2 – DADF takeaway roll (Not Spared)
(REP 5.17)
3 – Exit roll (Not Spared)
4 – Out roll (Not Spared)
5 – Registration roll (Not Spared)
6 – Registration sensor bracket (P/O
PL 5.70 Item 1) (REP 5.18)
7 – APS sensor bracket (Not Spared)
(REP 5.18)
8 930W00121 APS sensor 1 (Q05-218)/APS
sensor 2 (Q05-219)/APS sensor 3
(Q05-220)/invert sensor (Q05-211)
9 – Ring KL (Not Spared)
