Xerox VersaLink B7025 Service Manual

April 2017
5-111
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.11
Parts Lists
Launch Issue

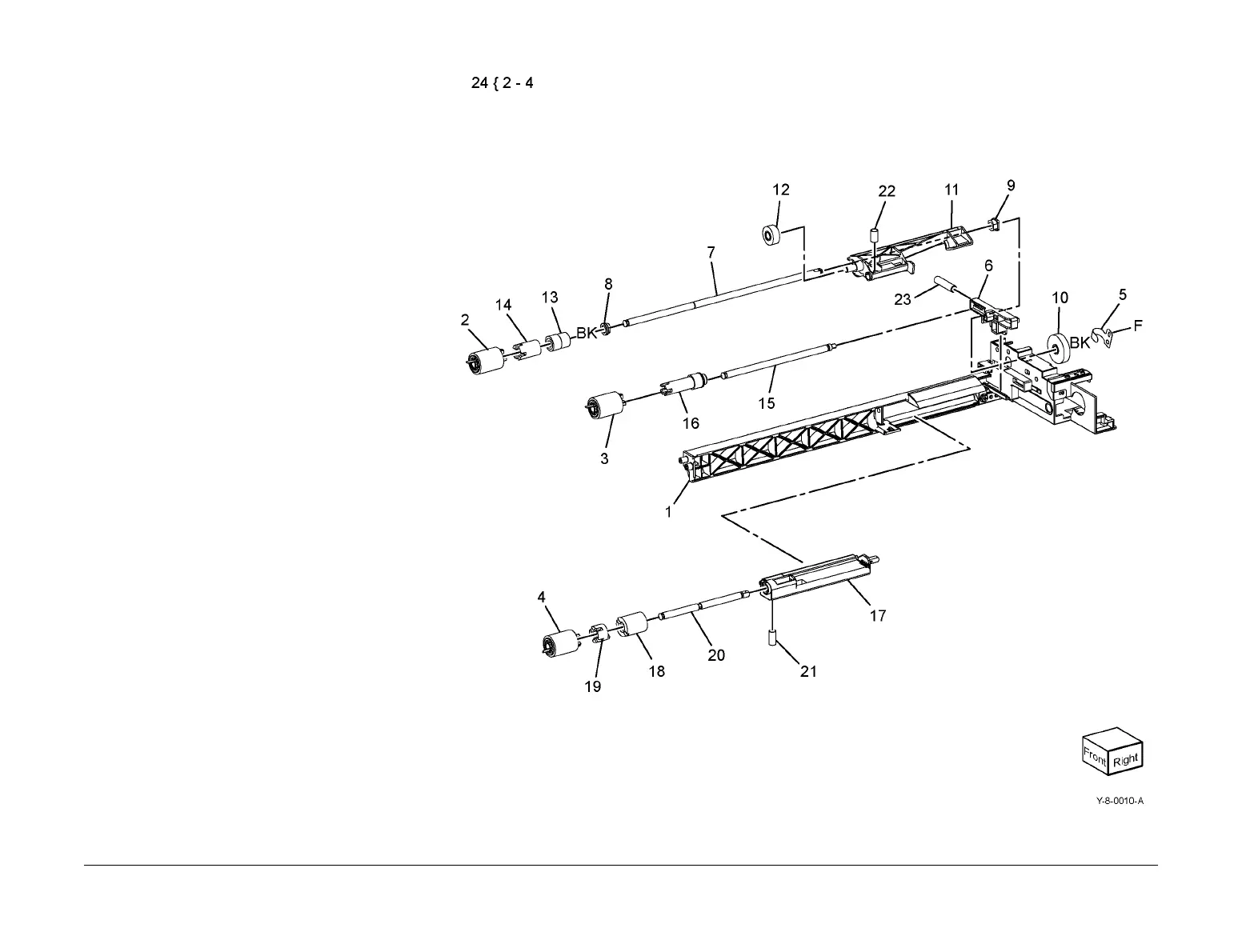

PL 80.11 Tray 1 Feeder Assembly (2 of
2)
Item Part Description
1 – Lower frame (P/O PL 80.10 Item 1)
2 – Feed roll (P/O PL 80.11 Item 24)
3 – Nudger roll (P/O PL 80.11 Item 24)
4 – Retard roll (P/O PL 80.11 Item 24)
5 – Earth feed plate (P/O PL 80.10 Item
1)
6 – Lever (P/O PL 80.10 Item 1)
7 – Feed shaft (P/O PL 80.10 Item 1)
8 – Bearing (P/O PL 80.10 Item 1)
9 – Bearing (P/O PL 80.10 Item 1)
10 – Helical gear 30T (P/O PL 80.10
Item 1)
11 – Nudger support (P/O PL 80.10 Item
1)
12 – Spur gear 33T (P/O PL 80.10 Item
1)
13 005K06760 Clutch assembly 22T
14 005K05890 Clutch assembly
15 – Nudger shaft (P/O PL 80.10 Item 1)
16 – Gear 25T (P/O PL 80.10 Item 1)
17 – Retard support (P/O PL 80.10 Item
1)
18 005K83300 Friction clutch assembly
19 – Spacer (P/O PL 80.10 Item 1)
20 – Retard shaft (P/O PL 80.10 Item 1)
21 – Retard spring compression (P/O PL
80.10 Item 1)
22 – Nudger spring compression (P/O
PL 80.10 Item 1)
23 – Lever spring compression (P/O PL
80.10 Item 1)
24 604K56080 Feed roller kit (see NOTE) (REP
80.2)
NOTE: HFSI. To reset the HFSI counter, refer to dC135.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
