Xerox VersaLink B7025

April 2017
5-87
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.25
Parts Lists
Launch Issue

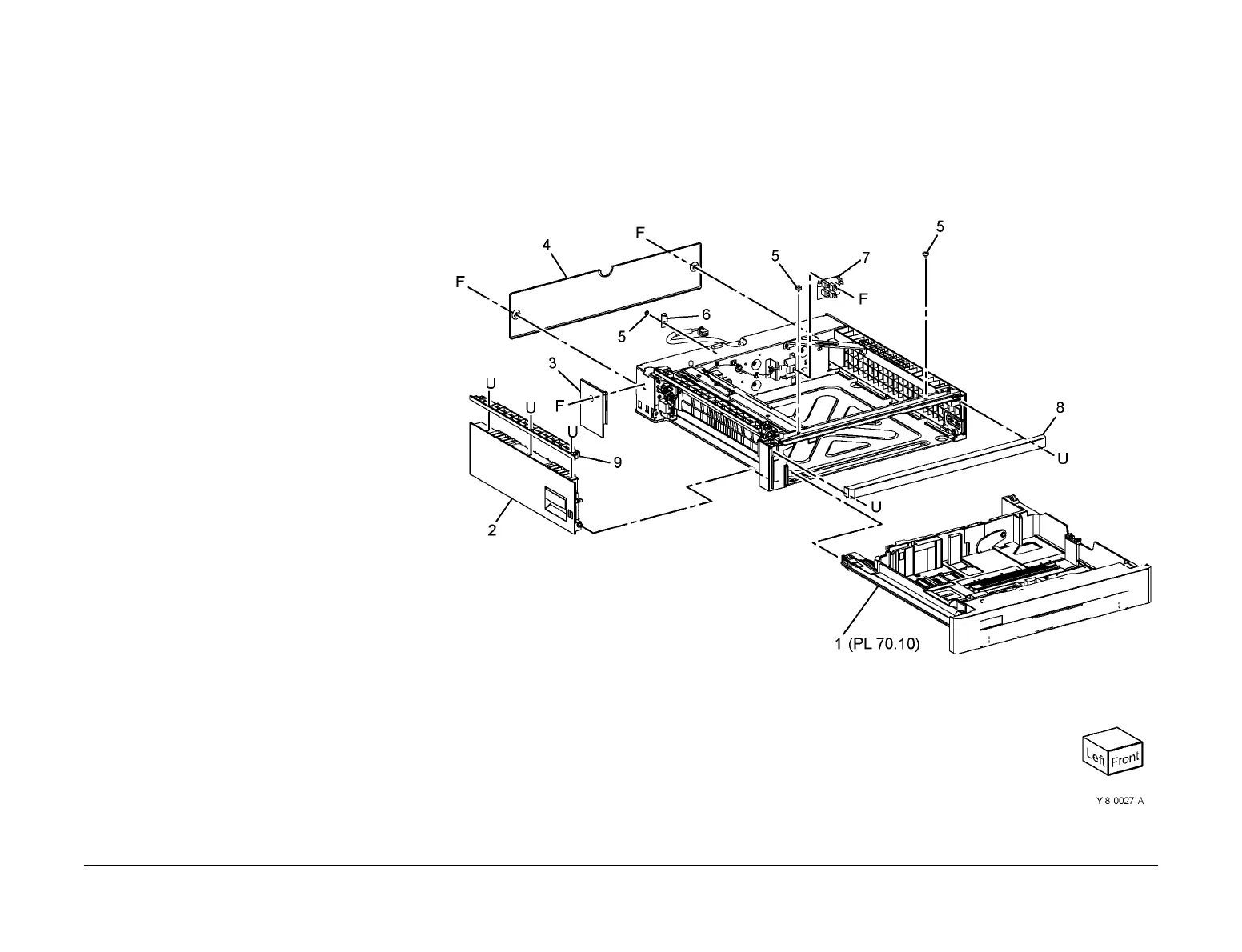

PL 70.25 STM (1 of 4)
Item Part Description
1 – A3 tray assembly (REF: PL 70.10)
2 – Left cover assembly (Not Spared)
3 – Left cover (Not Spared)
4 – Rear cover (Not Spared)
5 – Docking screw (Not Spared)
6 – Docking bracket (Not Spared)
7 110K17950 Paper size sensor
8 – MA top cover (Not Spared)
9 – Chute (Not Spared)
