Xerox VersaLink B7025 Service Manual

April 2017
4-177
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.1
Repairs and Adjustments
Launch Issue
REP 80.1 Tray 1 Feeder Assembly
Parts List on PL 80.05
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Pull out tray 1.
2. Open the LH transport assembly.
3. Remove the bypass tray, REP 70.2.

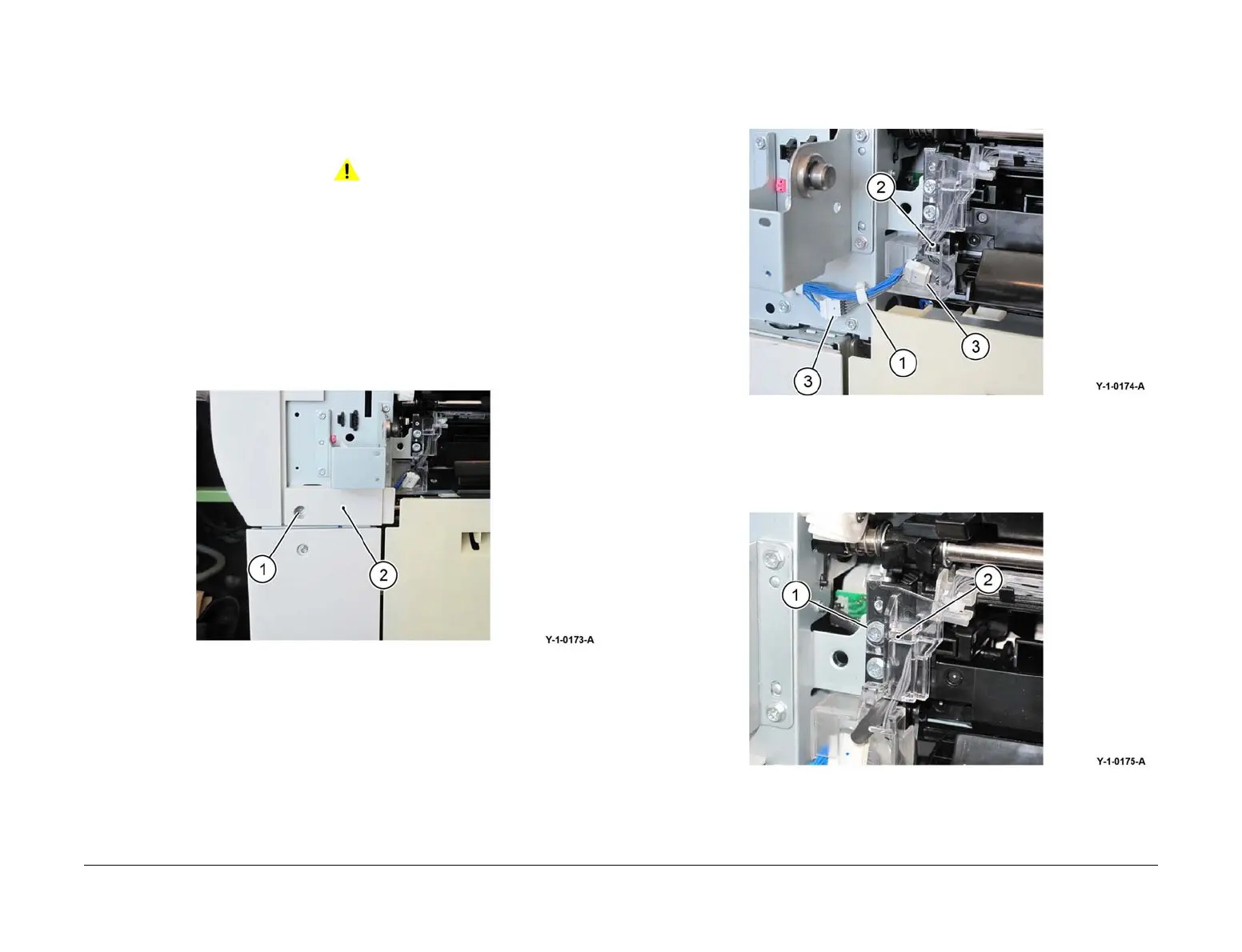

4. Remove the bypass tray R cover, Figure 1:
a. Remove the screw (1).
b. Remove the bypass tray R cover (2).
Figure 1 Bypass tray R cover removal
5. Disconnect the connectors, Figure 2:
a. Release the harness from the retainer (1).
b. Release the harness from the harness holder (2).
c. Disconnect two connector (3).
Figure 2 Connectors
6. Remove the harness holder, Figure 3:
a. Remove the screw (1).
b. Remove the harness holder (2).
Figure 3 Harness holder removal

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
