Xerox VersaLink B7025 Service Manual

April 2017
4-176
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.12
Launch Issue
Repairs and Adjustments
CAUTION
Take extreme care when removing the metal drive plate. The internal drive gears will be loose.
Do not turn over the drive assembly after the metal drive plate has been removed.

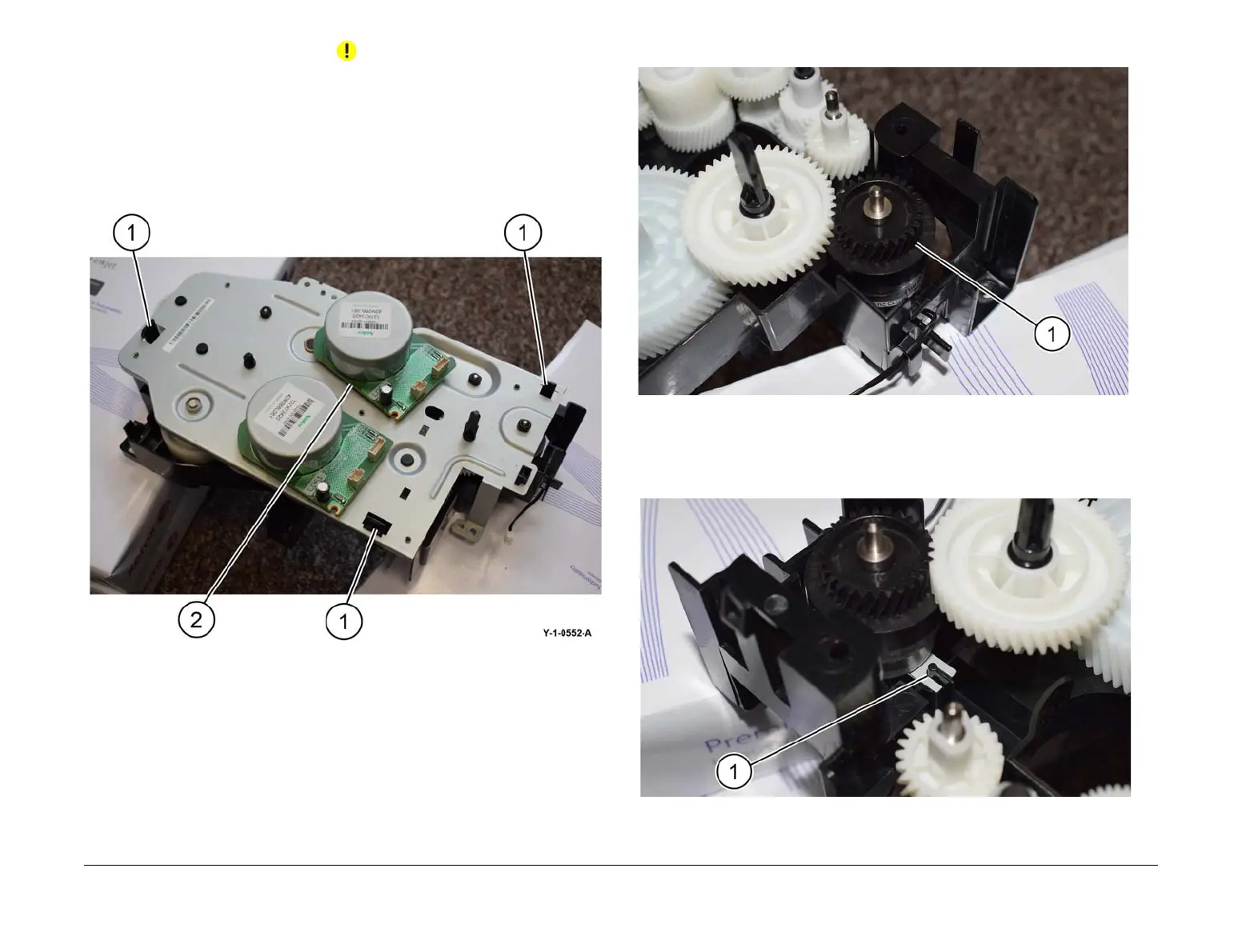

3. Place the drive assembly, metal drive plate face up, on four reams of paper (two stacks of
two). Remove the metal drive plate, Figure 2:
a. Release the three clips (1).
b. Very carefully, lift off the metal drive plate (2).
Figure 2 Clips
4. Remove the takeaway clutch (1) or lock bearing, PL 40.10 Item 4 as necessary, Figure 3.
Figure 3 Clutch removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. When installing the new takeaway clutch. Ensure that the two fingered bracket on the
clutch is correctly positioned over the moulded peg (1) on the drive assembly, Figure 4.
Figure 4 Clutch replacement
3. When re-installing the metal drive plate, ensure all the spindles are correctly aligned with
the bearings in the metal drive plate.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
