Xerox VersaLink B7025 Service Manual

April 2017
4-235
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
ADJ 60.2
Repairs and Adjustments
Launch Issue
ADJ 60.2 IIT Lead Edge Registration
Purpose
To adjust the IIT scan timing in the process direction and to correct the copy position.
Check
CAUTION
Only perform this procedure if absolutely necessary. IIT lead registration affects the precision
of document size detection.
NOTE: For a description of the print/copy orientation definitions, refer to GP 31 Print/Copy Ori-
entation Definitions.
1. Ensure that the IOT lead edge registration is correct. Refer to dC126 System Registra-
tion.
2. Make two, 100% copies of test pattern 82E8220 from the document glass.
3. On the 2nd copy, check that the distance from the lead edge to the top of Step 3 on the
LE2 scale is 10mm +/- 2.1mm (0.4 inch +/- 0.1 inch), Figure 1.

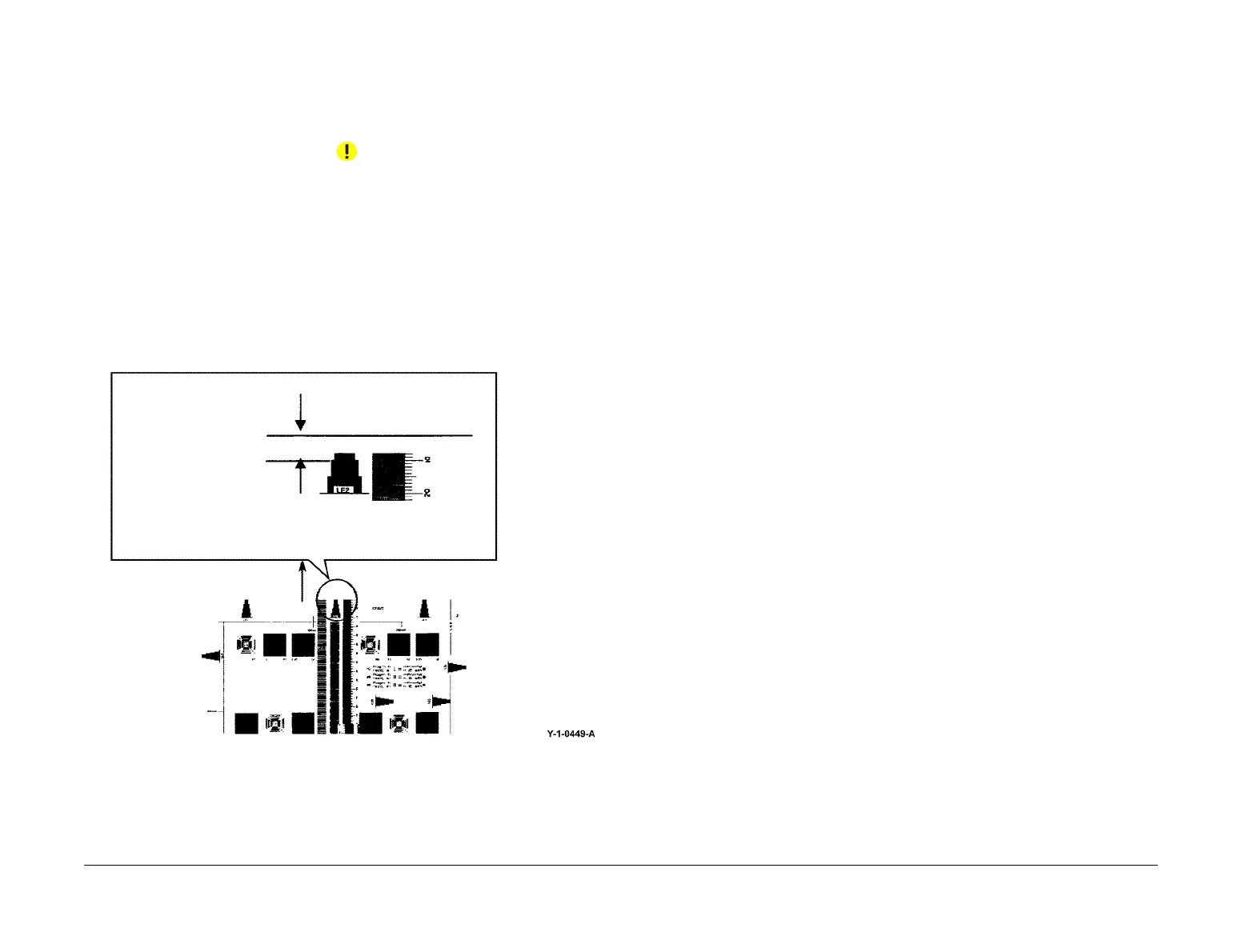

Figure 1 IIT lead edge registration
4. If the value is not within the specified range, perform the Adjustment.
Adjustment
1. Enter dC131. Change the value of NVM location 715-050 to correct lead edge registra-
tion:
• Increase the value to move the image towards the trail edge of the copy.
• Decrease the value to move the image towards the lead edge of the copy.
NOTE: An increment of 1 in NVM = 0.34mm (0.014inch).
2. Repeat the Check.
Lead edge
10mm +/- 2.1mm
(0.4 inch +/- 0.1 inch)
