Xerox VersaLink B7025 Service Manual

April 2017
4-204
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.27, REP 80.28
Launch Issue
Repairs and Adjustments
REP 80.27 HCF Feed/Lift Motor
Parts List on PL 80.60
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Undock the HCF, REP 70.4.
2. Remove rear cover, PL 70.45 Item 10.
3. Disconnect the connector from the motor.
NOTE: Be careful when removing the motor as it is meshed to a hidden gear.
4. While supporting the motor with one hand, remove two screws then the HCF feed/lift
motor (1), Figure 1.

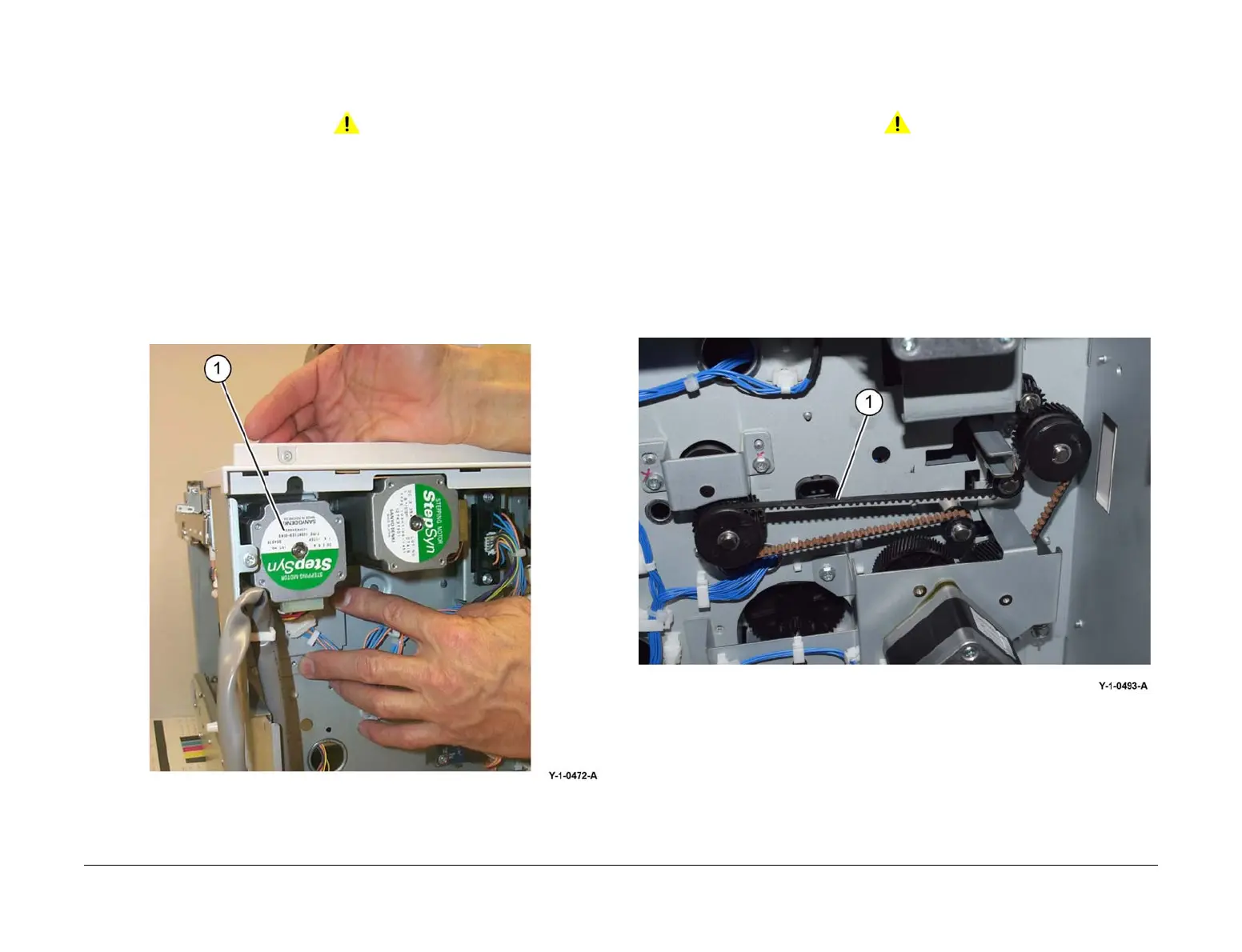

Figure 1 HCF feed/lift motor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 80.28 TTM Drive Belt
Parts List on PL 70.85
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the TTM rear cover, PL 70.95 Item 8.
2. Remove the takeaway motor 2, REP 80.37.
3. Remove the TTM drive belt, PL 70.85 Item 10.
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure that the drive belt (1) is installed as shown in Figure 1.
Figure 1 Belt installation
