Xerox VersaLink B7025 Service Manual

April 2017
5-121
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.60
Parts Lists
Launch Issue

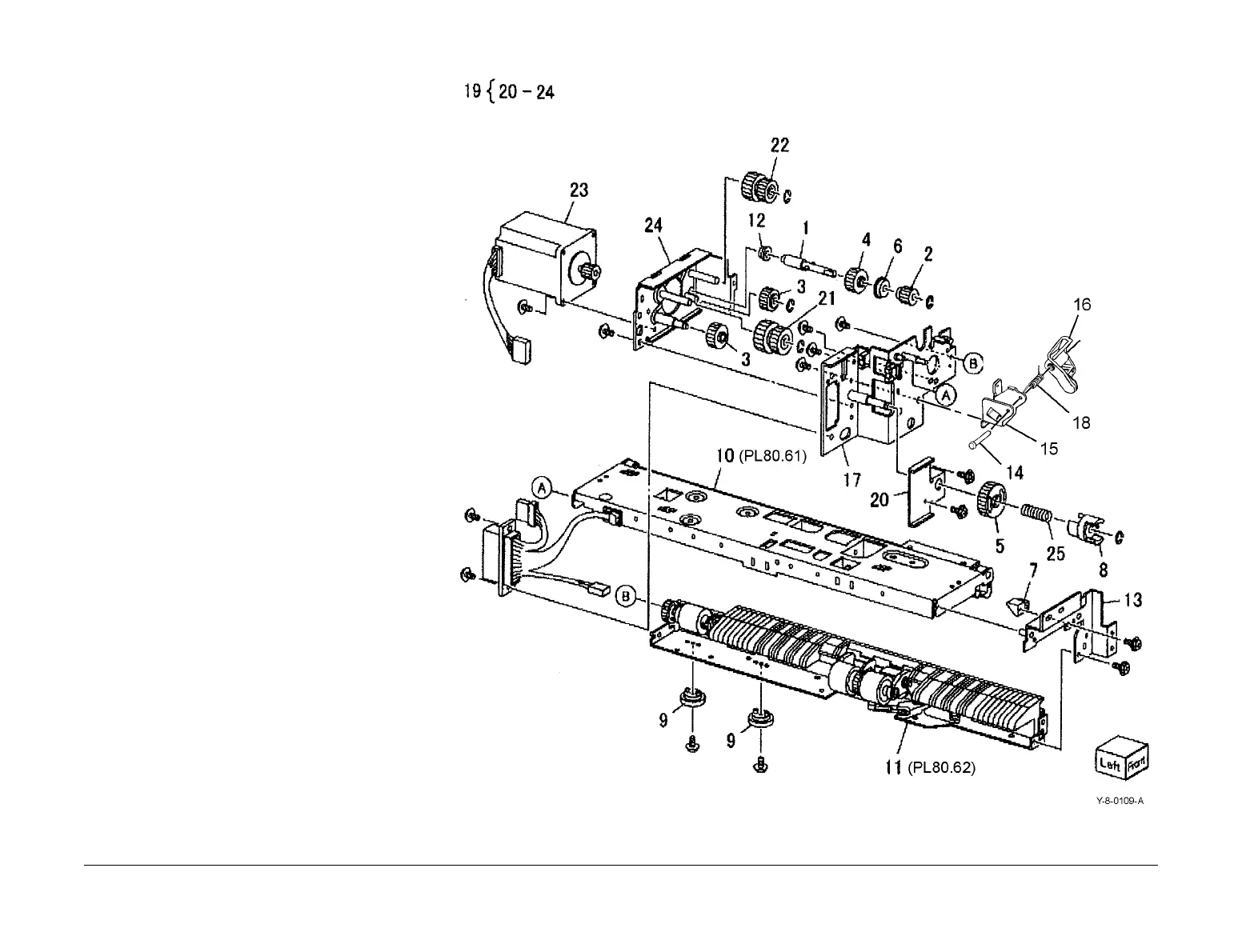

PL 80.60 HCF Feeder (1 of 3)
Item Part Description
1 – Shaft (P/O PL 70.45 Item 11)
2 007E78760 Gear 19T
3 007E78770 Gear 25T
4 007E78780 Gear 25T
5 007E78790 Gear 40T
6 013E25530 Bearing
7 – Block (P/O PL 70.45 Item 11)
8 – Spacer (P/O PL 70.45 Item 11)
9 019E56470 Holder
10 – Upper feeder assembly (P/O PL
70.45 Item 11)
11 – Lower feeder assembly (P/O PL
70.45 Item 11)
12 413W66250 Ball bearing
13 – Front frame (P/O PL 70.45 Item 11)
14 – Pin (P/O PL 70.45 Item 11)
15 – Down bracket (P/O PL 70.45 Item
11)
16 – Link bracket (P/O PL 70.45 Item
11)
17 – Rear frame (P/O PL 70.45 Item 11)
18 – Tension spring (P/O PL 70.45 Item
11)
19 – Lift/Motor frame (P/O PL 70.45 Item
11)
20 – Bracket (P/O PL 80.60 Item 19)
21 007K88520 Gear 23T/27T
22 007K88530 Gear 31T/36T
23 127K37901 HCF feed/lift motor (MOT78-003)
(REP 80.27)
24 – Plate (P/O PL 80.60 Item 19)
25 – Spring (P/O PL 70.45 Item 11)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
