Xerox VersaLink B7025 Service Manual

April 2017
3-29
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
IQS 7, IQS 8
Imaqe Quality
Launch Issue

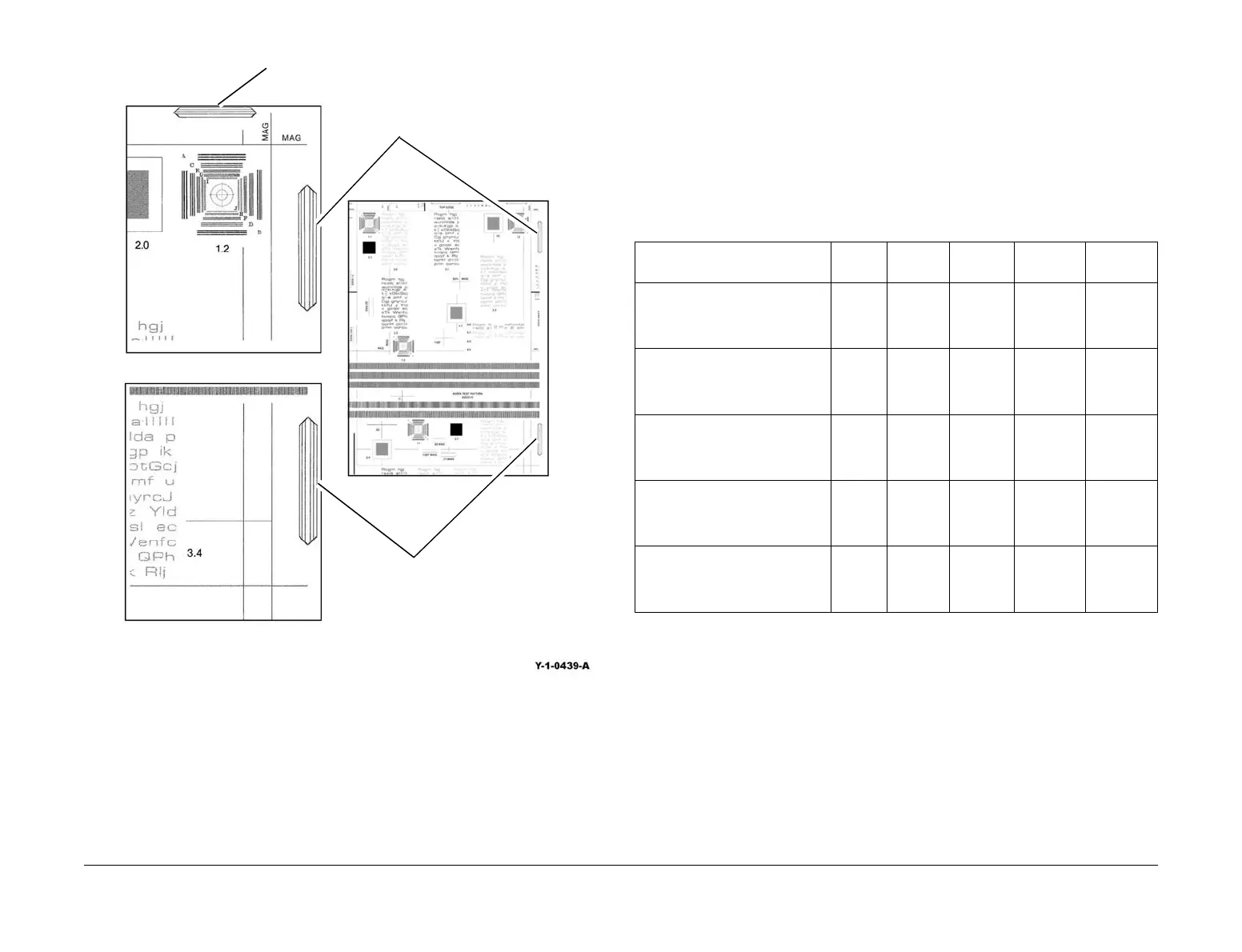

Figure 1 Registration measurement
IQS 8 Magnification
Documents
Perform dC126, make selections to print the test pattern on A3 or 11x17 inch paper.
Specifications
Refer to Table 1.
NOTE: For a description of the print/copy orientation definitions, refer to GP 31 Print/Copy Ori-
entation Definitions.
Magnification measurement
Make copies of the registration test pattern from the document glass and through the DADF.
Compare the dimensions Lss between the original print and the copies, Figure 1 and Figure 2.
Corrective action
Perform ADJ 60.4 IIT Image Ratio.
Area A lead edge
Area B lead edge
Area C top edge
Table 1 Magnification
Parameter Nominal Minimum Maximum
Dimension
Lss
Dimension
Lfs
In process direction from the
platen. A3 80gsm (8.5x11 inch
20lb) papers.
100% 99.3% 100.7% 400+/-
2.8mm
(15.75 +/-
0.11inch)
-
Cross process direction from the
platen. A3 80gsm (8.5x11 inch
20lb) papers.
100% 99.3% 100.7% - 277+/-
1.9mm
(10.91 +/-
0.075 inch)
From CVT or DADF. A3 80gsm
(8.5x11 inch 20lb) papers.
100% 99.5% 101% 398to
404mm
(15.67 to
15.91inch)
274.2 to
279.8mm
(10.80 to
11.02 inch)
In process and cross process
direction print. A3 80gsm (8.5x11
inch 20lb) papers.
100% 99.6% 100.4% 400+/-
1.6mm
(15.75 +/-
0.063 inch)
277 +/-
1.1mm
(7.48 +/-
0.043 inch)
In process and cross process
direction print. For all other
papers.
100% 99.5% 100.5% 400+/-
2mm
(15.75 +/-
0.079 inch)
277 +/-
1.39mm
(7.48 +/-
0.055 inch)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
