Xerox VersaLink B7025 Service Manual

April 2017
5-101
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.67
Parts Lists
Launch Issue

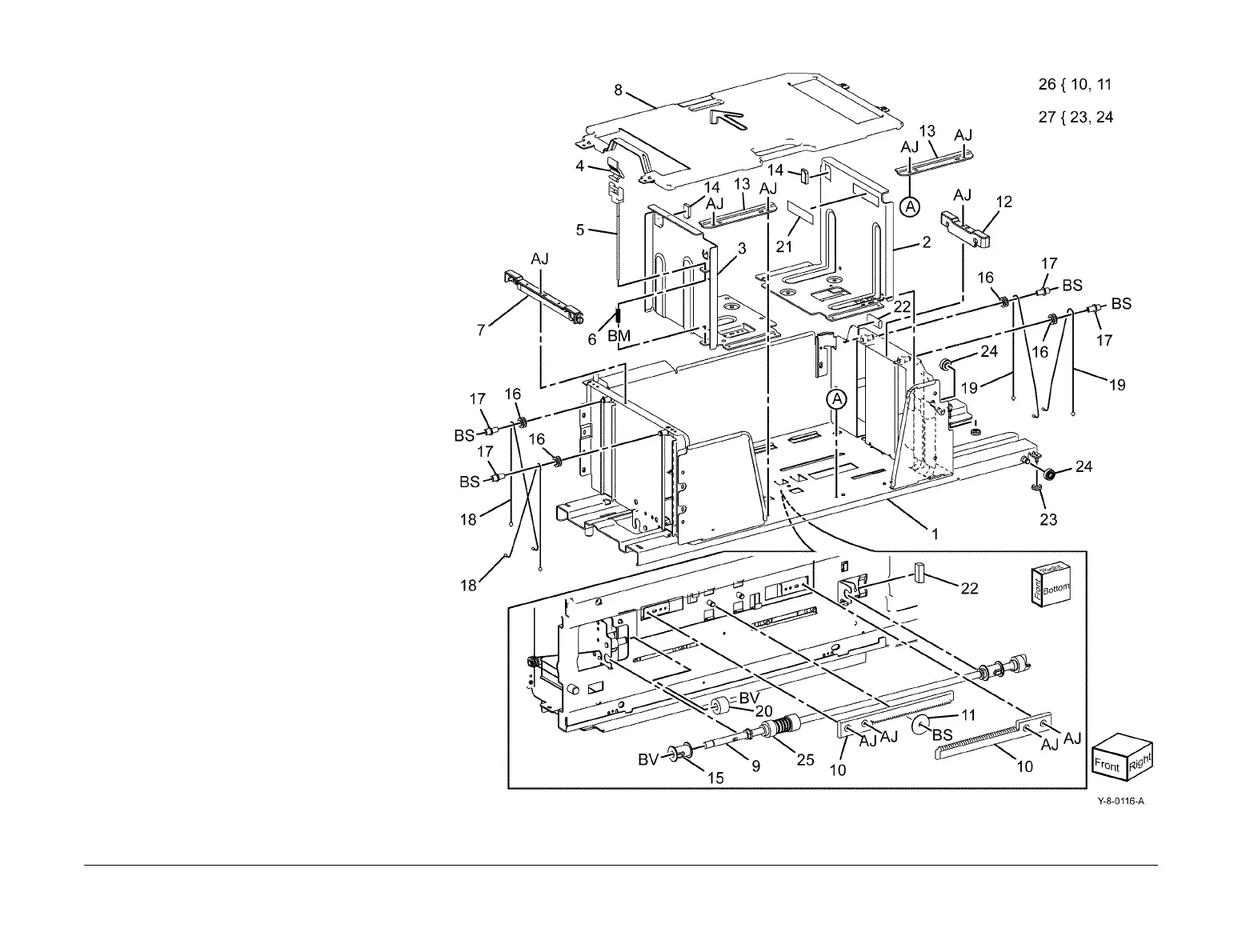

PL 70.67 TTM (3 of 3)
Item Part Description
1 – Tray 4 cassette assembly (Not
Spared)
2 – Side rear guide (Not Spared)
3 – Side front guide (Not Spared)
4 – Knob (Not Spared)
5 – Knob assembly (Not Spared)
6 – Spring (Not Spared)
7 – Guide - WF (Not Spared)
8 – Bottom plate (Not Spared)
9 006K35290 Lift shaft (REP 70.10)
10 – Rack gear (P/O PL 70.67 Item 26)
11 – Pinion (P/O PL 70.67 Item 26)
12 – Guide - W (Not Spared)
13 – Bracket (Not Spared)
14 819E04150 Pad (REP 70.10)
15 – Pulley (Not Spared)
16 – Pulley (Not Spared)
17 – Shaft - PL (Not Spared)
18 – Front lift cable (Not Spared)
19 – Rear lift cable (Not Spared)
20 – Size actuator (Not Spared)
21 – Label (Not Spared)
22 – Gasket (Not Spared)
23 – Lower roller (P/O PL 70.67 Item 27)
24 – Side roller (P/O PL 70.67 Item 27)
25 019K17181 Brake assembly
26 604K68260 Rack gear and pinion kit
27 604K68160 Roller kit
