Xerox VersaLink B7025 Service Manual

April 2017
5-40
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.06
Launch Issue
Parts Lists

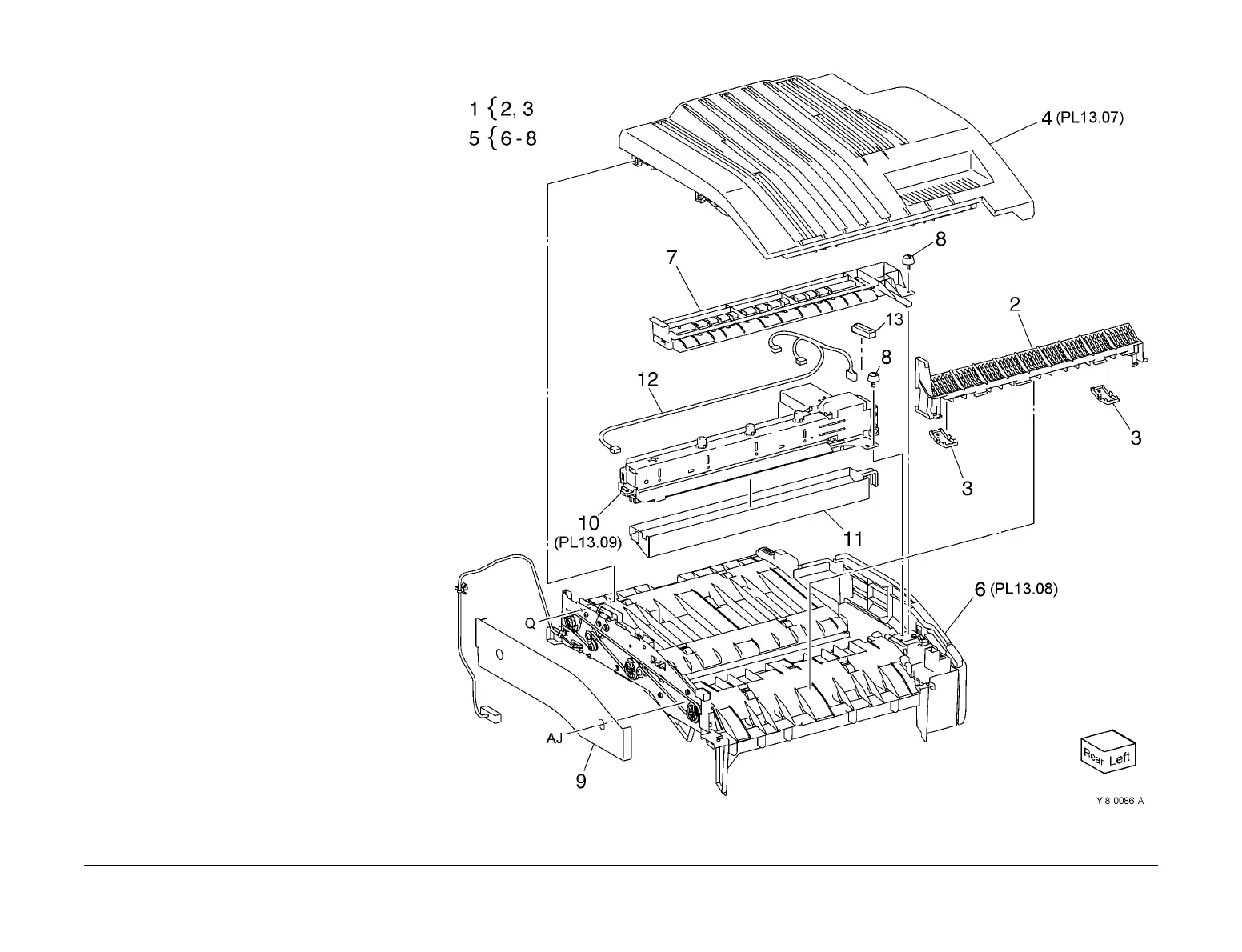

PL 13.06 H-Transport Assembly (2 of
5)
Item Part Description
1 – Left cover assembly (Not Spared)
2 – Left cover (P/O PL 13.06 Item 1)
3 – Paper guide (P/O PL 13.06 Item 1)
4 – Top cover assembly (Not Spared)
5 – Lower chute assembly (Not
Spared)
6 – Lower chute assembly (P/O PL
13.06 Item 5)
7 – Chute assembly (P/O PL 13.06
Item 5)
8 – Thumb screw (P/O PL 13.06 Item
5)
9 – Rear cover (Not Spared)
10 180K00393 Punch assembly (2/3 Hole) (REP
13.2, ADJ 13.1)
– 180K00403 Punch assembly (2/4 Hole) (REP
13.2, ADJ 13.1)
11 695K19403 Punch box
12 – Wire harness (Not Spared)
13 – Connector cover (Not Spared)
NOTE: Refer to PL 31.05 for the punch assembly kits.
