Xerox VersaLink B7025 Service Manual

April 2017
4-182
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.6, REP 80.7
Launch Issue
Repairs and Adjustments
REP 80.6 Tray 2 Feed/Retard/Nudger Roll (1TM)
Parts List on PL 80.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed, retard and nudger rolls must be installed at the same time.
1. Pull out tray 1 and tray 2. Remove the paper.
2. Remove tray 1 and tray 2.
3. Open the left cover assembly, PL 70.15 Item 12.

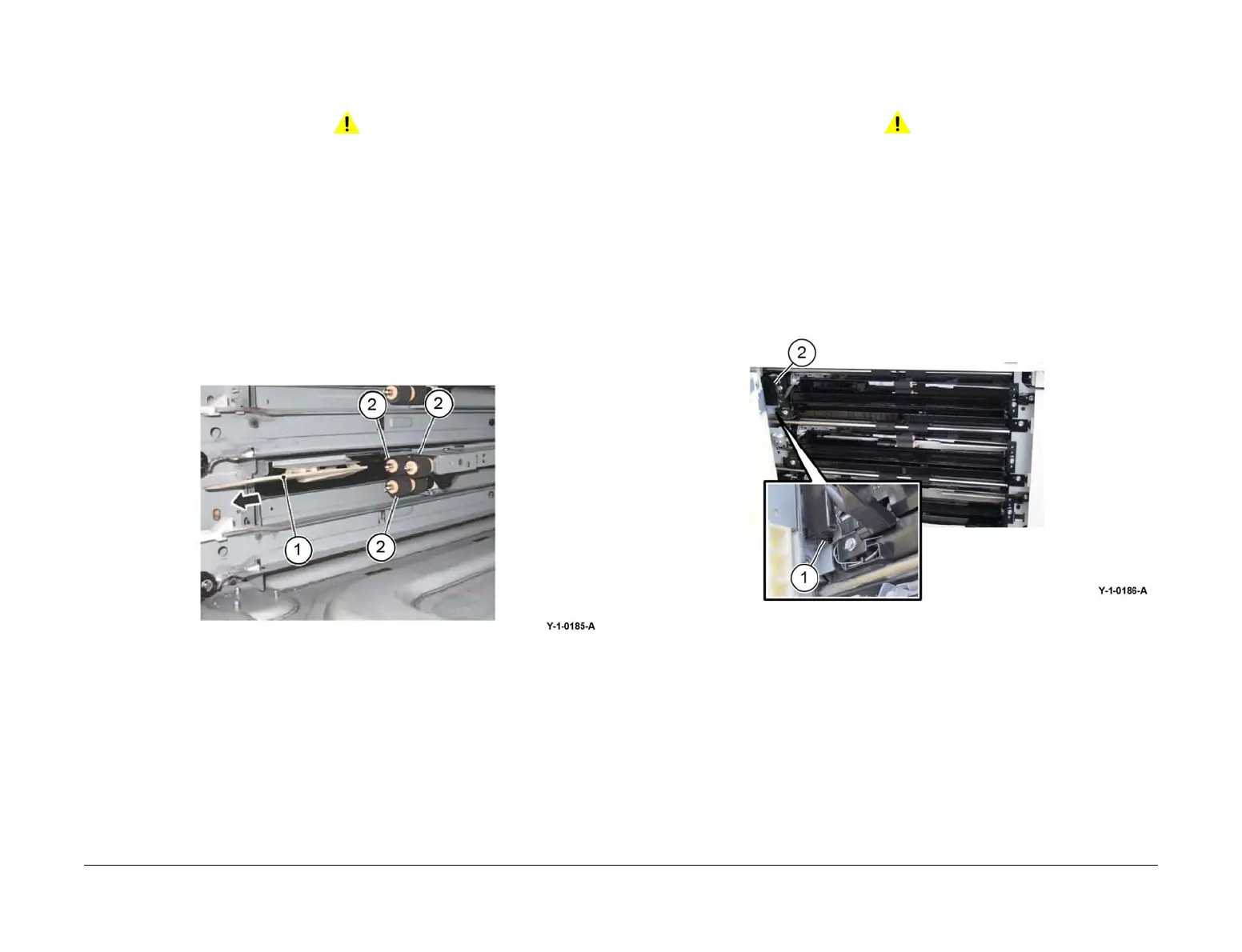

4. Remove the tray 2 feed, retard and nudger rolls (1TM), Figure 1:
a. Slide the chute (1) forwards.
b. Release the clip, then remove the tray 2 feed, retard and nudger rolls (2).
Figure 1 Roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new tray 2 feed, retard and nudger rolls are installed, enter dC135 HFSI Counter. Reset
the HFSI counter 954-801.
REP 80.7 Tray 2 Feeder Assembly (3TM)
Parts List on PL 80.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Pull out tray 2. Remove the paper.
2. Remove tray 2.
3. Open the left cover assembly, PL 70.20 Item 11.
4. Remove the ESD cover, Figure 1:
a. Disengage the hook (1).
b. Remove the ESD cover (2).
Figure 1 ESD cover removal

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
