Xerox VersaLink B7025 Service Manual

April 2017
5-115
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.30
Parts Lists
Launch Issue

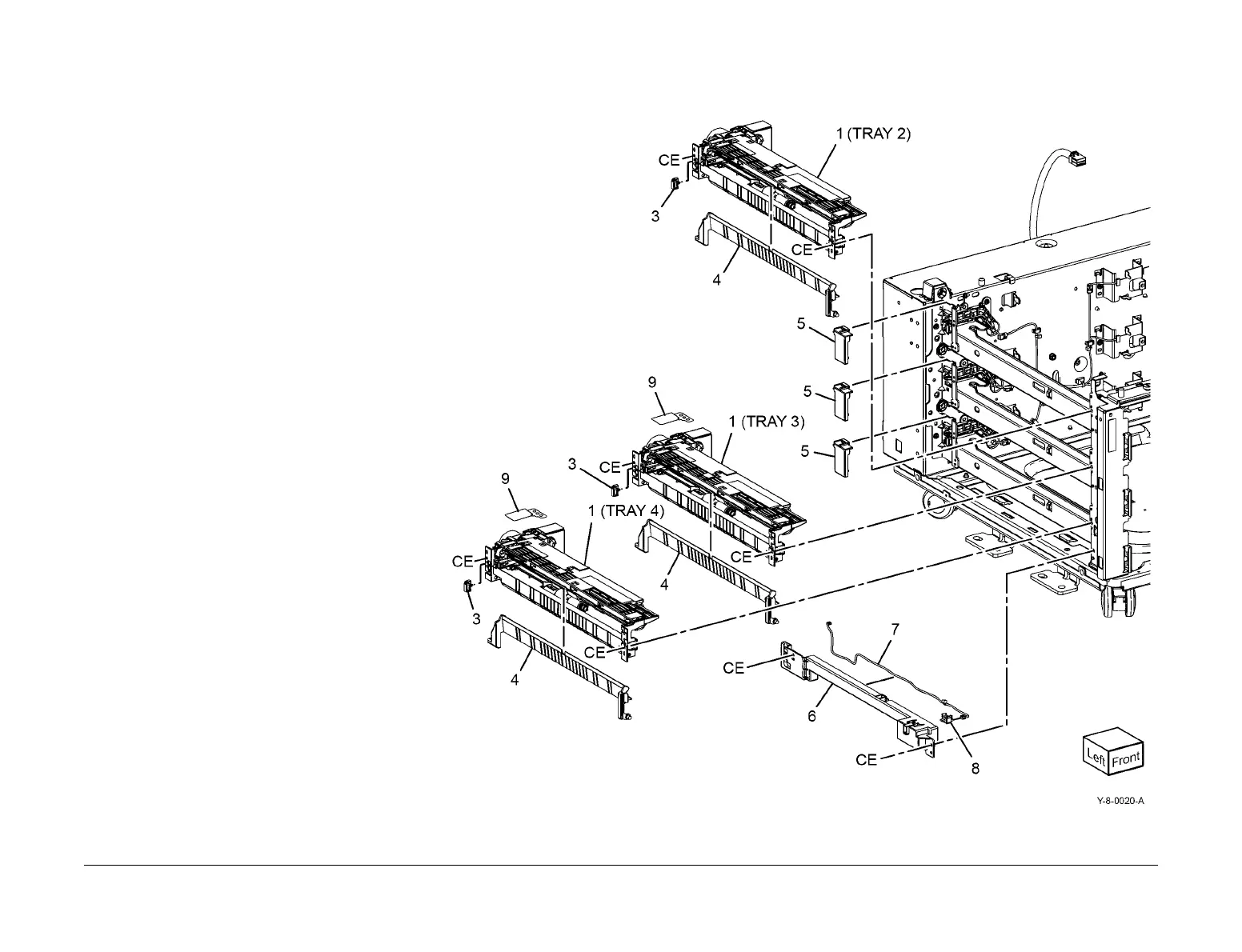

PL 80.30 3TM Feeders
Item Part Description
1 859K09730 Tray 2/3/4 feeder assembly (REF:
PL 80.20, PL 80.25) (See NOTE)
(tray 2 - REP 80.7, tray 3 - REP
80.8, tray 4 - REP 80.9)
2 – Not used
3 920W01209 Locking clamp
4 054E33803 Feed chute
5 – ESD cover (Not Spared)
6 – IL cover assembly (Not Spared)
7 – IL harness assembly (Not Spared)
8 110E11580 TM left hand interlock switch (S77-
306)
9 – FDR 2T cover (Not Spared)
NOTE: HFSI. To reset the HFSI counter, refer to dC135.
