Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
DADF
NOTE: A video is available on the EDOC that provides additional information. The video is
accessible from the Library menu on the Service Interface.
Document Feeding Overview
The duplexing automatic document feeder (DADF) scans single or multi-page documents auto-
matically. Single-sided and double-sided documents can be fed. Mixed sizes can be run after
the appropriate selections are made on the UI
The DADF can invert a document to scan images on both sides, and it employs a constant
velocity transport (CVT) system. With the CVT system, the lamp carriage of the IIT is fixed at a
specified position (the scan position) where images are scanned as documents feed across the
platen at a constant speed. Refer to Figure 1.

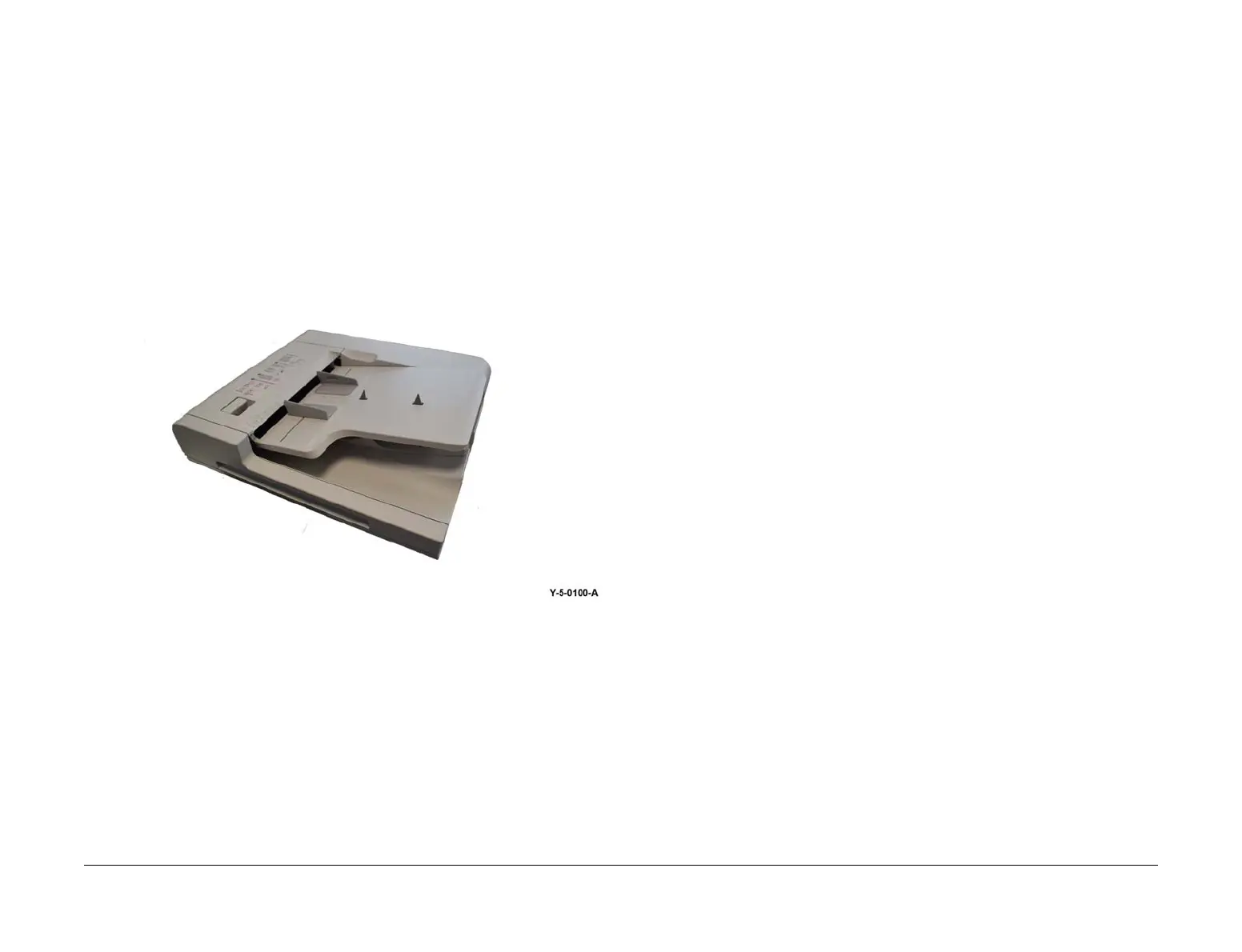

Figure 1 DADF
The DADF performs the following functions:
• Automatically separates and feeds documents for copying.
• Automatically senses the document size.
• De-skews the documents before they are copied.
• Automatically inverts two-sided documents for duplex copying.
• Automatically stacks copied documents on the exit tray in the correct order and same ori-
entation in which they were fed.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
