Xerox VersaLink B7025 Service Manual

April 2017
8-12
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview

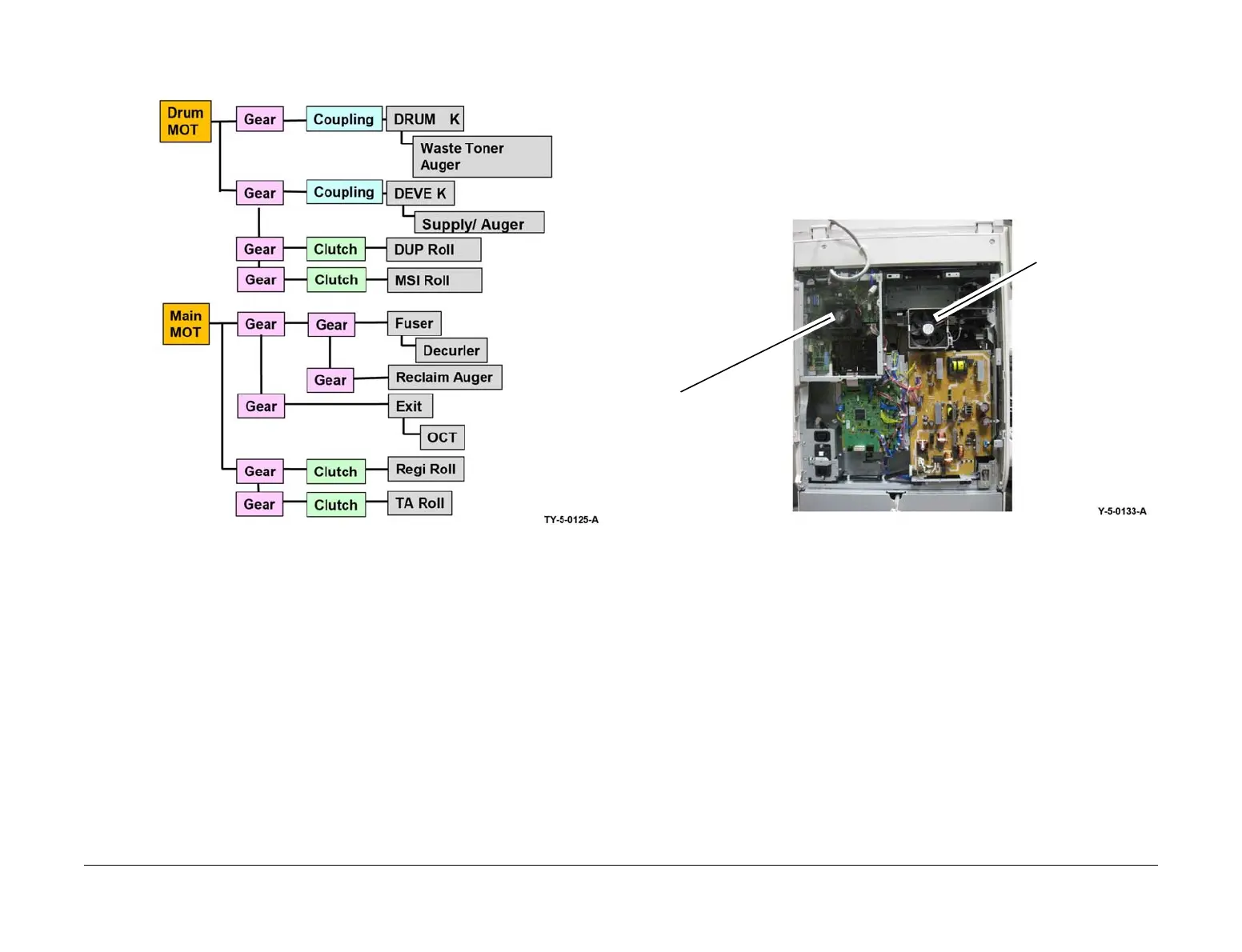

The drive train for the main motors is show in the schematic in Figure 3.
Figure 3 Main drives
Refer also to BSD 4.1 Main Drive Control.
Cooling
The VersaLink® B7025/B7030/B7035 contains 2 main cooling fans. No filters are used in any
of the fan duct work.
• Fuser unit exhaust fan, PL 40.15 Item 4 inside the upper rear cover. Refer to Figure 4.
• Marking fan, PL 40.15 Item 8 at the front of the machine inside the inner cover. The fan
position is not visible on the inner cover.
The ESS PWB PL 3.10 Item 6 also features a dedicated fan to cool components on the board.
Figure 4 Fuser unit exhaust fan
Fuser unit exhaus
t
fan
ESS PWB fan

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
