Xerox VersaLink B7025 Service Manual

April 2017
4-149
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.4
Repairs and Adjustments
Launch Issue
REP 60.4 Lamp Assembly
Parts List on PL 60.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
Do not touch the chip on the lamp assembly.

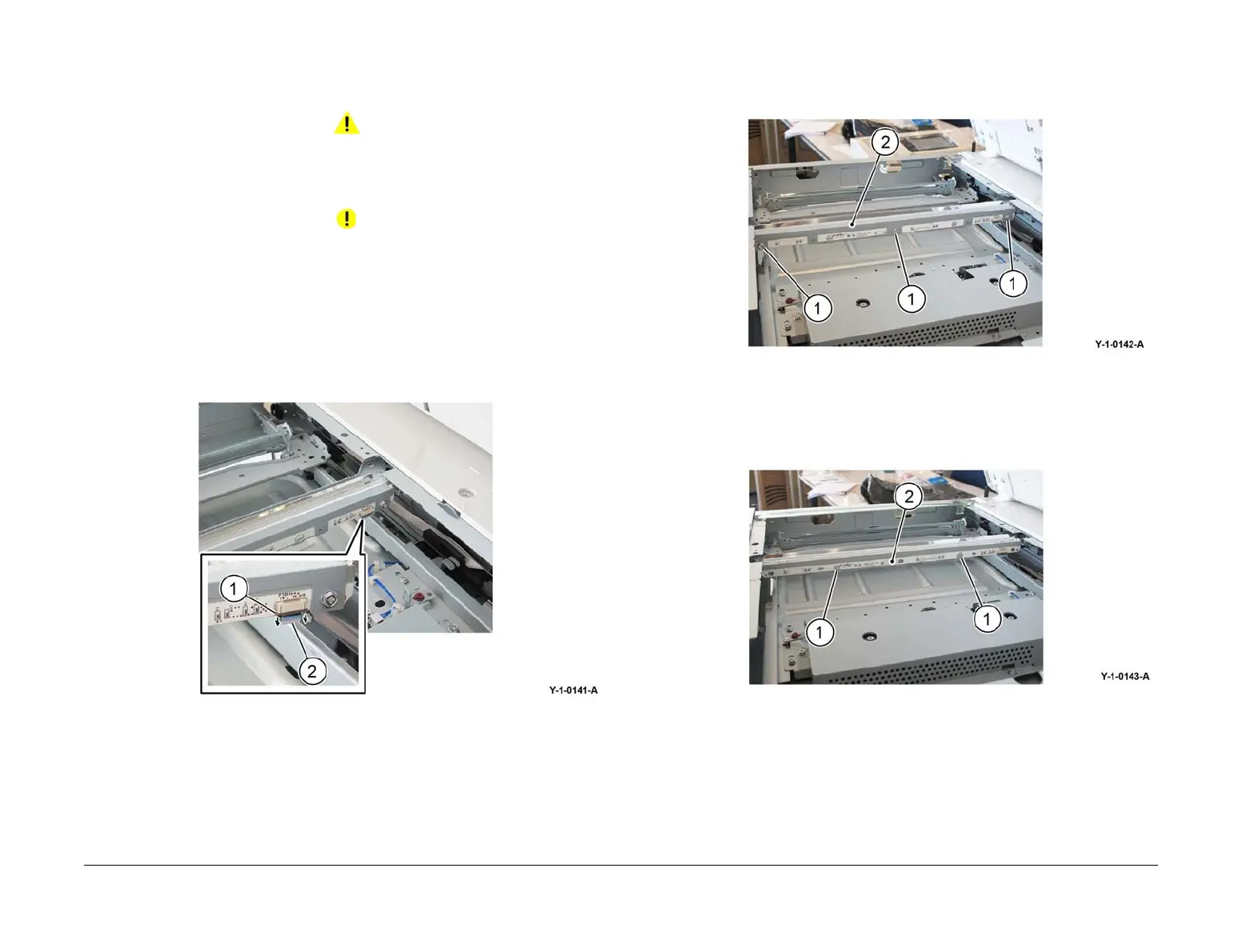

1. Open the DADF.
2. Remove the document glass, REP 60.1
3. Move the full rate carriage to the cutouts in the frame.
4. Disconnect the FFC LED cable assembly, Figure 1:
a. Move the connector housing catch (2) in the direction of the arrows.
b. Disconnect the FFC LED cable assembly.
Figure 1 FFC LED cable assembly
5. Remove the LED bracket, Figure 2:
a. Remove three screws (1).
b. Remove the LED bracket (2).
Figure 2 LED bracket removal
6. Remove the lamp assembly, Figure 3:
a. Remove two screws (1).
b. Remove the lamp assembly (2).
Figure 3 Lamp assembly removal

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
