Xerox VersaLink B7025 Service Manual

April 2017
4-148
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.3
Launch Issue
Repairs and Adjustments

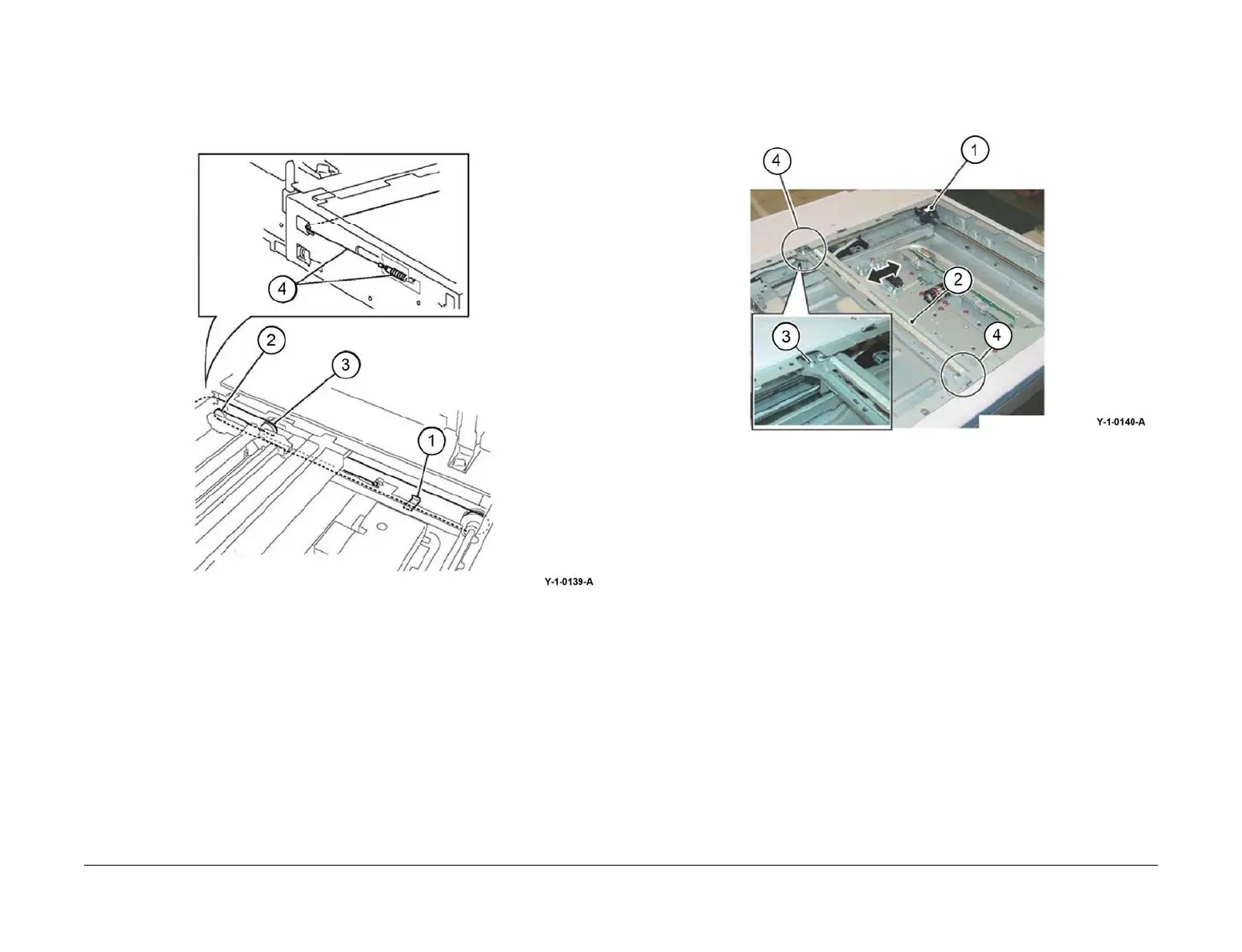

6. Attach the extension spring hanger end of the carriage cable, Figure 11:
a. Remove the tape (1) that secures the cable.
b. Wrap the cable on the pulley (2).
c. Wrap the cable on the pulley at the rear of the half rate carriage (3).
d. Attach the extension spring on the cable and hook it to the Frame (4).
Figure 11 Spring attachment
7. Loosely attach the cable to the full rate carriage, Figure 12:
a. Remove the tape (1).
b. Move the full rate carriage (2) to the cutout (4) in the frame.
c. Loosely attach the cable to the full rate carriage (3).
Figure 12 Full rate carriage attachment
8. Perform ADJ 60.1 Full/Half Rate Carriage Position Adjustment.
9. Reinstall all removed components.
