Xerox VersaLink B7025 Service Manual

April 2017
8-28
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Paper Supply and Feed
NOTE: A video is available on the EDOC that provides additional information. The video is
accessible from the Library menu on the Service Interface.
Media Supply
• Configurations
• Supported Media
• Paper Tray Elevation and Feeding: Trays 1, 2, 3 and 4
• Paper Size Detection: Trays 1, 2, 3 and 4
• No Paper Detection: trays 1, 2, 3 and 4
• Remaining Paper Indication
• Paper Tray Specifications: Trays 1 and 2
• Paper Tray Specifications: Tandem Tray Module (TTM)
• Tandem Tray Module (TTM): Tray 3 components
• Tandem Tray Module (TTM): Tray 4 Components
• Bypass tray (Tray 5)
• High Capacity Feeder (HCF) (Tray 6)
NOTE: Refer to Block Schematic Diagrams (BSDs) chain 7 for paper supply component
wiring and interconnection details.
Configurations
There are three basic Xerox® VersaLink® B7025/B7030/B7035 machine paper supply configu-
rations, Figure 1:
• Desktop machine with paper tray 1, PL 70.05.
• Stacked machine with paper tray 1 and 1 tray module (1TM), PL 70.15.
• Stacked machine with paper tray 1 and tandem tray module (TTM), PL 70.65.

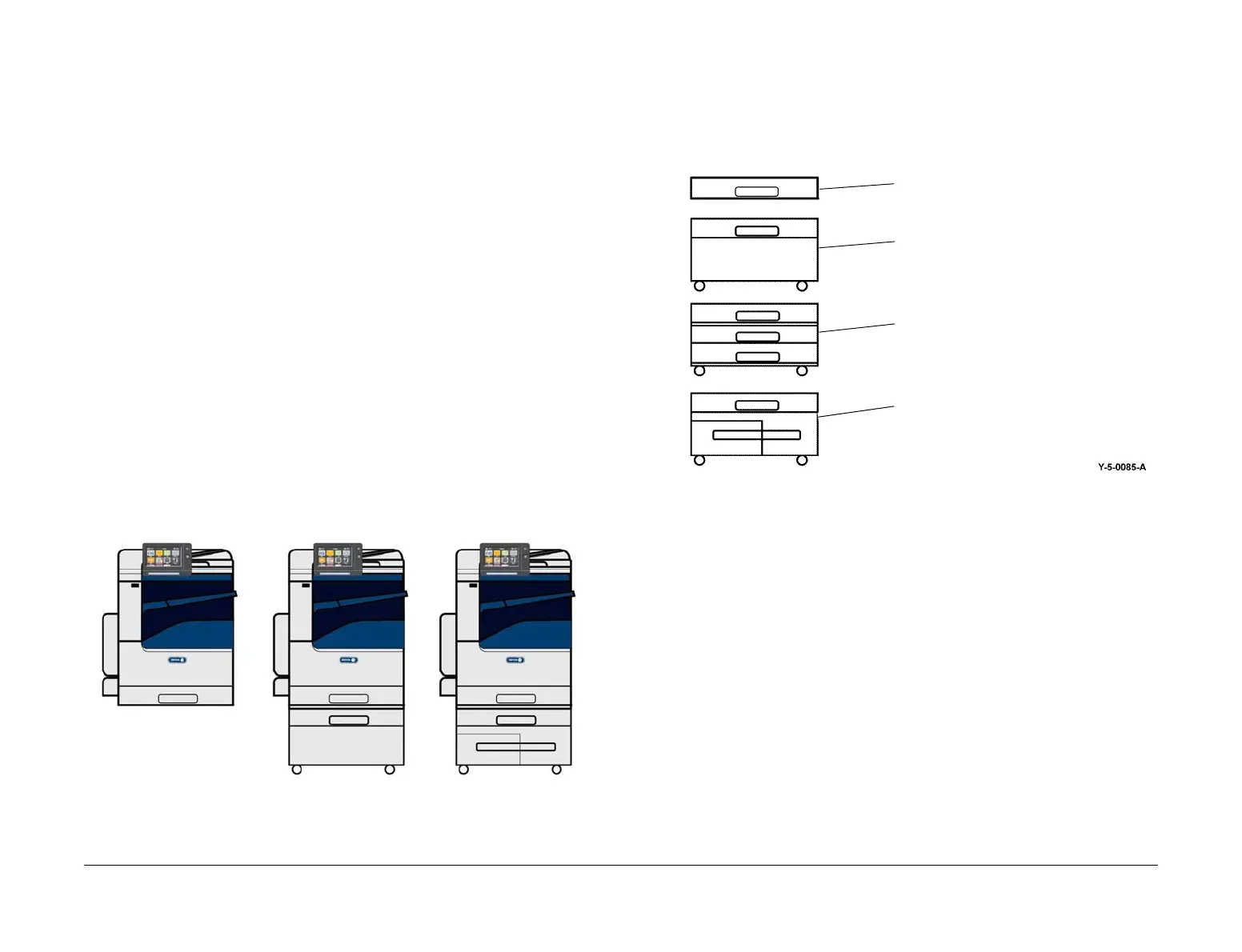

Figure 1 Basic configuration
There are four Xerox® VersaLink® B7025/B7030/B7035 optional paper supply configurations
for the desktop machine, Figure 2:
• Desktop machine with single tray module (STM), PL 70.25.
• Desktop machine with 1TM, PL 70.15.
• Desktop machine with 3 tray module (3TM), PL 70.20.
• Desktop machine with TTM, PL 70.65.
Figure 2 Desktop machine options
Desktop machine with
paper tray 1.
Desktop machine with
paper tray 1 and 1TM
Desktop machine with
paper tray 1 and TTM
STM
1TM
3TM
TTM

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
