Xerox VersaLink B7025 Service Manual

April 2017
8-29
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
All the Xerox® VersaLink® B7025/B7030/B7035 machine configurations feature a bypass tray
(Tray 5), PL 70.30. The machine can also be configured with an optional high capacity feeder
(HCF), PL 70.45 and Figure 3.

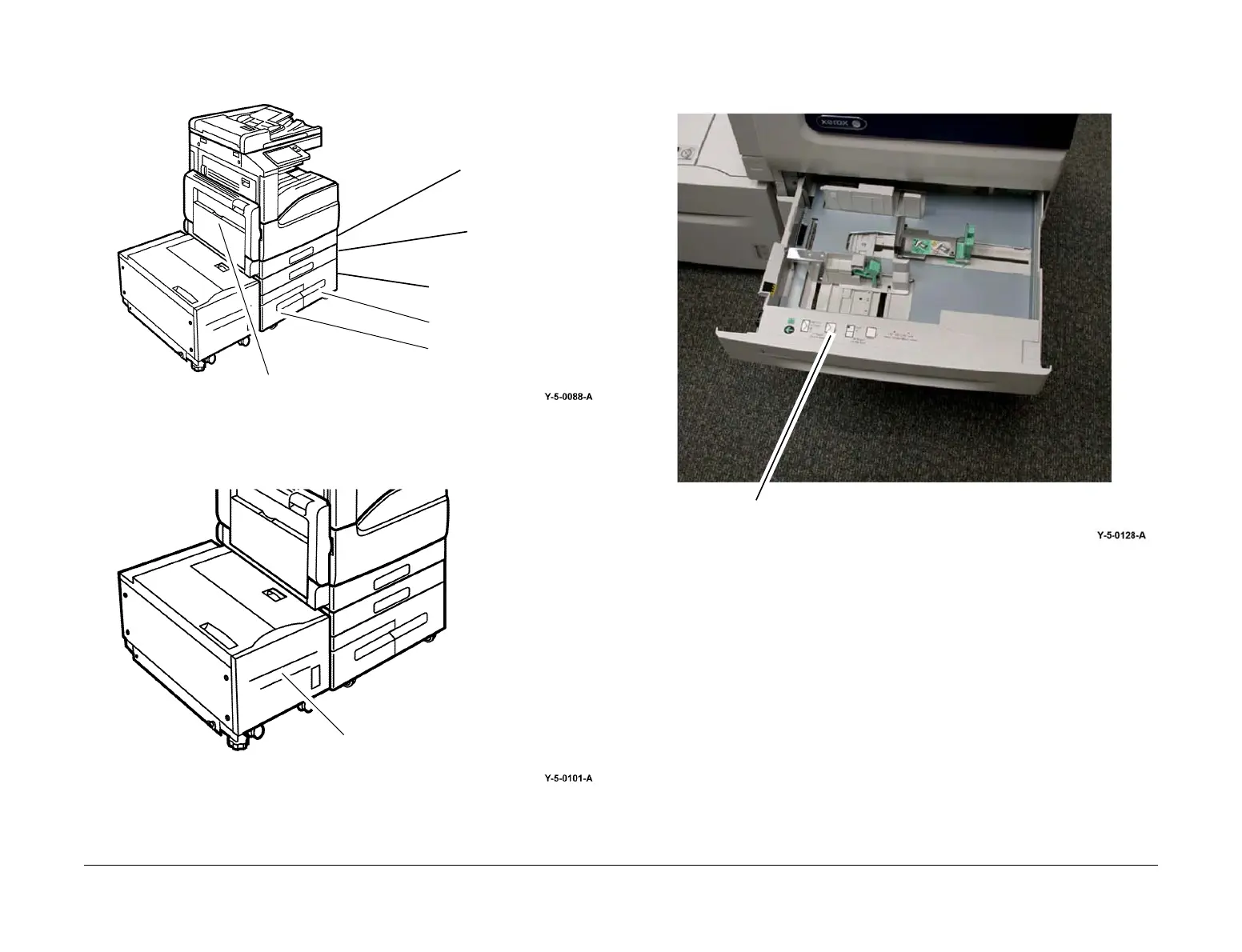

Figure 3 Media supply trays
The HCF can only be installed on machines configured with either a 1TM, 3TM or TTM, Figure 4.
Figure 4 High capacity feeder
An optional envelope tray is available, PL 70.100 Item 1. The envelope tray is installed by the
customer in the tray 1 position. Refer to Figure 5.
Figure 5 Envelope tray
Supported Media
Refer to GP 15 for the paper and media size specifications of the various paper trays.
Paper Tray Elevation and Feeding: Trays 1, 2, 3 and 4
NOTE: The elevation mechanism is similar trays 3 and 4 of the TTM but on different on the
HCF.
Refer to the relevant sections:
• Tandem Tray Module (TTM): Tray 3 components.
• Tandem Tray Module (TTM): Tray 4 Components.
• High Capacity Feeder (HCF) (Tray 6).
Paper trays 1, 2, 3 and 4 all have similar paper elevator systems that lift the paper stack into
the paper feed position. The paper feed side of a hinged bottom plate is raised by a lift shaft
until the paper stack is at the correct height to feed the top sheet of paper, Figure 6. The tray
drops mechanically when the tray is opened as the gears disengage.
Tandem Tray Module
(TTM - Trays 3 and 4)
Tray 5 (Bypass tray)
Tray 1
Tray 2
Tray 3
Tray 4
High Capacity Feeder
Envelope tray

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
