Xerox VersaLink B7025 Service Manual

April 2017
5-44
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.10
Launch Issue
Parts Lists

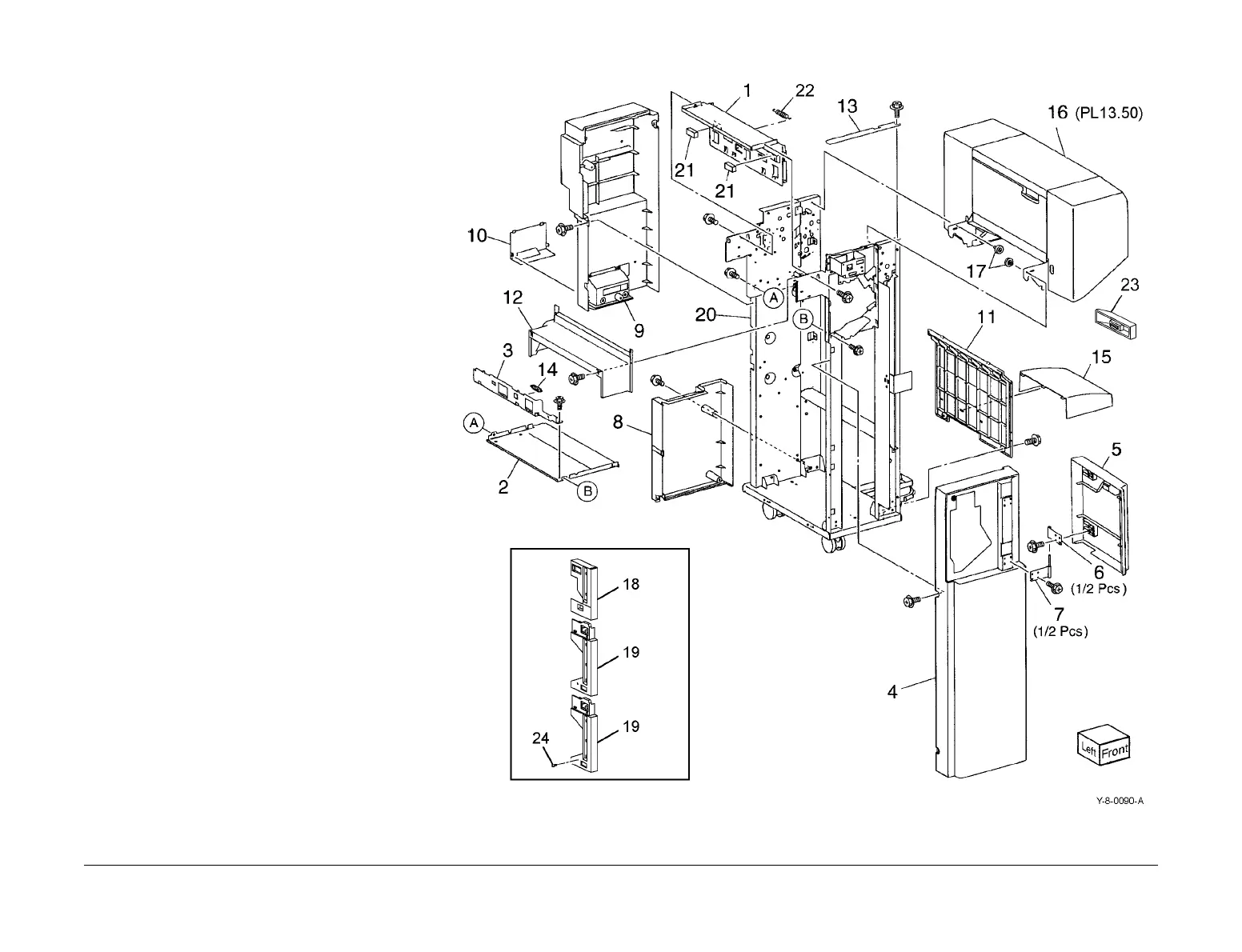

PL 13.10 Office Finisher LX Covers
Item Part Description
1 848E22730 Plate
2 – Lower plate (Not Spared)
3 – Docking lever (Not Spared)
4 848E75671 Front cover (REP 13.6)
5 848K57230 Front door
6 – Bracket (Not Spared)
7 – Hinge (Not Spared)
8 – Rear lower cover (Not Spared)
(REP 13.8)
9 – Rear upper cover (Not Spared)
(REP 13.7)
10 – Connector cover (Not Spared)
11 848E75711 Stacker lower cover (REP 13.11)
12 – LH cover (Not Spared)
13 – Cover (Not Spared)
14 – Spring (Not Spared)
15 – Foot cover (Not Spared) (REP
13.10)
16 801K30703 Booklet assembly (REP 13.31)
17 – Thumb screw (Not Spared)
18 – Upper adjust cover (Not Spared)
19 – Lower adjust cover (Not Spared)
20 – Base frame assembly (Not Spared)
21 835E20050 Gasket
22 – Extension spring (Not Spared)
23 – Paper guide (Not Spared)
24 – Thumb screw (Not Spared)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
