Xerox VersaLink B7025 Service Manual

April 2017
4-200
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.21
Launch Issue
Repairs and Adjustments
REP 80.21 HCF Feeder
Parts List on PL 80.60, PL 80.61 and PL 80.62
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Move the HCF away form the machine.
2. Open the feeder top cover, PL 70.55 Item 7.

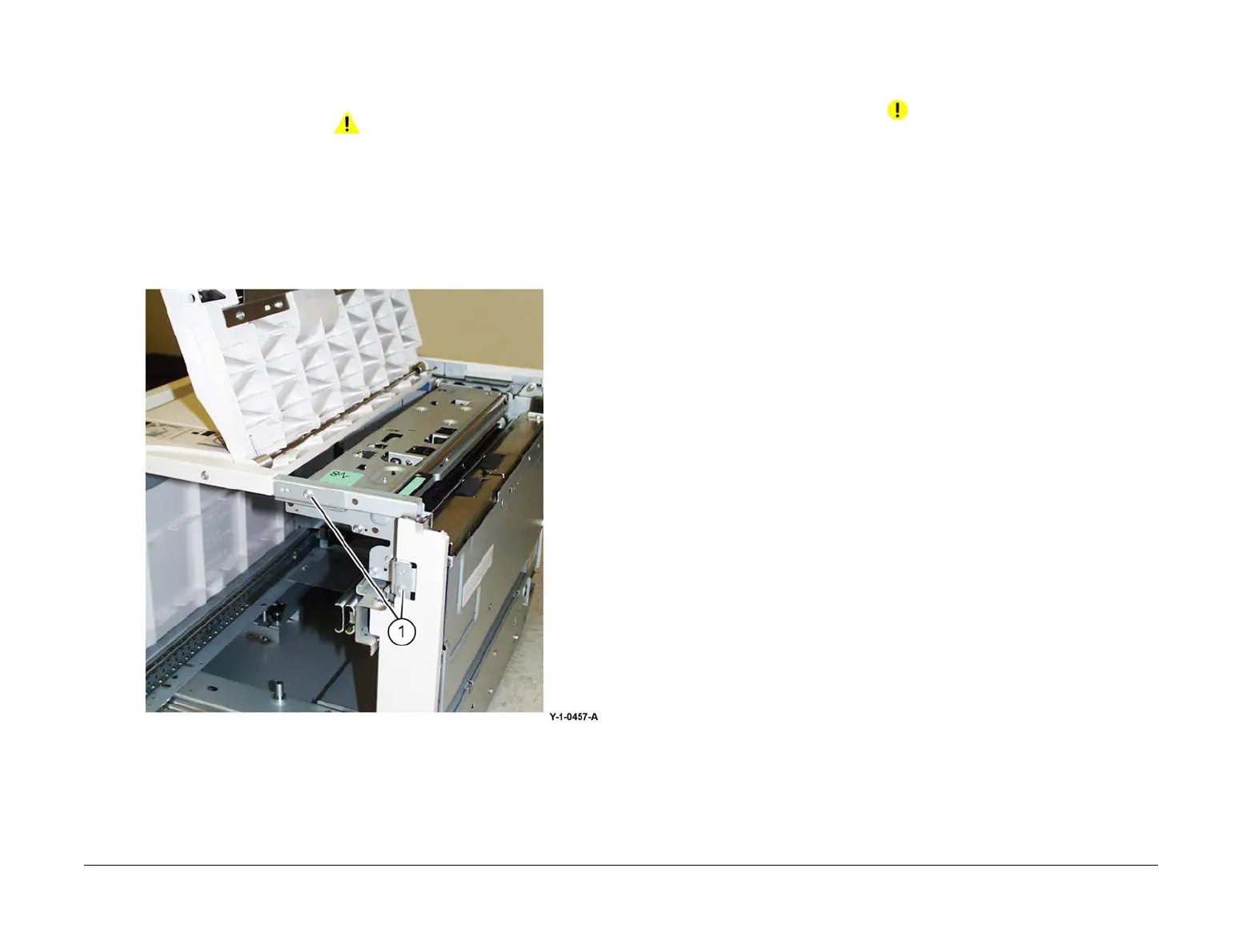

3. Remove two screws (1) that secure the HCF feeder to the rail, Figure 1.
Figure 1 Feeder securing screws
4. Slide the HCF feeder forwards to remove.
Replacement
1. Position the HCF feeder guides onto the internal HCF rail.
2. Slide the HCF feeder back into the HCF until it seats.
CAUTION
Do not over tighten the HCF Feeder screws.
3. Reinstall the two securing screws.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
