REP 80.18
Launch Issue
Repairs and Adjustments
3. Pull out the bossed (1) from the mounting holes. Release the hook (2), then remove the
hinge front cover, Figure 2.

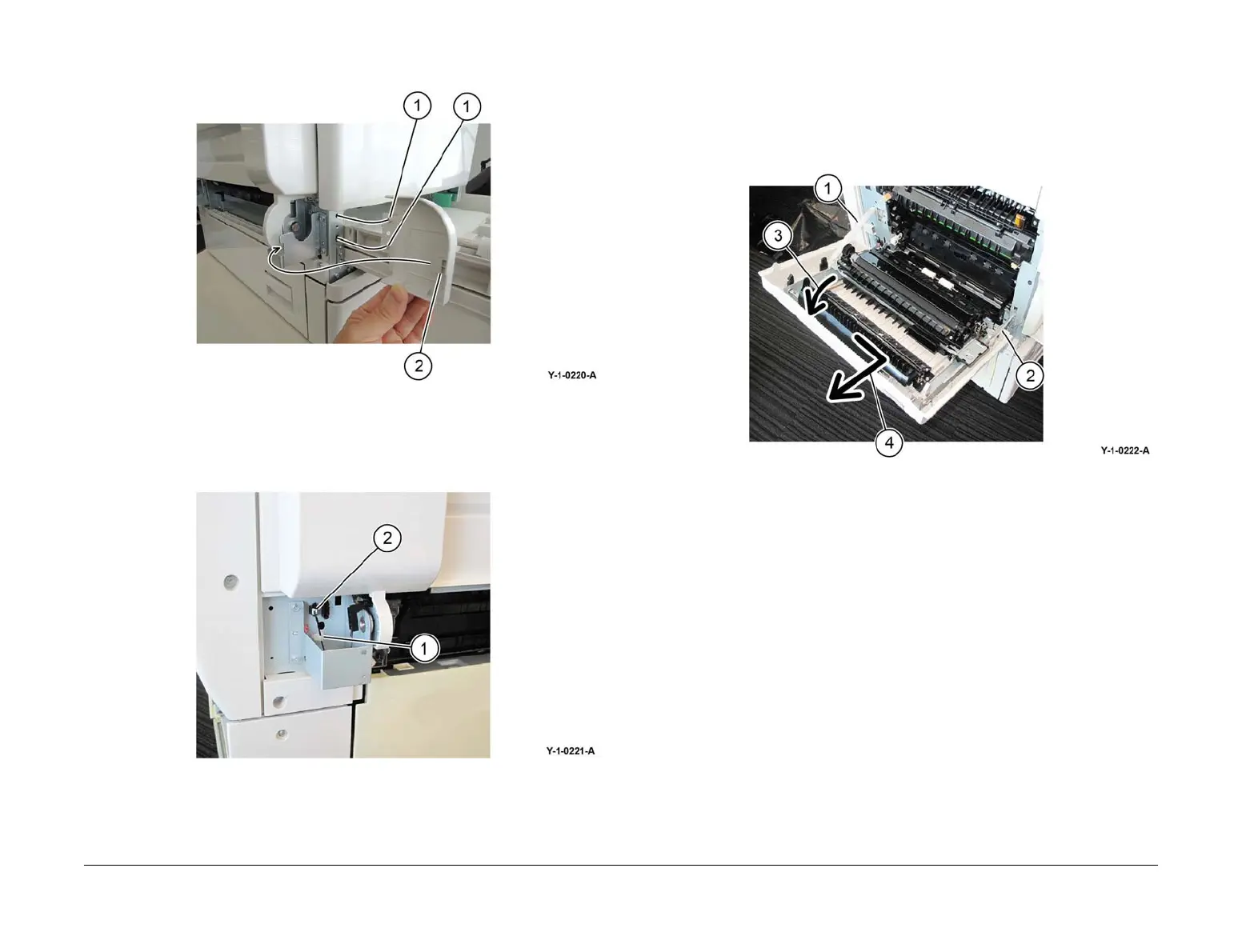

Figure 2 Hinge front cover removal
4. Disconnect the connector, Figure 3:
a. Release the harness from the retainer (1).
b. Disconnect the connector (2).
Figure 3 Connector
5. Remove the L/H cover, Figure 4:
a. Open the LH cover.
b. Rotate by 90 degrees, then disconnect the rear support (1).
c. Rotate by 90 degrees, then disconnect the front support (2).
d. Hold the L/H cover (3) open at 90 degrees.
e. Remove the L/H cover in the direction of the arrow (4).
Figure 4 LH cover removal
