Xerox VersaLink B7025 Service Manual

April 2017
6-45
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
dC126
General Procedures and Information
Launch Issue

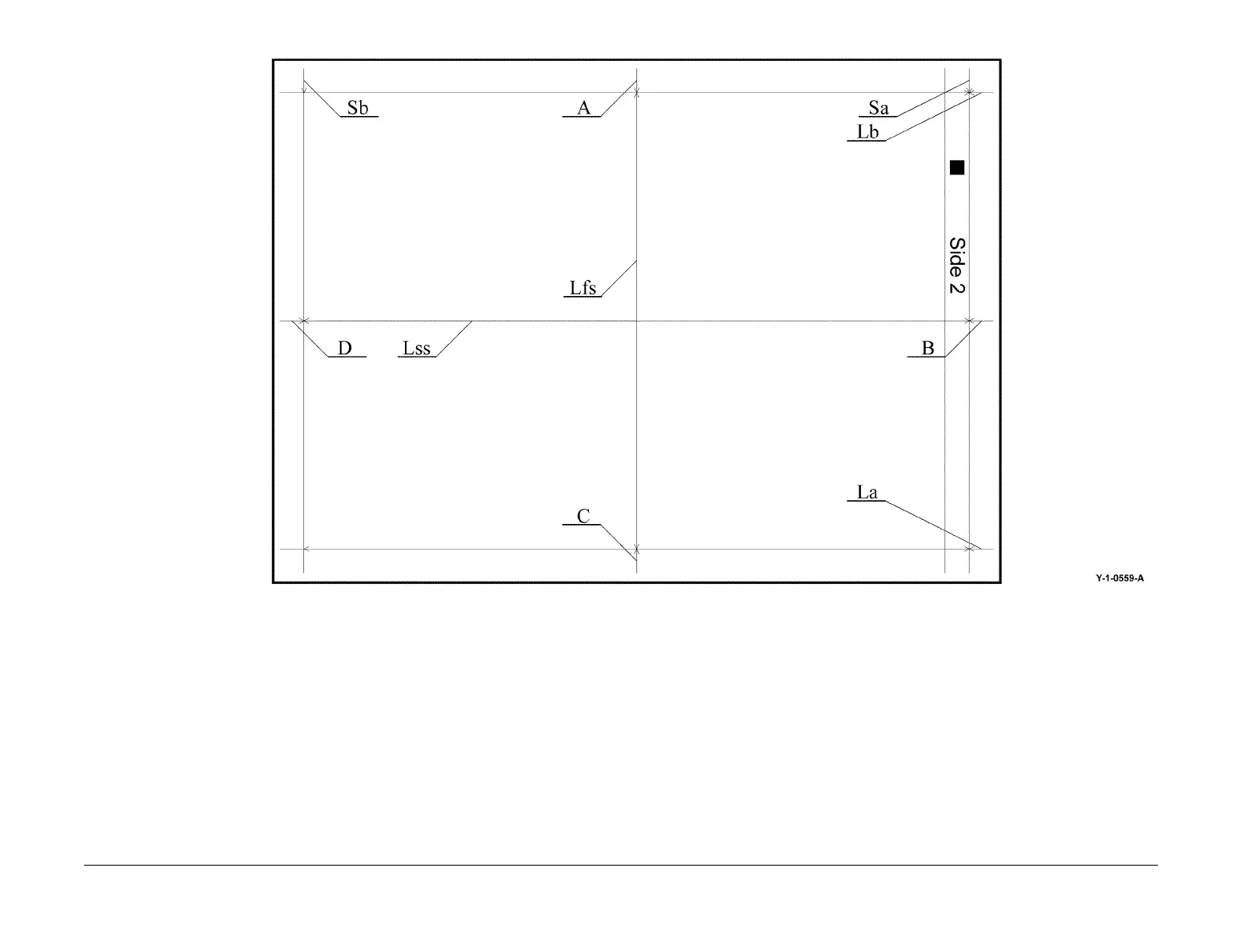

Figure 2 Registration test pattern side 2
5. Compare the registration of the image on side 1 and side two of the print with the specifi-
cation in IQ7 Registration. Compare the magnification of the image on side 1 and bide 2
of the print with the specification in IQ8 Magnification. If any measurement does not meet
the specifications, go to Registration Adjustment.
Registration Adjustment
1. This procedure uses side registration as an example. When performing other adjust-
ments, use the appropriate location on the test pattern. Refer to Purpose.
NOTE: The Sa and Sb locations marked on the test pattern indicate the distance from the
test pattern image to the edge of the paper.
2. On the printed test pattern, measure the distance (in millimeters) at point Sa from the line
to the edge of the paper on side 1 and side 2. Refer to Figure 1 and Figure 2.
3. Touch Side Registration, then Adjusted Side (Side 1).
4. Touch +/- to enter the measured value of position A for side 1.
NOTE: Touch A to open a keypad on which to enter the value.
5. Touch Side Registration, then Adjusted Side (Side 2).
6. Touch +/- to enter the measured value of position A for side 2.
NOTE: Touch B to open a keypad on which to enter the value.
7. After inputting the values for side 1 and side 2, touch Adjust to save the settings.
8. Exit diagnostics, GP 1.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
