April 2017
7-16
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Wiring Data

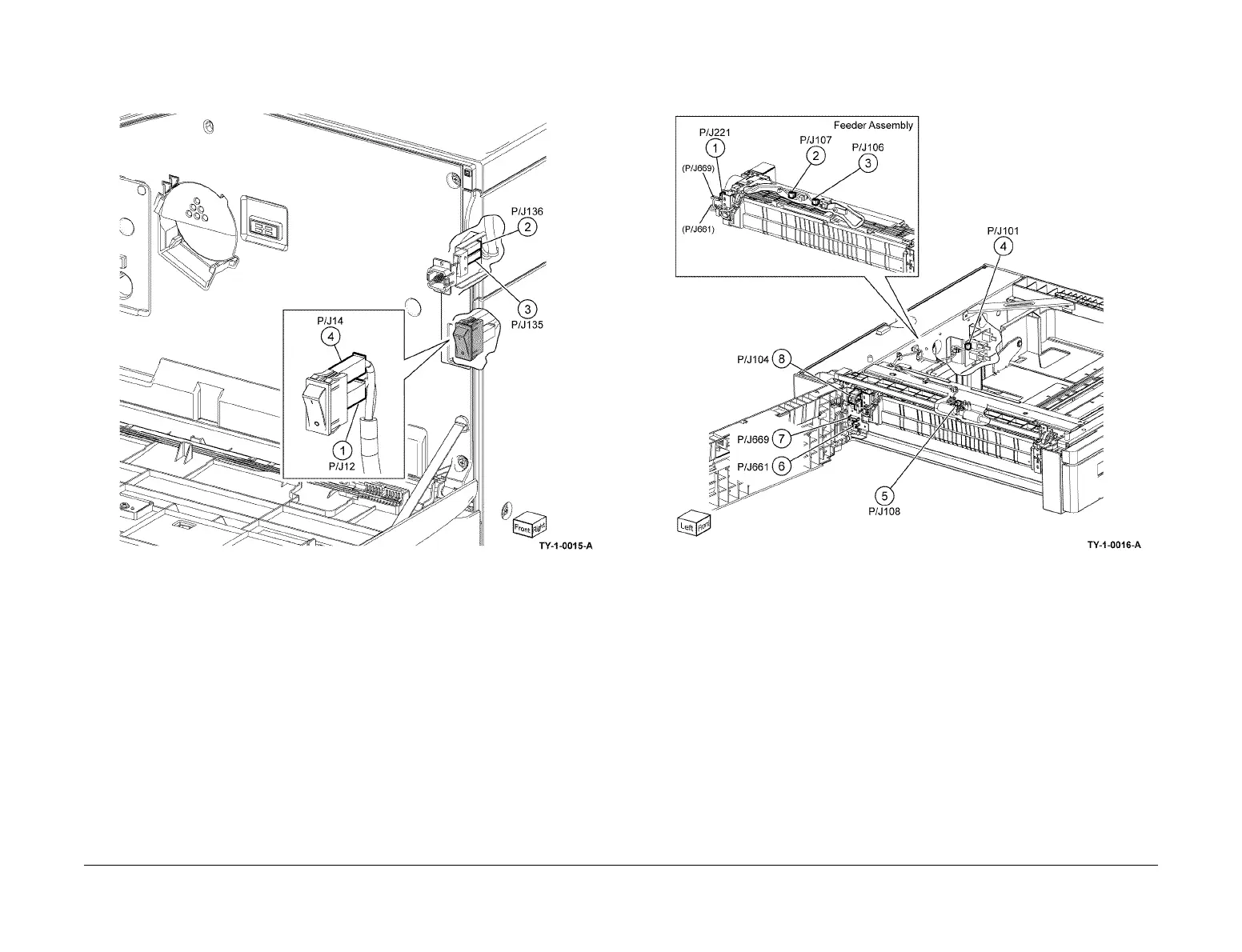

Front Cover Interlock Switch
Location: PL 1.05
Figure 15 Front cover interlock switch
Tray Module (STM) (1 of 2)
Location: PL 70.25
Figure 16 Tray module (STM) (1 of 2)
