April 2017
7-144
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

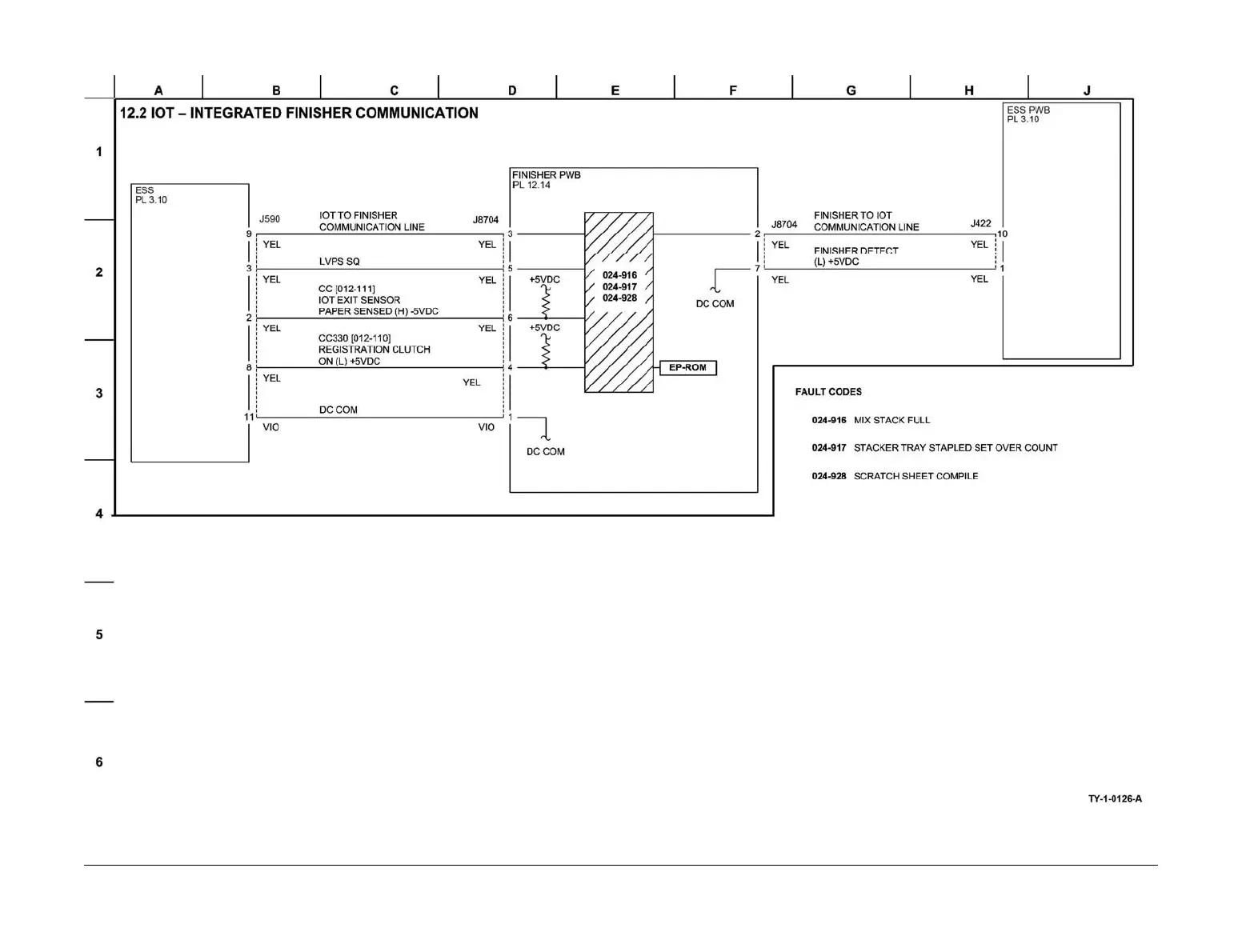

BSD 12.2 IOT to Integrated Office Finisher Communication
Figure 88 BSD 12.2
