April 2017
7-146
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

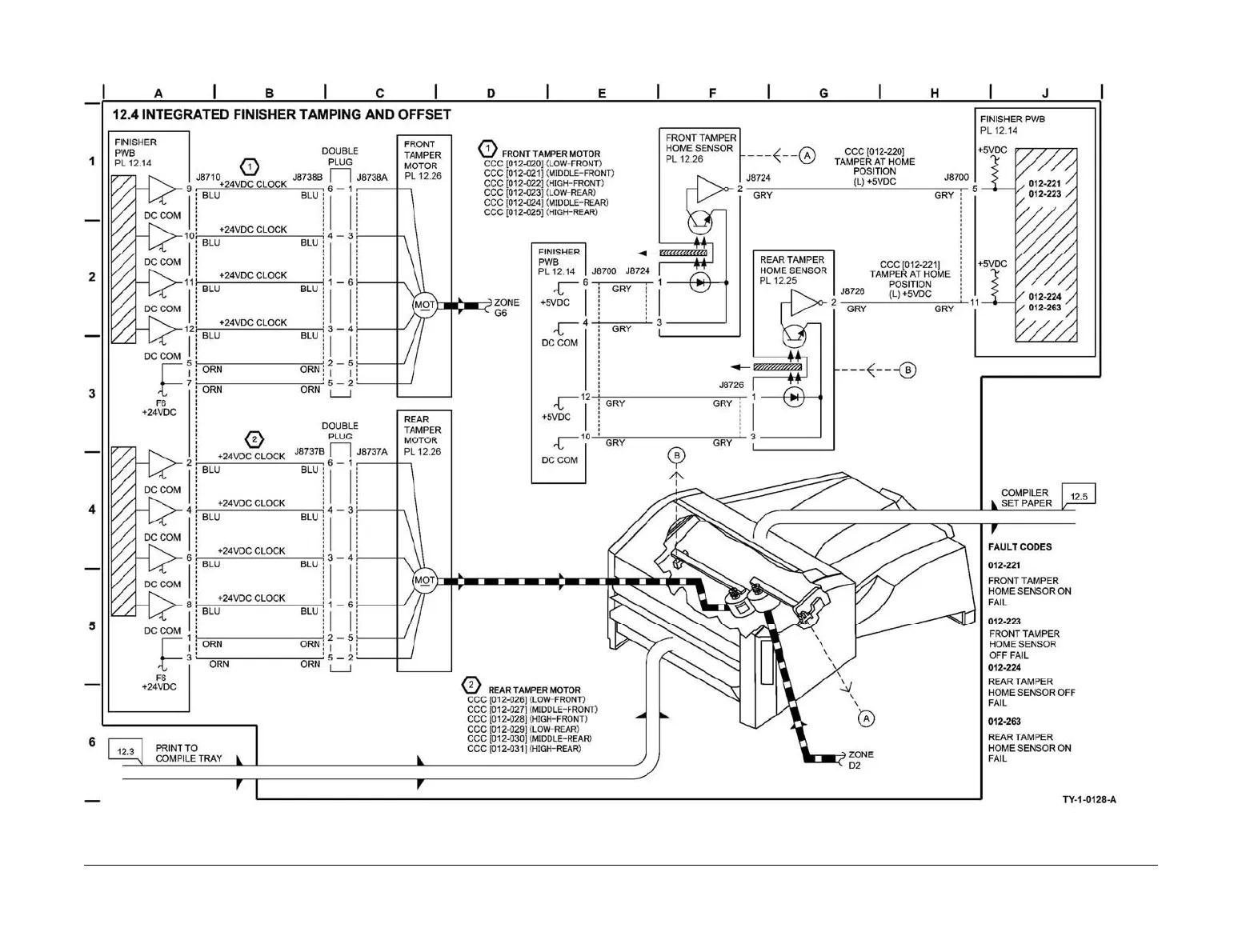

BSD 12.4 Integrated Office Finisher Tamping and Offset
Figure 90 BSD 12.4
