April 2017
7-154
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

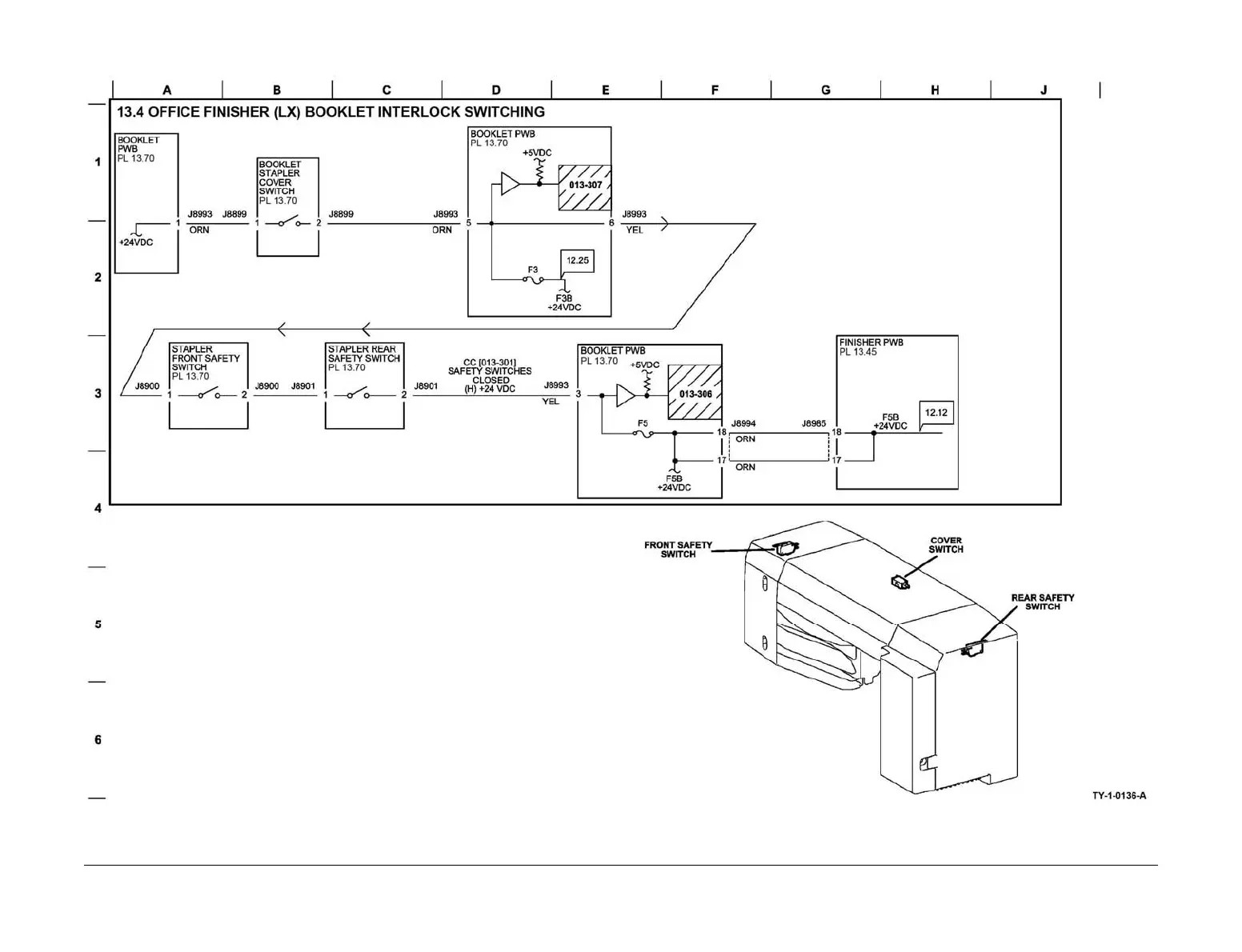

BSD 13.4 Office Finisher LX Booklet Interlock Switching
Figure 98 BSD 13.4
