April 2017
7-168
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

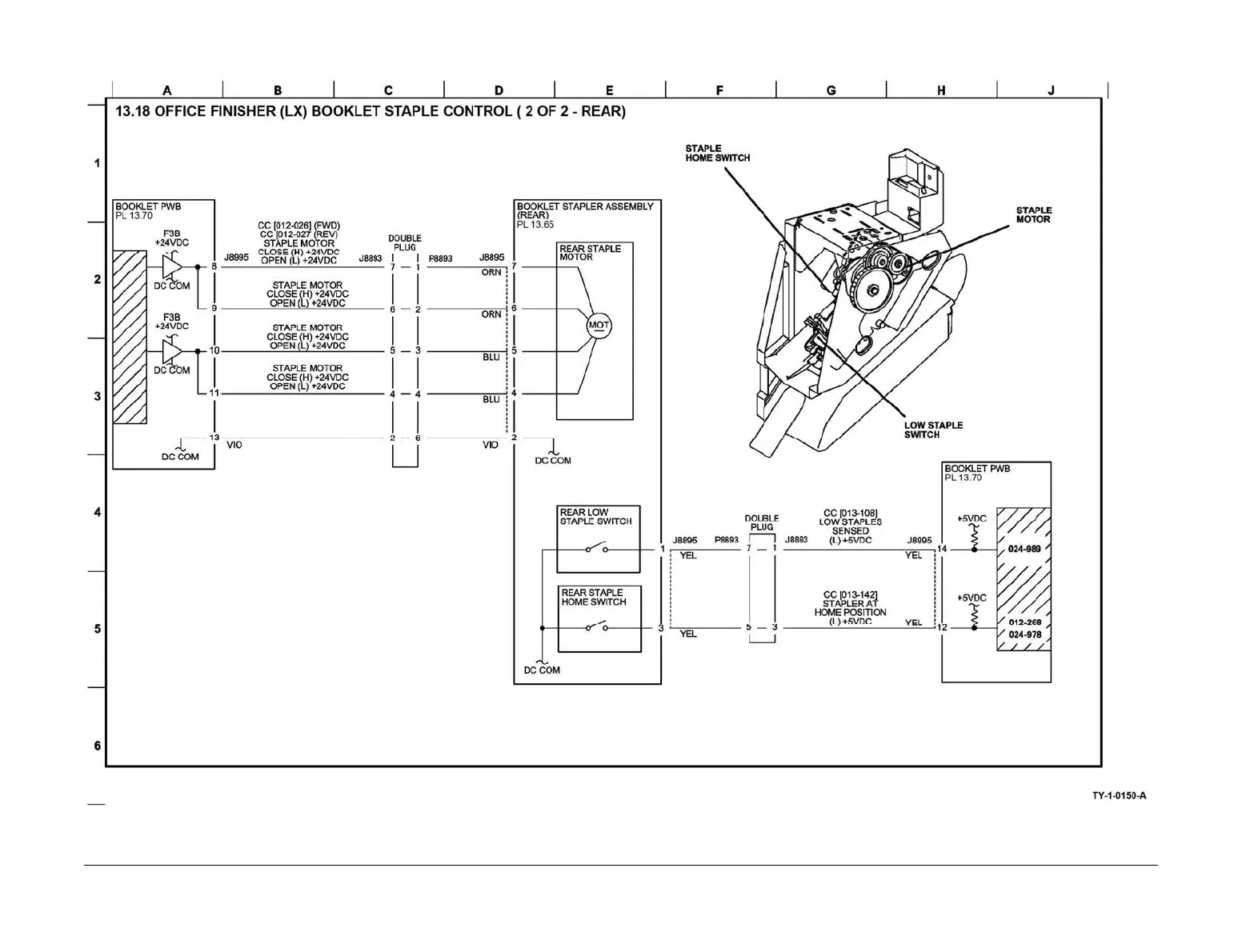

BSD 13.18 Office Finisher LX Booklet Staple Control (2 of 2 - Rear)
Figure 112 BSD 13.18
