Xerox VersaLink B7025 Service Manual

April 2017
8-8
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Left Lower Cover Interlock
The left lower cover switch is supplied with +5VDC power from the drive PWB via the tray mod-
ule PWB, which also monitors its status.
When the left lower cover switch opens the machine declares a fault tray module cover open,
inhibits printing, and displays a message to close the cover.
The interlock is in a similar position in the optional paper input modules listed here. Figure 6.
shows the TTM as an example. Refer to the parts list for more information.
• TTM PL 70.95 Item 18.
•1TM PL 80.15 Item 3.
•3TM PL 80.30 Item 8.
Refer to BSD 1.9 Power Interlock Switching (2 of 3)

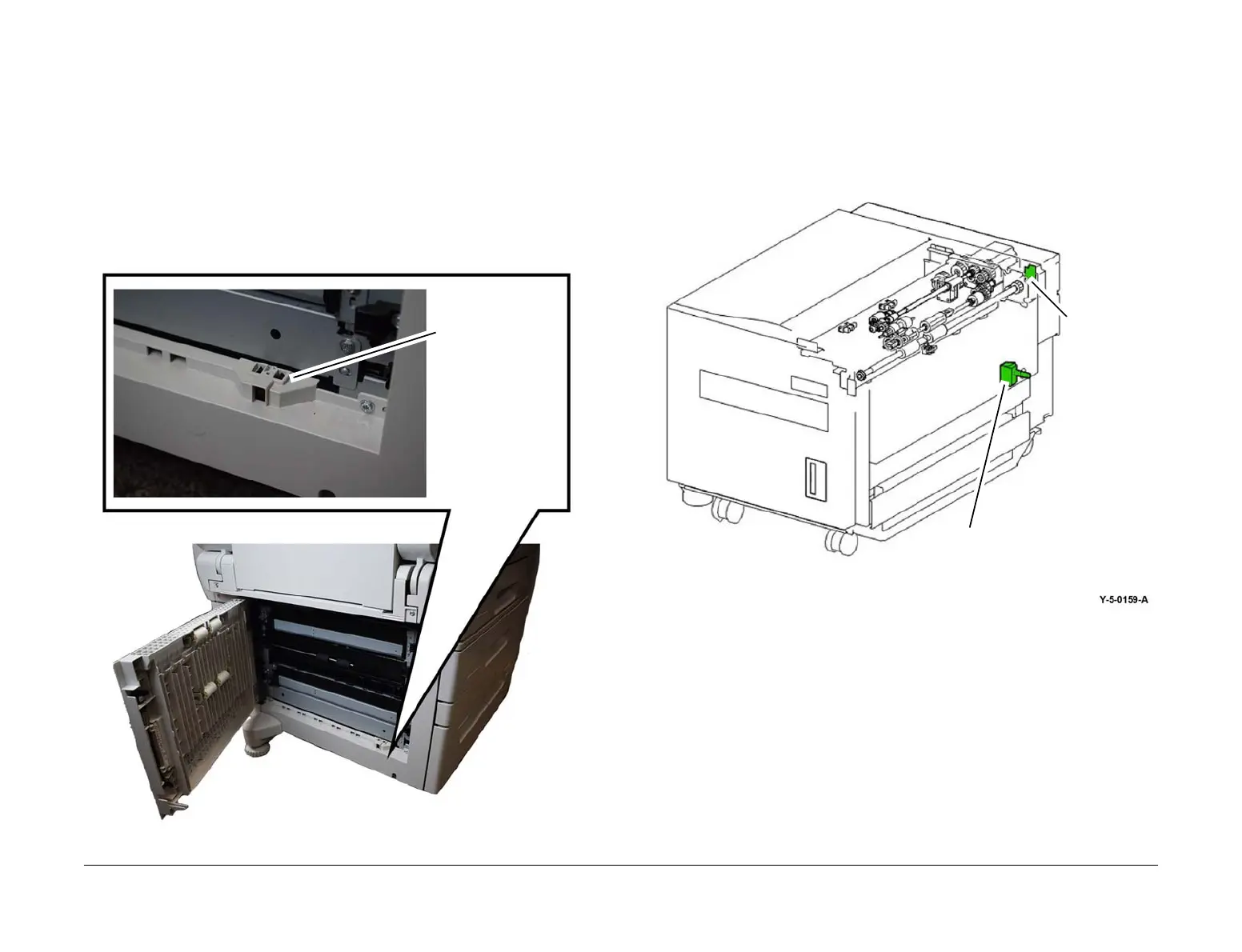

Figure 6 Left lower cover interlock
HCF Interlocks
The high capacity feeder is fitted with 2 interlocks:
• Top cover interlock, PL 70.55 Item 26.
• HCF slide out switch, PL 70.60 Item 8.
Refer to BSD 1.11 DC Power Distribution - HCF and Figure 7.
Figure 7 HCF interlocks
Left lower cover
interlock recess
HCF slide out switch
Top cover
interlock

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
